What does a gate anti-sag cable kit do?

It provides adjustable diagonal support that helps keep a swing-gate frame square and reduces downward sag at the latch side.

Which gates can use this kit?

It is designed for framed aluminum single swing gates and double swing gate leaves, especially wide or long gates that benefit from diagonal support.

How many kits do I need for a double swing gate?

Use one kit for each gate leaf that requires support. A two-leaf gate may therefore require two kits.

Can the cable be shortened?

Yes. Cut the 20-foot cable to the required length and use the included aluminum sleeve to form and secure the finished loop.

Will it repair damaged hinges or a loose frame?

No. Damaged hinges, loose fasteners, weak posts, or frame damage must be corrected before the cable is tensioned.

One 20-foot stainless cable with connected turnbuckle, two 3/8″ × 4″ 304 stainless eye bolts with nuts and washers, and one 5/32″ aluminum double-barrel crimp sleeve.

Are all parts stainless steel?

The cable, turnbuckle, eye bolts, nuts, and washers are stainless steel. The cable crimp sleeve is aluminum.

Where should the cable be installed?

Run it diagonally from the lower hinge-side corner to the upper latch-side corner so it supports the free end of the gate.

How is tension adjusted?

Square the gate first, then rotate the turnbuckle in small increments until the cable is firm. Do not overtighten.

What tools are needed?

Installation generally requires a drill and bits, wrenches, measuring tools, a wire-rope cable cutter, and a crimping or swaging tool suitable for the sleeve.

Can it be used outdoors?

Yes. The supplied cable and primary hardware are stainless steel, and the crimp sleeve is aluminum. Inspect the assembly periodically.

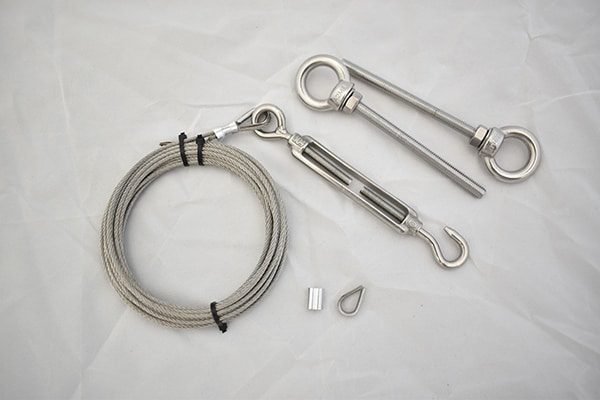

Complete 20-foot stainless steel gate anti-sag cable kit with turnbuckle, two eye bolts, and aluminum crimp sleeve

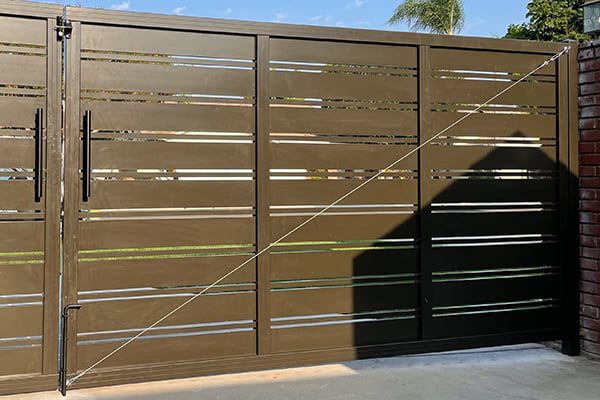

Stainless steel anti-sag tension cable installed diagonally on a swing gate frame

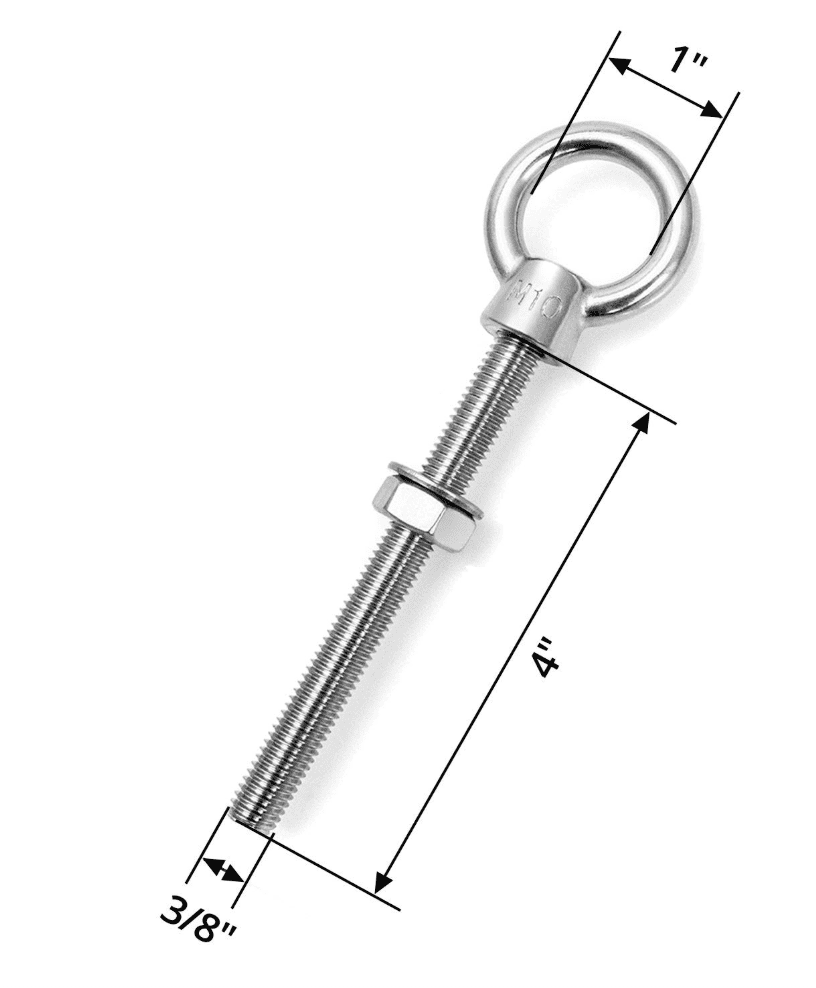

Dimension diagram for 3/8-inch by 4-inch stainless steel eye bolt

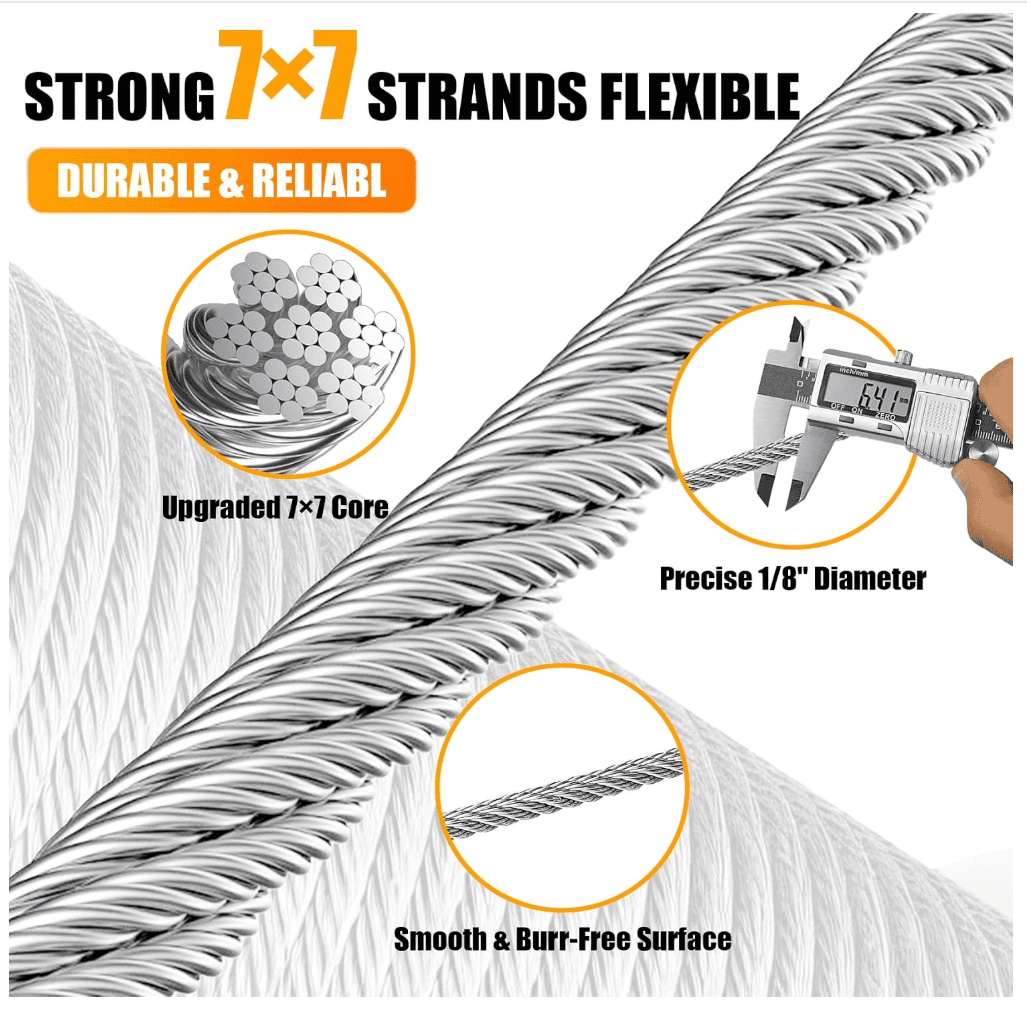

Close-up of flexible 7 by 7 strand stainless steel wire cable construction

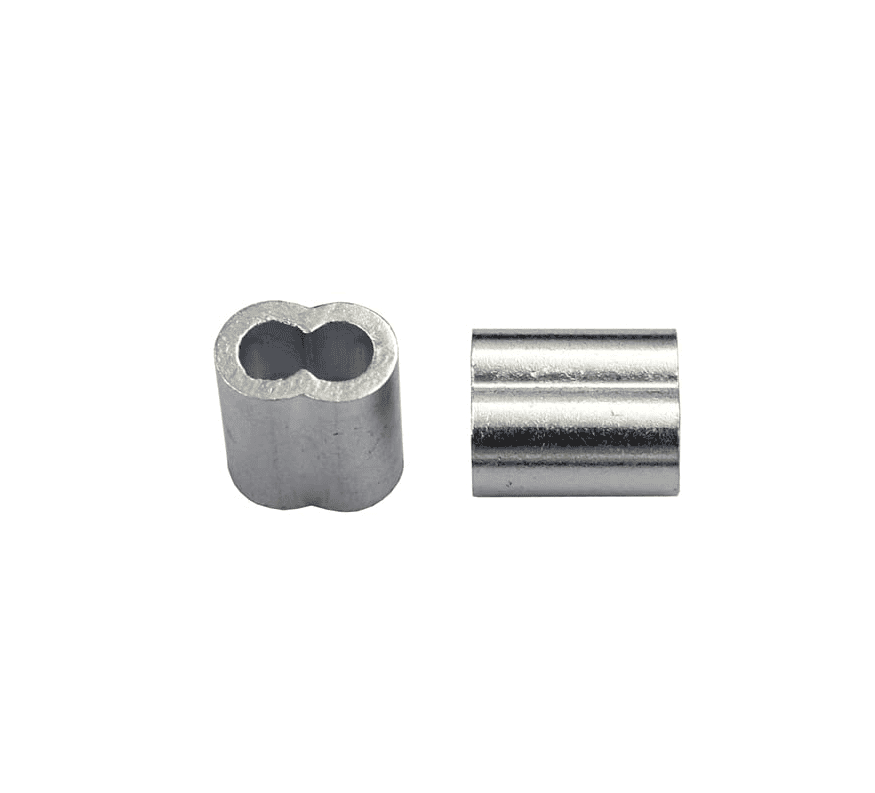

Aluminum double-barrel cable crimp sleeve for adjusting gate anti-sag cable length

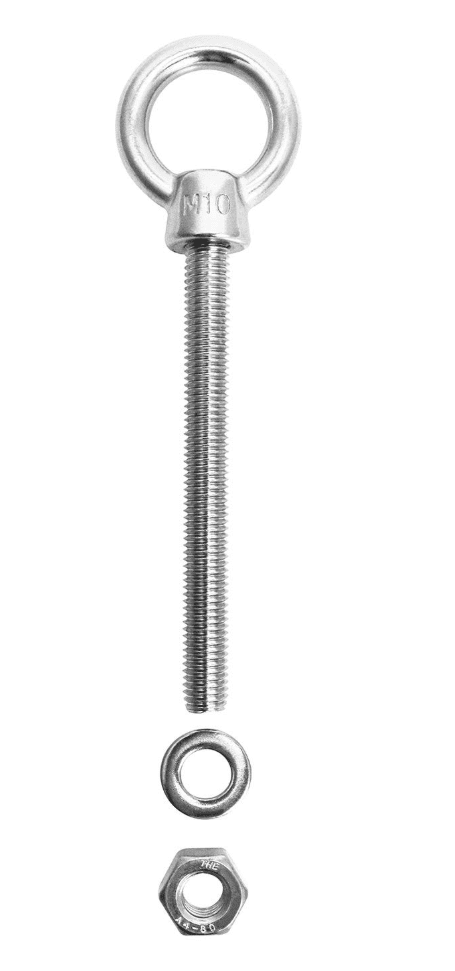

304 marine-grade stainless steel eye bolt with nut and washer

20-Foot Stainless Steel Gate Anti-Sag Cable Kit

0 (0) Reviews

Adjustable stainless steel anti-sag cable kit for aluminum swing gates. Includes a 20′ cable with connected turnbuckle, two 3/8″ × 4″ 304 stainless steel eye bolts, and one 5/32″ aluminum crimp sleeve.

STARTING AT $91.45

WHAT’S INCLUDED:

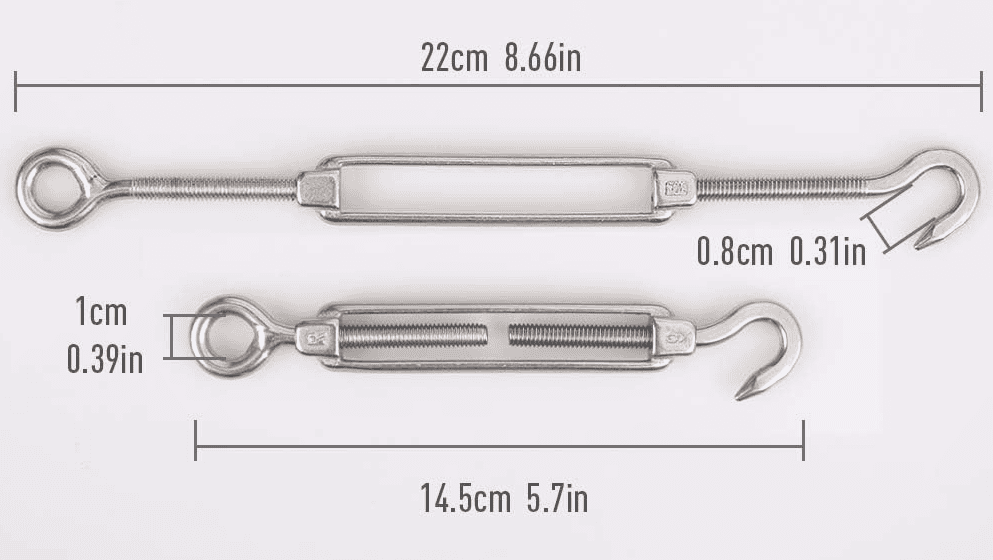

One 20′ stainless steel cable with connected stainless steel hook-and-eye turnbuckle
Two 3/8″ × 4″ 304 marine-grade stainless steel eye bolts with nuts and washers
One 5/32″ aluminum double-barrel cable crimp sleeve

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

The 20-Foot Stainless Steel Gate Anti-Sag Cable Kit provides adjustable diagonal support for wide and long aluminum swing gates. Installed from the lower hinge-side corner to the upper latch-side corner, the tensioned cable helps keep the gate frame square and reduces sag at the free end.

The cable can be cut to the exact length required. The connected turnbuckle provides precise tension adjustment, while two 3/8″ × 4″ 304 marine-grade stainless steel eye bolts create secure mounting points. Every supplied component is stainless steel except the 5/32″ aluminum double-barrel crimp sleeve used to secure the field-cut cable loop.
