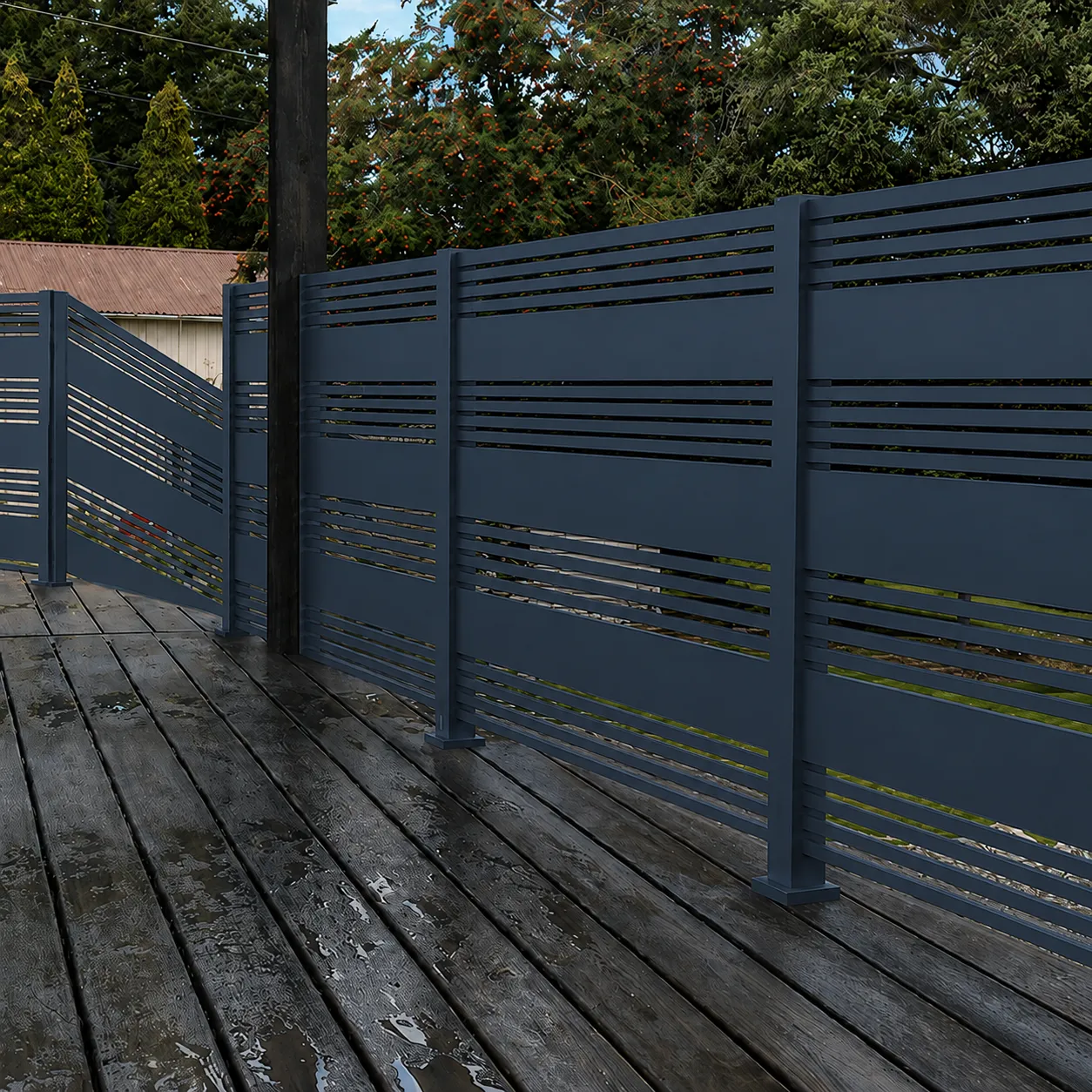

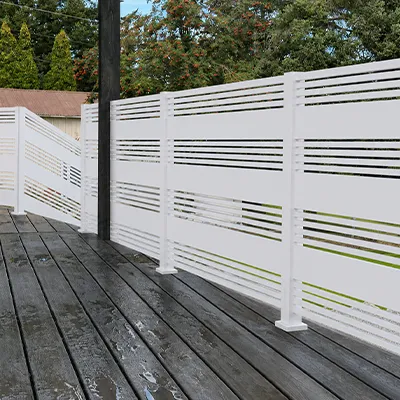

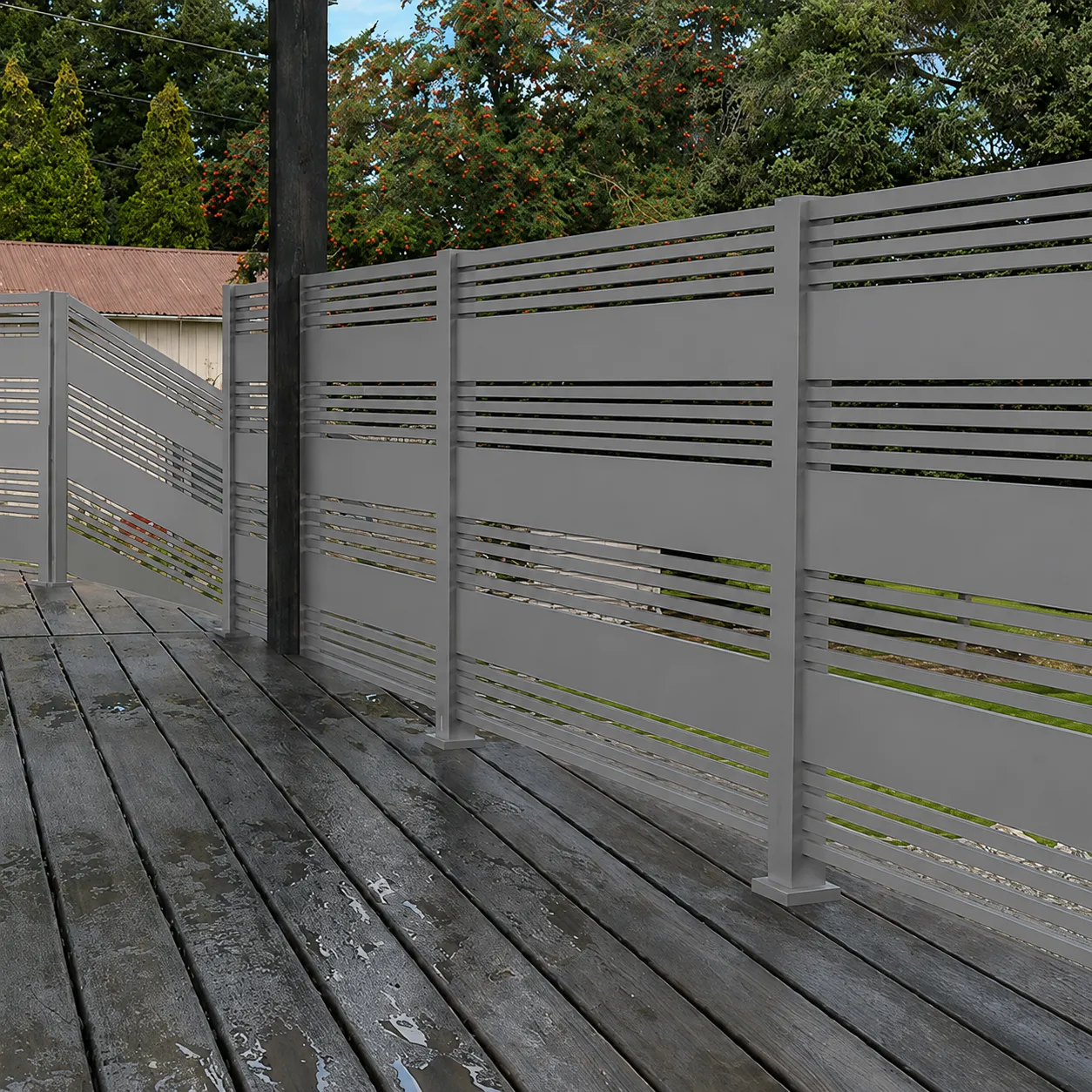

Balcony Railing System Planning – Las Vegas Style
Planning a balcony railing system? Compare the Las Vegas Style aluminum design and its mixed-width horizontal slats. Review the configuration, sightlines and mounting approach alongside the structural and safety requirements for your balcony.
Select your run length, finish, mounting method and optional top rail. Review the drawings and project requirements before ordering.
STARTING AT $697.70
What’s Included in Your Kit
| Item name | Item details | Length | Quantity |
|---|
Balcony Railing System Planning – Las Vegas Style
Planning a balcony railing system? Compare the Las Vegas Style aluminum design and its mixed-width horizontal slats. Review the configuration, sightlines and mounting approach alongside the structural and safety requirements for your balcony.
- Finished railing height: designed for approximately 40–42 inches above the walking surface when installed and field-adjusted correctly
- Modular layout: planned in nominal 4-foot sections with posts typically laid out at 48-inch centers
- Mounting choices: Base Mount or Side Mount—choose according to the supporting structure and approved anchor plan
- Project-ready appearance: powder-coated aluminum components with concealed post channels, snap covers and matching caps
- Optional top rail: add the Aluminum Side Post profile as a continuous top cap where desired and permitted
Before ordering: confirm the total run, post locations, corners and ends, substrate, attachment method, finished height and local code requirements. Field cutting, structural blocking and site-specific anchors may be required.
Planning your balcony railing system
For an elevated balcony, the complete guard design and attachment to the building need project-specific review. Check required height, openings, loads, edge conditions, waterproofing and the supporting structure. Catalog dimensions are planning information; confirm the complete system’s suitability for your balcony before ordering.
Compare all aluminum railing kits, review this style’s Technical Specifications and selected contents, or send Alumission your measurements for configuration help.
WHAT’S INCLUDED:
What’s Included
Quantities below describe one nominal 4-foot Las Vegas railing module. Complete runs also require a terminal post at the end, so final post count depends on layout.
Las Vegas slat schedule per 4-foot module
- 4 × 5.5-inch aluminum slats, each cut for one nominal 4-foot railing module
- 12 × 1-inch aluminum slats, each cut for one nominal 4-foot railing module
- Aluminum spacer pieces sized for the 1/2″ layout
- Stainless steel #6 × 1/2-inch self-drilling assembly screws; one 25-piece pack is planned for each 24 aluminum slats
Posts and trim
- One structural aluminum post per 4-foot module, plus one terminal post at the end of the run
- Two aluminum snap-on channel covers and one matching post cap for each post
Mounting-method components
| Method | Included post hardware |
|---|---|
| Base Mount | 4-foot aluminum post, one 18-inch zinc-coated steel post base and one aluminum base cover per post |
| Side Mount | 5-foot aluminum post stock to provide the lower structural extension; base plate and base cover are not used |
Optional: Aluminum Side Post profile may be used as a top rail; plan one 4-foot piece per module, subject to field cuts and layout.
Not included: substrate-specific anchors, structural blocking, waterproofing sealant, cutting or drilling tools, permits, engineering, or installation labor.
