Alumission Aluminum Wall Topper Kit Los Angeles Style
STARTING AT $210.00
Los Angeles Style Aluminum Wall Topper Kit
Add height, privacy and clean modern lines above an existing wall with a complete Alumission Los Angeles Style wall topper. The design uses 5.5-inch horizontal aluminum slats separated by consistent 1/2-inch gaps.
- Seven heights: 1′, 1.5′, 2′, 2.5′, 3′, 3.5′ and 4′.
- 6-foot modular spans: one post per span plus one terminal post at the end of the run.
- Concealed base fasteners: a color-matched aluminum base cover hides the screws or anchors securing each steel base plate.
- Coordinated finish: posts, slats, caps, channel covers and base covers are supplied in matching powder-coated colors.
- Field-fit installation: verify site dimensions and cut components where required for the final layout.
Before ordering: confirm total run length, selected height, wall construction, post locations, anchor plan, finish and local requirements.
WHAT’S INCLUDED:
- Aluminum Post 2 Channels at the selected height: one post per 6-foot span, plus one terminal post at the end of the run
- 2 aluminum channel covers and 1 matching cap for each post
- 1 zinc-coated steel Post Base 18″ and 1 Aluminum Base Cover for each post
- 6-foot horizontal aluminum slats in the size-specific quantities below
- 1/2-inch aluminum spacers for the selected slat pattern
- Stainless steel self-drilling assembly screws supplied for the selected kit
Exact 6-foot-span material schedule
| Height | 5.5″ slats | 2.5″ slats | 1″ slats | Min. 1/2″ spacer pieces | Each slat |
|---|---|---|---|---|---|
| 1′ | 2 | — | — | 2 | 6′ |
| 1′ 6″ | 3 | — | — | 4 | 6′ |
| 2′ | 4 | — | — | 6 | 6′ |
| 2′ 6″ | 5 | — | — | 8 | 6′ |
| 3′ | 6 | — | — | 10 | 6′ |
| 3′ 6″ | 7 | — | — | 12 | 6′ |
| 4′ | 8 | — | — | 14 | 6′ |
Not included: anchors for the existing wall, cutting and drilling tools, drill bits, sealant, or structural engineering. Select anchors for the actual wall material and project conditions.
Box Weight
Box Dimension
TECHNICAL SPECIFICATIONS & INSTALLATION
Los Angeles Style Aluminum Wall Topper Kit
Add height, privacy and clean modern lines above an existing wall with a complete Alumission Los Angeles Style wall topper. The design uses 5.5-inch horizontal aluminum slats separated by consistent 1/2-inch gaps.
- Seven heights: 1′, 1.5′, 2′, 2.5′, 3′, 3.5′ and 4′.
- 6-foot modular spans: one post per span plus one terminal post at the end of the run.
- Concealed base fasteners: a color-matched aluminum base cover hides the screws or anchors securing each steel base plate.
- Coordinated finish: posts, slats, caps, channel covers and base covers are supplied in matching powder-coated colors.
- Field-fit installation: verify site dimensions and cut components where required for the final layout.
Before ordering: confirm total run length, selected height, wall construction, post locations, anchor plan, finish and local requirements.
What’s Included
- Aluminum Post 2 Channels at the selected height: one post per 6-foot span, plus one terminal post at the end of the run
- 2 aluminum channel covers and 1 matching cap for each post
- 1 zinc-coated steel Post Base 18″ and 1 Aluminum Base Cover for each post
- 6-foot horizontal aluminum slats in the size-specific quantities below
- 1/2-inch aluminum spacers for the selected slat pattern
- Stainless steel self-drilling assembly screws supplied for the selected kit
Exact 6-foot-span material schedule
| Height | 5.5″ slats | 2.5″ slats | 1″ slats | Min. 1/2″ spacer pieces | Each slat |
|---|---|---|---|---|---|
| 1′ | 2 | — | — | 2 | 6′ |
| 1′ 6″ | 3 | — | — | 4 | 6′ |
| 2′ | 4 | — | — | 6 | 6′ |
| 2′ 6″ | 5 | — | — | 8 | 6′ |
| 3′ | 6 | — | — | 10 | 6′ |
| 3′ 6″ | 7 | — | — | 12 | 6′ |
| 4′ | 8 | — | — | 14 | 6′ |
Not included: anchors for the existing wall, cutting and drilling tools, drill bits, sealant, or structural engineering. Select anchors for the actual wall material and project conditions.
Technical Specifications
| Application | Surface-mounted aluminum wall topper installed above a structurally suitable existing wall |
|---|---|
| Style | Los Angeles Style — semi-private horizontal-slat design |
| Nominal span | 6′ between posts |
| Available heights | 1′, 1.5′, 2′, 2.5′, 3′, 3.5′ and 4′ |
| Slat length | 6′ supplied length; verify final field-cut requirement |
| Main post | Aluminum Post 2 Channels; 3.5″ × 1.752″ nominal cross-section |
| Post base | 4″ × 4″ × 1/8″ steel plate with 1.25″ × 1.25″ × 18″ zinc-coated steel stem |
| Base cover | 4.375″ × 4.375″ × 1″ aluminum cover with 1.310″ square center opening |
| Spacing | 1/2-inch aluminum spacers between slats |
| Finish options | Black, Bronze, White, Dark Grey, Light Gray and Wood, subject to current availability |
| Assembly | Mechanical field assembly; accurate measuring, cutting, drilling, leveling and anchoring required |
Installation overview
- Confirm the wall and anchor system are suitable for the planned post loads.
- Lay out each nominal 6-foot span and verify every field measurement before cutting.
- Anchor each steel base plate with fasteners selected for the actual wall material and conditions.
- Place the aluminum base cover over the anchored plate and 18-inch stem, then slide the aluminum post over the stem.
- Plumb and align the posts; install the slats in the size-specific Los Angeles pattern and add spacers where specified.
- Fasten the slats inside the channels, snap the covers into place to conceal assembly screws, and install the post caps.

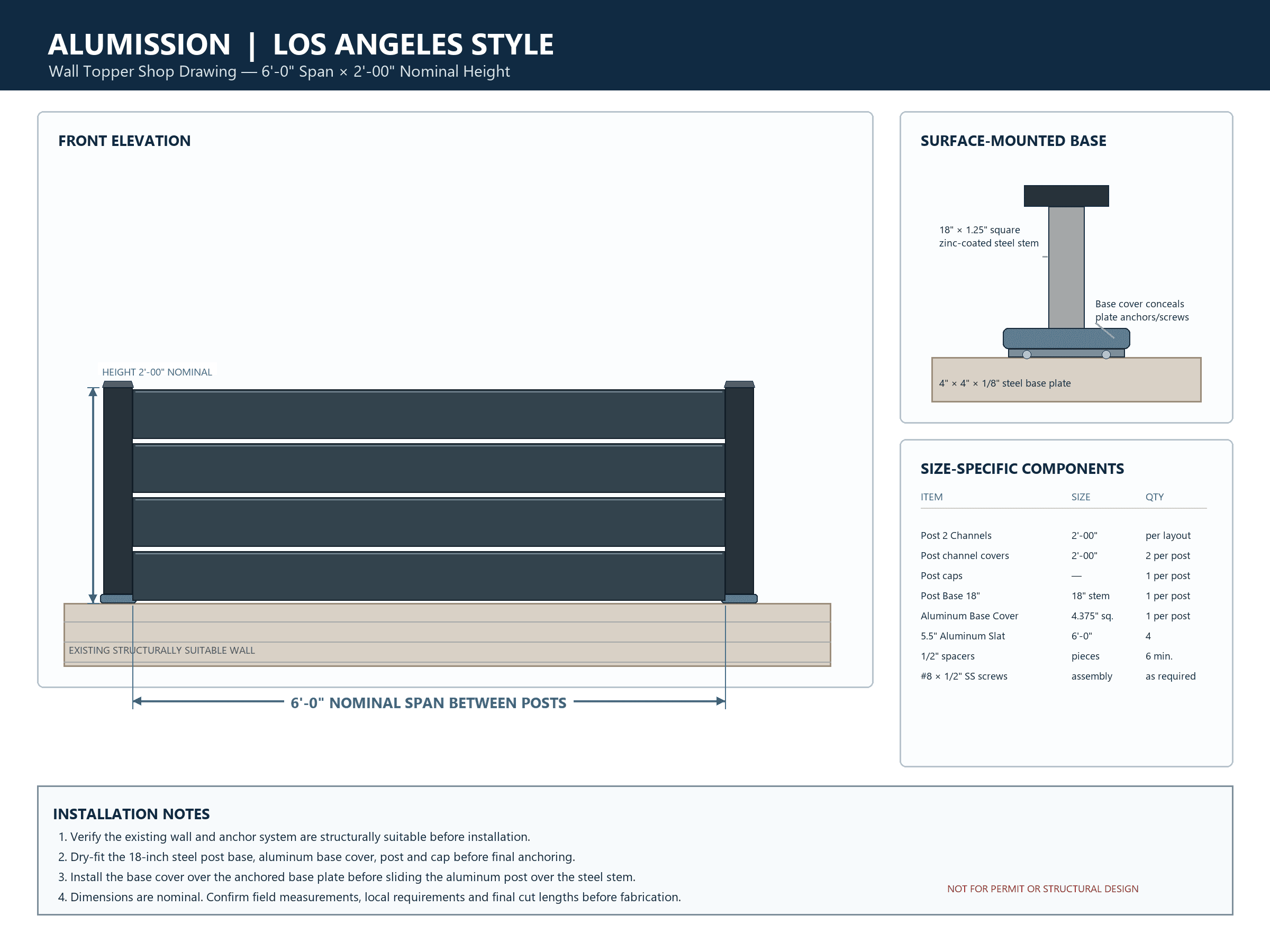

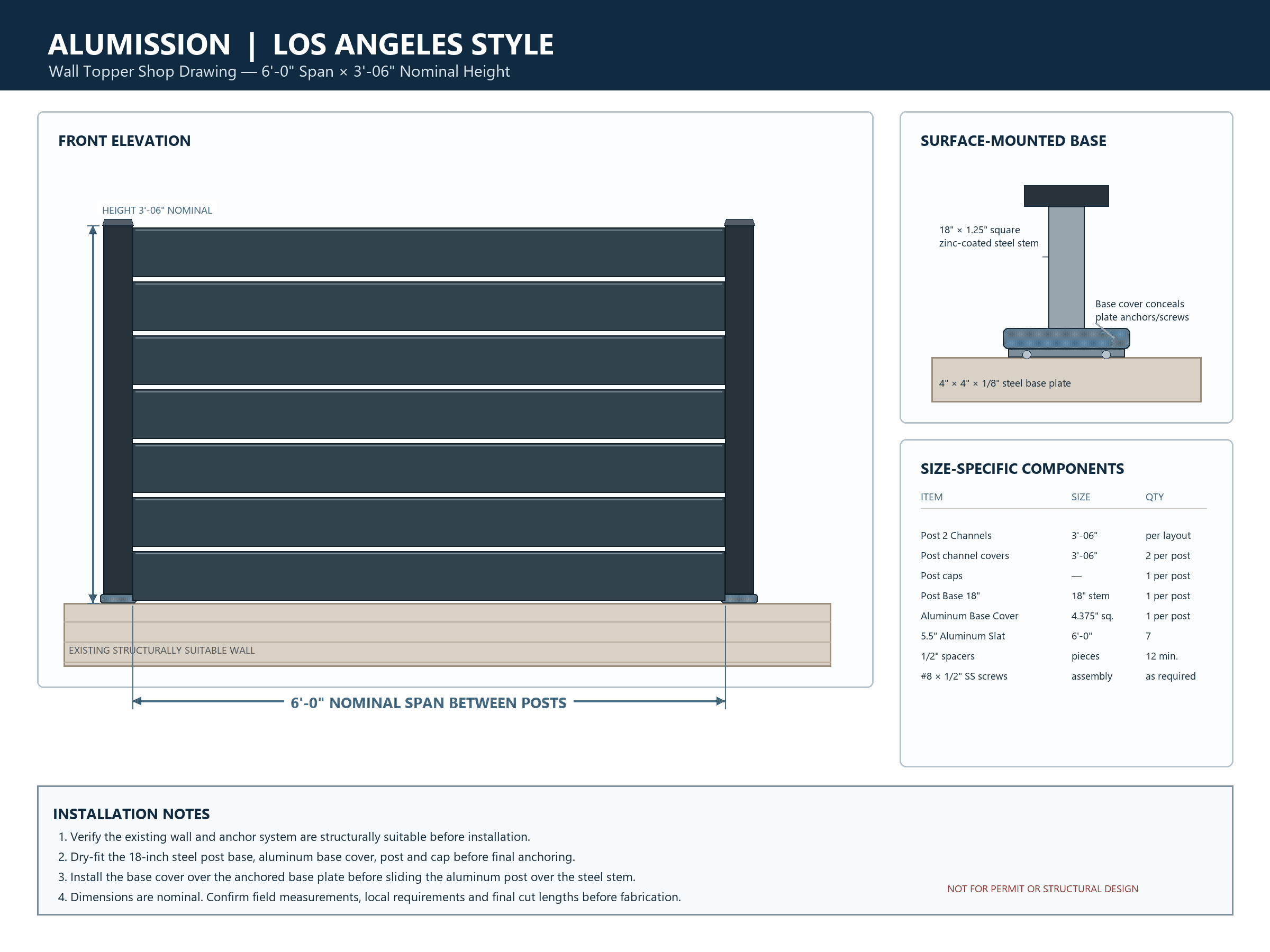

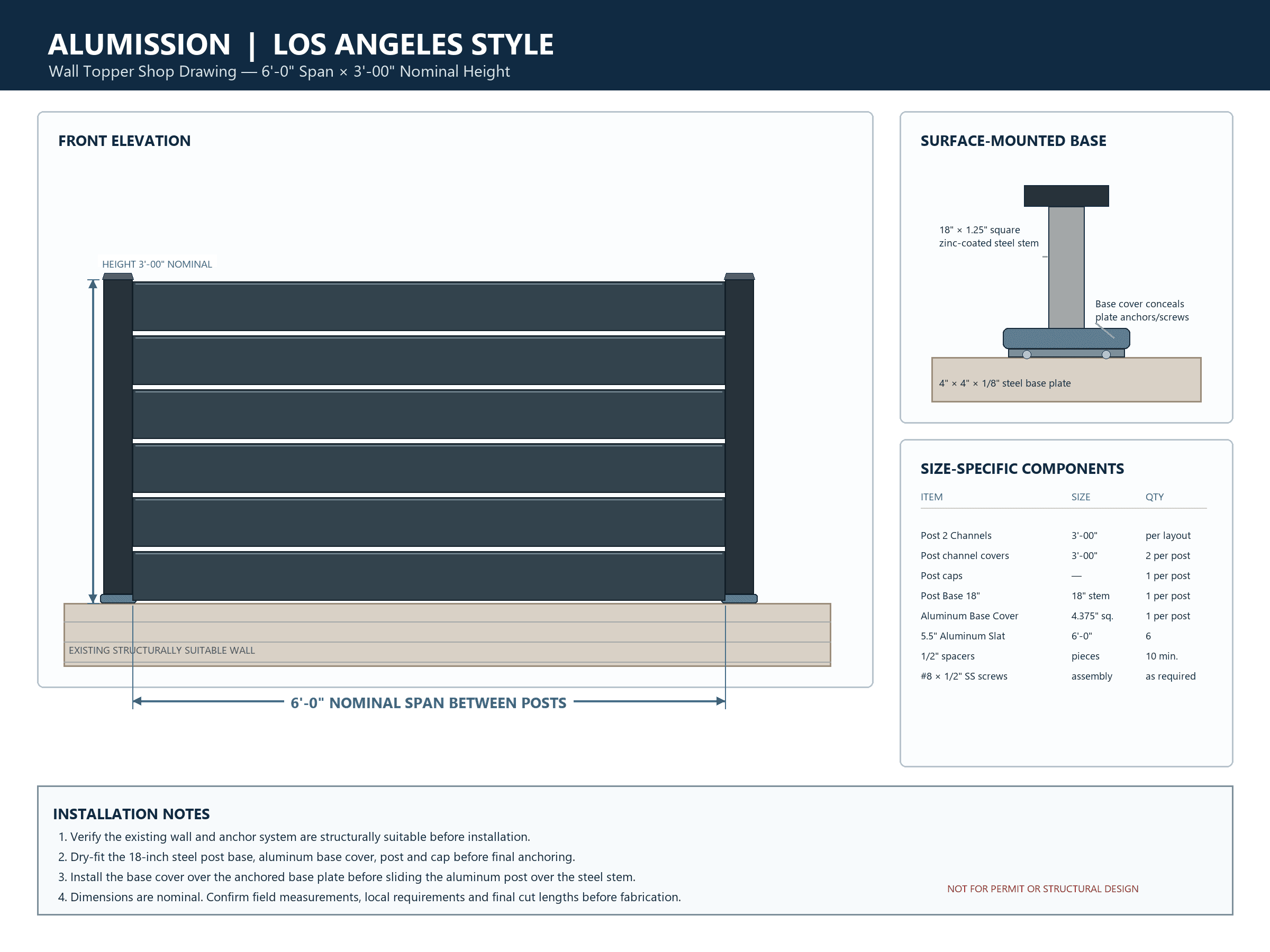

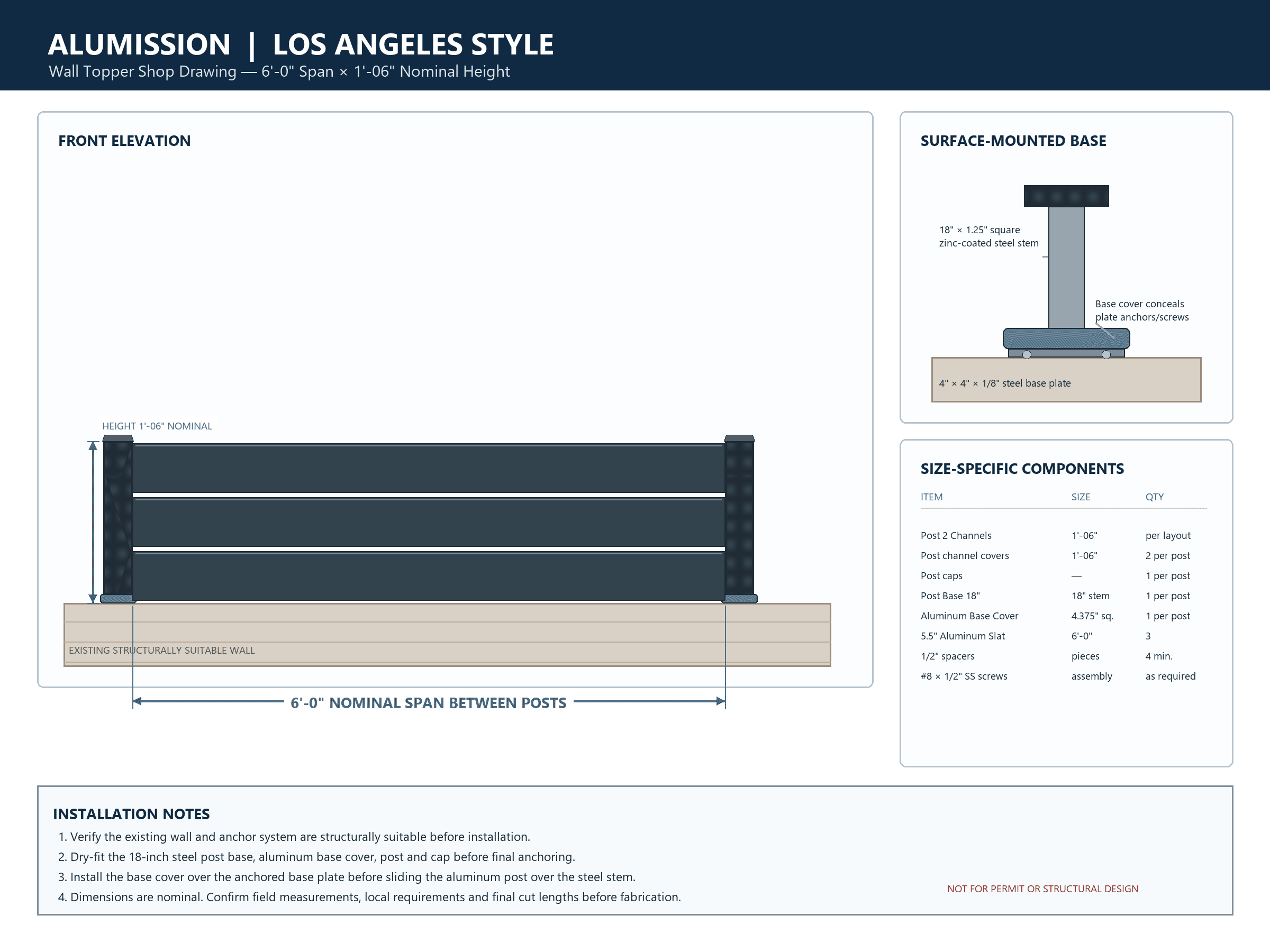

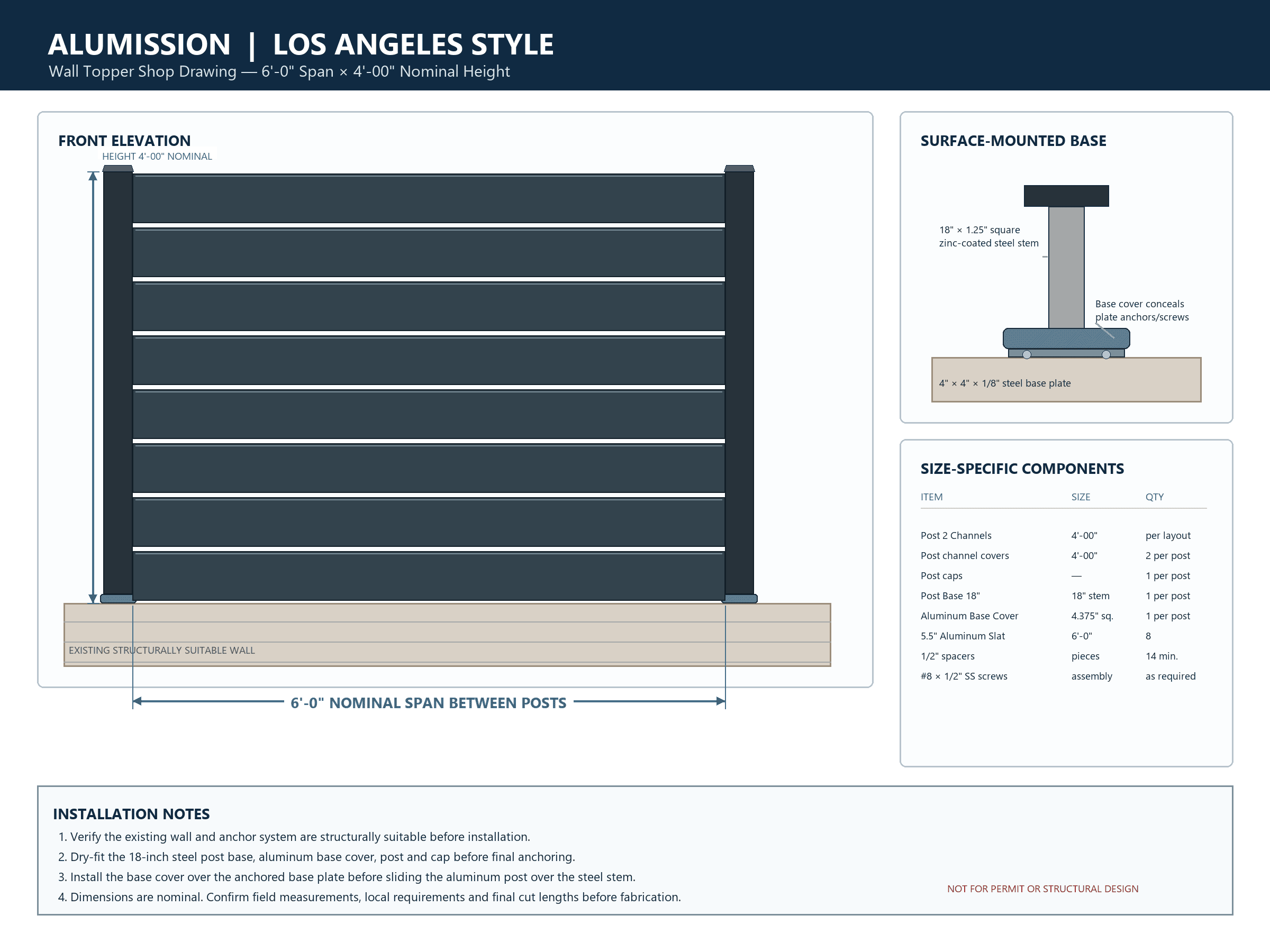

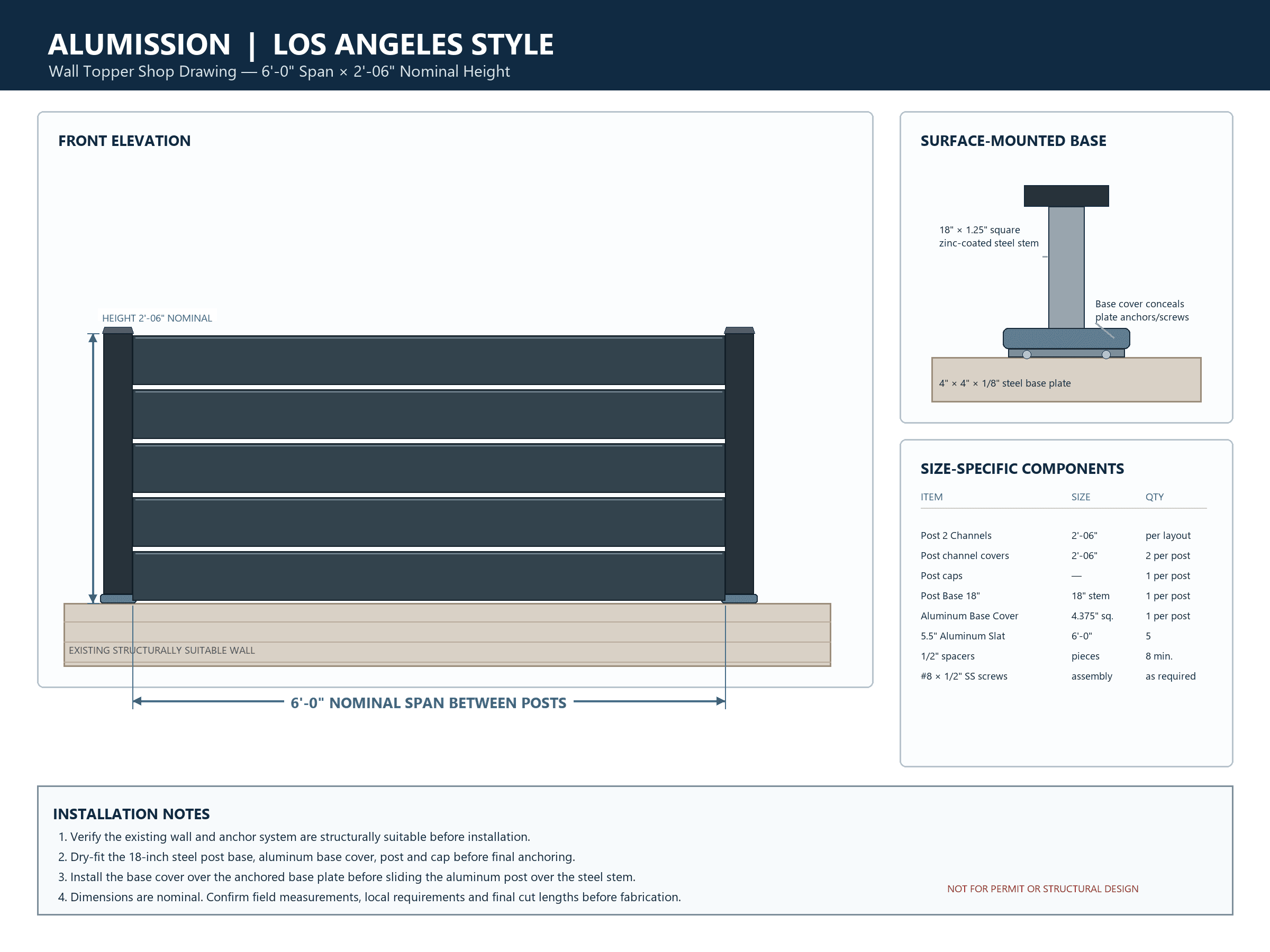

Important: drawings and nominal dimensions support product selection and installation planning; they are not stamped structural or permit drawings.
Questions & Answers
Find clear answers about Wall Topper sizing, 6-foot spans, included components, base-plate installation, concealed fasteners, style differences, finishes, maintenance and field fitting.
Sizing & Planning
What span is the aluminum Wall Topper designed for?
Each Wall Topper section is designed around a nominal 6-foot span between posts. The supplied horizontal slats are 6 feet long. Verify the actual field measurement before cutting, and plan one post per span plus one terminal post at the end of the run.
Which Wall Topper heights are available?
All five Wall Topper styles are offered in seven nominal heights: 1 foot, 1 foot 6 inches, 2 feet, 2 feet 6 inches, 3 feet, 3 feet 6 inches, and 4 feet. Select the height that fits the project, then review the exact style-specific material schedule shown on the product page.
How do I plan a multi-span Wall Topper run?
Divide the finished run into nominal 6-foot sections. Use one post for each span and add one terminal post at the end of the run. Confirm corners, end conditions, wall steps, field cuts, post locations, and local requirements before ordering.
How do I measure an existing wall for a Wall Topper?
Measure the total finished run, each individual wall section, corners, steps, end conditions, and the usable mounting surface. Mark proposed post locations and check for caps, slopes, drains, utilities, or other obstructions. Use actual field measurements—not only nominal wall dimensions—before ordering or cutting.
Can the 6-foot Wall Topper slats be cut for a shorter span?
Yes. The aluminum slats are supplied in 6-foot lengths and may be field cut to fit a shorter verified opening. Use suitable cutting equipment, keep cuts square, remove burrs, protect the finish, and confirm the finished post-to-post dimension before cutting.
Kit Contents & Style Options
What is included with an Alumission Wall Topper kit?
The selected kit includes Aluminum Post 2 Channels, two channel covers and one cap per post, an 18-inch zinc-coated steel post base and matching aluminum base cover per post, 6-foot aluminum slats in the selected style and height, the required pattern spacers where applicable, and stainless steel self-drilling assembly screws. Wall anchors are not included because the correct fastener depends on the wall material and project conditions.
How do Dallas, Los Angeles, Miami, New York, and San Francisco styles differ?
Dallas combines wide 5.5-inch slats with a four-slat 1-inch accent band. Los Angeles uses evenly spaced 5.5-inch slats. Miami centers a four-slat 1-inch accent band between wide slats. New York is a tight-stacked full-privacy design with size-specific finishing slats. San Francisco uses closely spaced 1-inch slats for a linear look. See the exact material schedule and proportional drawings on each style page.
Is the Wood finish real wood?
No. The Wood option is a wood-look finish applied to aluminum slats, not natural timber. It provides the warmth of a wood appearance while keeping the low-maintenance, noncombustible aluminum construction of the Wall Topper system.
How much privacy does an aluminum Wall Topper add?
Privacy depends on the selected style, height, slat sizes, and spacing. New York is the most closed design, while Dallas, Los Angeles, Miami, and San Francisco create different levels of screening and visibility. Compare the style-specific drawings and material schedule before choosing.
Installation & Mounting
How do the base plate and base cover work?
Each post uses a zinc-coated steel base with a 4-inch by 4-inch plate and an 18-inch stem. The plate is anchored to a structurally suitable wall, the aluminum base cover slides over the plate to conceal the mounting screws or anchors, and the aluminum post slides over the steel stem. Plumb and align every post before installing the slats.
Can the Wall Topper be installed on concrete, masonry, wood, or steel?
Installation may be possible on concrete, masonry, properly reinforced wood, steel, or another structurally suitable wall when the correct substrate-specific anchors are used. Anchors are not included. The installer is responsible for confirming wall condition, edge distances, waterproofing, fastener selection, wind exposure, loads, and code or permit requirements.
Are anchors for the existing wall included?
No. Wall anchors are not included because the correct fastener and embedment depend on the wall material, wall condition, edge distances, loads, and site exposure. Select an anchor system specifically approved for the actual substrate and project conditions.
How do I know whether my wall can support a Wall Topper?
The existing wall and its foundation must be structurally suitable for the planned topper, anchors, height, and site loads. Inspect the wall for cracks, loose caps, deterioration, insufficient thickness, or other damage. When suitability is uncertain, have a qualified contractor or design professional evaluate it before installation.
Care, Ordering & Support
Does the Wall Topper require welding?
No welding is required for the kit assembly. Installation is a mechanical field-fit process that requires accurate measuring, cutting, drilling, leveling, fastening, and anchoring. Channel covers snap into place after assembly to conceal the slat-fastening screws.
Which finishes are available, and how should the Wall Topper be maintained?
Current finish options may include Black, Bronze, White, Dark Grey, Light Gray, and Wood. Availability can change by configuration. Clean powder-coated aluminum with water, mild soap, and a soft cloth; avoid abrasive pads, harsh chemicals, and tools that can scratch the finish.
What should I verify before ordering?
Confirm the total run length, selected style and height, number of 6-foot spans, post and terminal locations, corners or steps, wall construction, anchor plan, finish, field-cut requirements, access, wind exposure, and local rules. Product drawings support selection and installation planning but are not stamped structural or permit drawings.
Can a Wall Topper follow a stepped or sloped wall?
A stepped wall can often be planned as separate level sections with post locations and field cuts coordinated at each change in elevation. A continuously sloped wall requires a custom layout. Measure every section carefully and confirm the proposed arrangement with Alumission before ordering.
Do I need a permit or HOA approval for a Wall Topper?
Requirements vary by location and property. Check local height limits, setbacks, wind and structural rules, permit requirements, easements, and any HOA or architectural-review standards before ordering or installing. The product drawings are planning references, not stamped permit or structural drawings.
