Inline Fence Post
Use two opposite channels to receive slats from both sides of the post and continue a straight fence run.
Aluminum Post 3 Channel
0
(0)
Reviews
A three-channel aluminum fence post designed for inline and 90-degree corner layouts, with optional steel reinforcement and an unused channel that can support integrated lighting.
Price range: $107.66 through $167.95
The Aluminum Post 3 Channel is Alumission’s main fence post for clean inline runs and 90-degree corner conditions. The three integrated channels allow the same post profile to receive fence slats from opposite sides for an inline layout or from adjacent sides for a corner layout.
This post is designed for fence applications only. It is not intended to serve as a gate frame. Each slat channel provides a controlled receiving area for Alumission fence slats, while compatible snap covers can conceal fastening channels and create a finished architectural appearance.
The reinforced center cavity is sized to accept a 1-1/4″ × 1-1/4″ steel tube. The steel insert may be used where a compatible base-plate assembly or the project design requires internal reinforcement. For in-ground fence installations, the aluminum post may also be set directly into concrete without an internal steel tube when the footing and complete fence design are suitable for the site.
When two channels are used for an inline or corner fence connection, the remaining channel can support a built-in post-lighting design. Compatible lighting components and the post-cover light diffuser are sold separately, allowing the unused channel to become a clean integrated lighting feature.
Product Highlights
- Fence-only post for inline and corner layouts
- Three integrated slat channels
- Center cavity accepts 1-1/4″ × 1-1/4″ steel tube
- Suitable for direct concrete-set installations
- Unused channel can support built-in post lighting
- 6063-T6 aluminum extrusion
- Powder-coated for exterior durability
- Compatible snap covers conceal fastening channels
Common Applications
- Inline aluminum fence posts
- 90-degree fence corner posts
- In-ground concrete-set fence installations
- Compatible base-plate fence installations
- Internally reinforced fence-post assemblies
- Fence posts with integrated channel lighting
One Main Post for Inline Runs and Corners
The three-channel geometry gives fence builders two essential layout options while keeping the same post profile and finished appearance throughout the project.
Corner Fence Post
Use two adjacent channels to connect fence sections at a 90-degree corner.
Consistent System Appearance
Using the same main post for inline and corner locations helps keep dimensions, finishes, caps, and cover details consistent across the fence.
Fence Applications Only
This profile is designed as a fence post. Use Alumission’s dedicated gate-frame profiles when building swing or sliding gates.
Concrete Set, Steel Reinforced, or Base Mounted
Choose the post-support method according to the fence height, site exposure, footing design, local requirements, and the complete engineered assembly.
Direct Set in Concrete
The aluminum post can be embedded directly into a suitable concrete footing without an internal steel tube.
1-1/4″ Steel Insert
The center cavity accepts a 1-1/4″ × 1-1/4″ steel tube when internal reinforcement is required by the project design.
Base-Plate Assemblies
A compatible steel insert can be used with an appropriate base-plate installation when the post will be surface mounted.
Project-Specific Support
Final reinforcement, anchoring, footing size, and post spacing must match the installed fence, wind exposure, substrate, and local code.
Turn the Unused Channel into a Lighting Feature
Inline and corner layouts normally leave one of the three post channels open, creating an opportunity for a clean built-in lighting detail.
Dedicated Open Channel
Use the channel that is not carrying fence slats as the receiving area for compatible lighting components.
Diffused Finished Face
A compatible post-cover diffuser can close the lighting channel and create a clean illuminated surface.
Components Sold Separately
The diffuser cover, light source, wiring, transformer, controls, and electrical accessories are not included with the post.
Plan Before Installation
Coordinate the lighting layout, wiring route, weather protection, service access, and electrical requirements before setting or mounting the post.
Included: One Aluminum Post 3 Channel in the selected length and powder-coated finish.
Sold separately: Post cap, snap covers, post-cover light diffuser, lighting components, screws, base plate, 1-1/4″ × 1-1/4″ steel tube, anchors, reinforcement, and installation hardware.
Phone-order lengths: 10′ and 20′ lengths are available by phone order only. They cannot be purchased online, and shipping charges may apply.

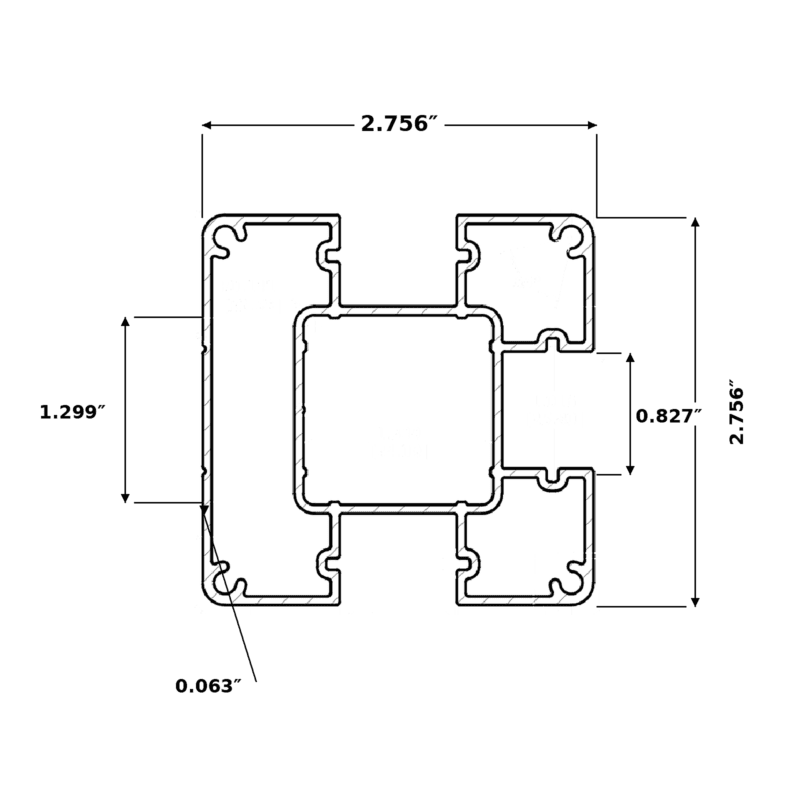

Aluminum Post 3 Channel
Cleaned cross-section and key dimensions for Alumission’s main inline and corner fence post.
Overall profile size
2.756″ × 2.756″
Channel depth
1.299″
Slat channel opening
0.827″
Center cavity
Accepts 1-1/4″ × 1-1/4″ steel tube with installation tolerance
Wall thickness
0.063″ nominal
Material
6063-T6 aluminum
Weight
Approximately 1.422 lb/ft
Primary application
Fence posts only
Fence layouts
Inline and 90-degree corner conditions
Lighting option
Unused channel accepts compatible lighting components and diffuser cover
Online lengths
6′ and 8′
Phone-order lengths
10′ and 20′
Finishes
Black, Bronze, White, Dark Grey, Light Gray
Measurement note: Dimensions are nominal. Standard aluminum extrusion tolerances apply.
Aluminum Post 3 Channel Questions & Answers
Answers about inline and corner fence layouts, concrete-set and base-mounted installation, steel reinforcement, integrated lighting, compatible accessories, ordering, finishes, and maintenance.
Product Use & Fence Layouts
What is the Aluminum Post 3 Channel used for?
It is Alumission’s main fence post for inline fence runs and 90-degree corner conditions.
Can it be used as an inline fence post?
Yes. Use two opposite channels to receive slats from both sides and continue a straight fence line.
Can it be used as a corner post?
Yes. Use two adjacent channels to connect fence sections at a 90-degree corner.
Is this post designed for gates?
No. This profile is designed for fence applications only. Use Alumission’s dedicated gate-frame profiles for swing or sliding gates.
Does every channel need to hold fence slats?
No. Inline and corner layouts normally use two channels. The remaining channel can be closed with a compatible cover or planned for integrated lighting.
What is included with the post?
The product includes one Aluminum Post 3 Channel in the selected length and powder-coated finish. Caps, covers, lighting parts, reinforcement, bases, anchors, screws, and installation hardware are sold separately.
Installation & Reinforcement
Can the post be set directly in concrete?
Yes. The aluminum post can be embedded directly into a suitable concrete footing without an internal steel tube when the complete fence and footing design are appropriate for the site.
What size steel tube fits inside the post?
The reinforced center cavity accepts a 1-1/4″ × 1-1/4″ steel tube with installation tolerance.
Is the steel tube always required?
No. It is optional unless the base-plate assembly, project design, site conditions, or engineering requirements call for internal steel reinforcement.
Can this post be installed with a base plate?
Yes, when used as part of a compatible, properly anchored base-plate assembly. A 1-1/4″ × 1-1/4″ steel insert can support the connection inside the center cavity.
What post spacing should I use?
A typical fence layout may place posts 6′ to 8′ apart, but final spacing must account for fence height, slat configuration, wind exposure, footing or base design, substrate, and local code.
Can the post be cut to a shorter length?
Yes. Use suitable aluminum-cutting equipment with a fine-tooth blade, measure carefully, and deburr the cut edge before assembly.
Should the post be filled with concrete?
The post itself does not normally need to be filled with concrete. For an in-ground installation, the post is typically embedded into the surrounding concrete footing. Follow the project-specific design.
Built-In Lighting
Can lighting be built into this post?
Yes. A channel that is not being used for fence slats can receive compatible lighting components to create an integrated post-lighting feature.
Which channel is used for lighting?
Use the third channel that remains open after the two fence sections are connected in an inline or corner layout.
Is the light diffuser included?
No. The compatible post-cover diffuser for lighting is sold separately.
Are the LED light, wiring, and transformer included?
No. The light source, wiring, transformer, controls, connectors, weather protection, and electrical accessories are sold separately.
When should I plan the lighting?
Plan the lighting and wiring route before the post is set or base mounted so power access, drainage, weather protection, service access, and the diffuser can be coordinated correctly.
Who should complete the electrical work?
Lighting components and wiring should be selected and installed according to the product instructions, site conditions, and applicable electrical requirements. Use a qualified professional when required.
Dimensions, Ordering & Care
What is the overall post size?
The profile measures 2.756″ × 2.756″ overall.
What are the key channel dimensions?
The cleaned drawing shows a 1.299″ channel depth, a 0.827″ slat-channel opening, and a nominal 0.063″ wall thickness.
What material is the post made from?
It is extruded from 6063-T6 aluminum and finished with a durable exterior powder coating.
What lengths are available online?
The online length options are 6′ and 8′.
Are 10′ and 20′ posts available?
Yes. The 10′ and 20′ lengths are available by phone order with an Alumission representative. They cannot be purchased online, and shipping charges may apply.
What colors are available?
Available finishes are Black, Bronze, White, Dark Grey, and Light Gray.
Will a cut edge rust?
No. Aluminum does not rust like steel.
How should the powder-coated finish be cleaned?
Clean with mild soap and water using a soft cloth or sponge. Avoid abrasive pads, harsh chemicals, and strong solvents that may damage the finish.
