DESIGNED FOR EXISTING COLUMNS
Turn the Space Between Columns Into a Modern Aluminum Fence

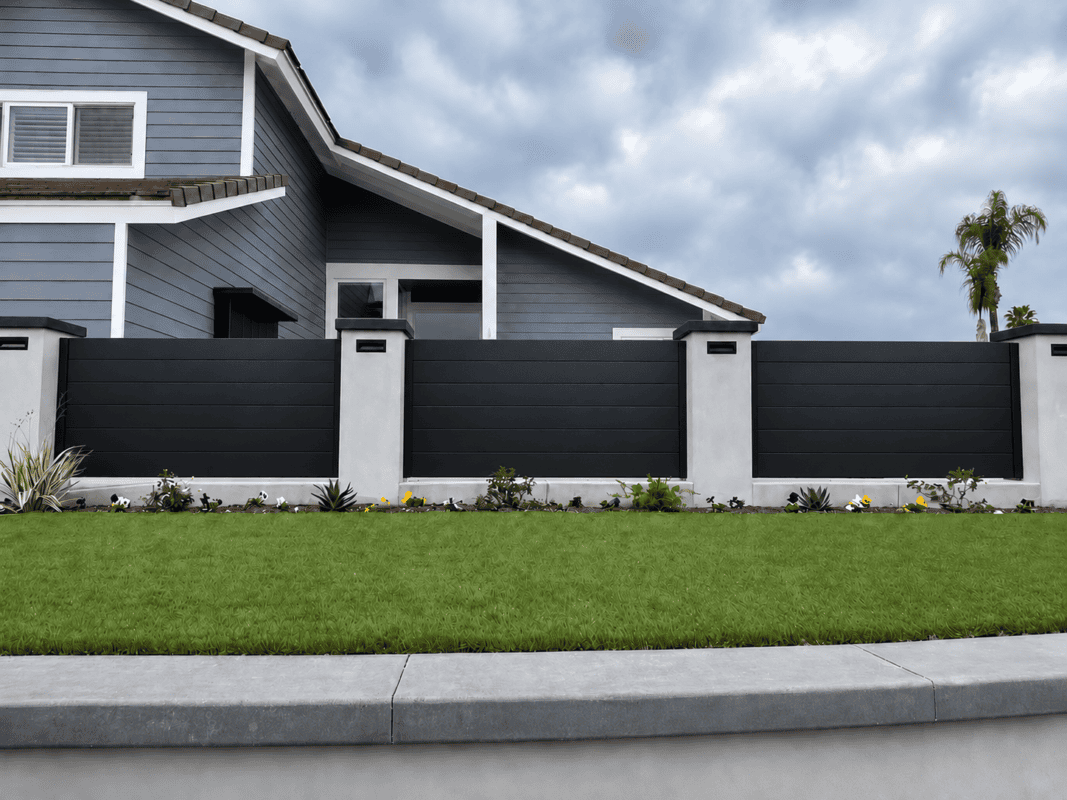

Choose your Alumission Between Columns fence kit, then tailor the slats and posts to your measured opening. Compare Dallas, Los Angeles, Miami, New York, and San Francisco designs in the product grid above.
These are fence-panel kits for existing structural columns or posts—not freestanding fence runs or railing kits.
Plan your installation in three steps
1. Measure the opening
Measure between the finished column faces at the top, middle, and bottom. Record the desired panel height and check that the columns are sound and plumb. Posts and slats are cut to fit on site.
2. Identify the column material
Attach one Aluminum Side Post to each column. Select mounting screws or anchors for the actual supporting material. Column-mounting screws and anchors are not included.
3. Check the width
Openings wider than 8 feet require a center support. The 10-foot and 12-foot kits include a two-channel center post, steel post base, and aluminum base cover.
Watch before you install
How to install aluminum fence panels
Review the installation process before measuring, cutting, drilling, and fastening your panel.
Watch on YouTube →Alumission modern aluminum fences and gates
Explore Alumission fencing and gate designs for a coordinated outdoor space.
Watch on YouTube →

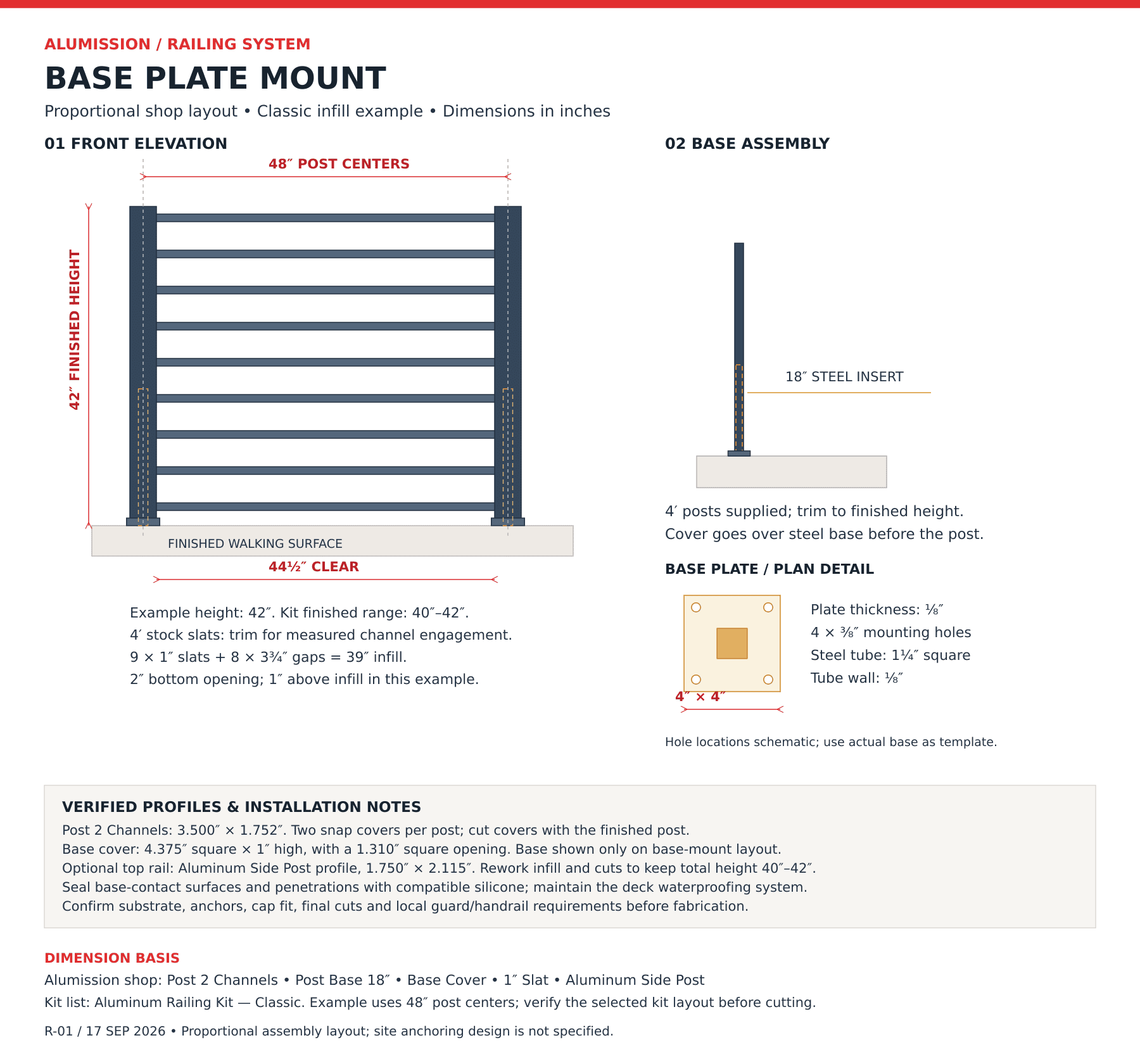

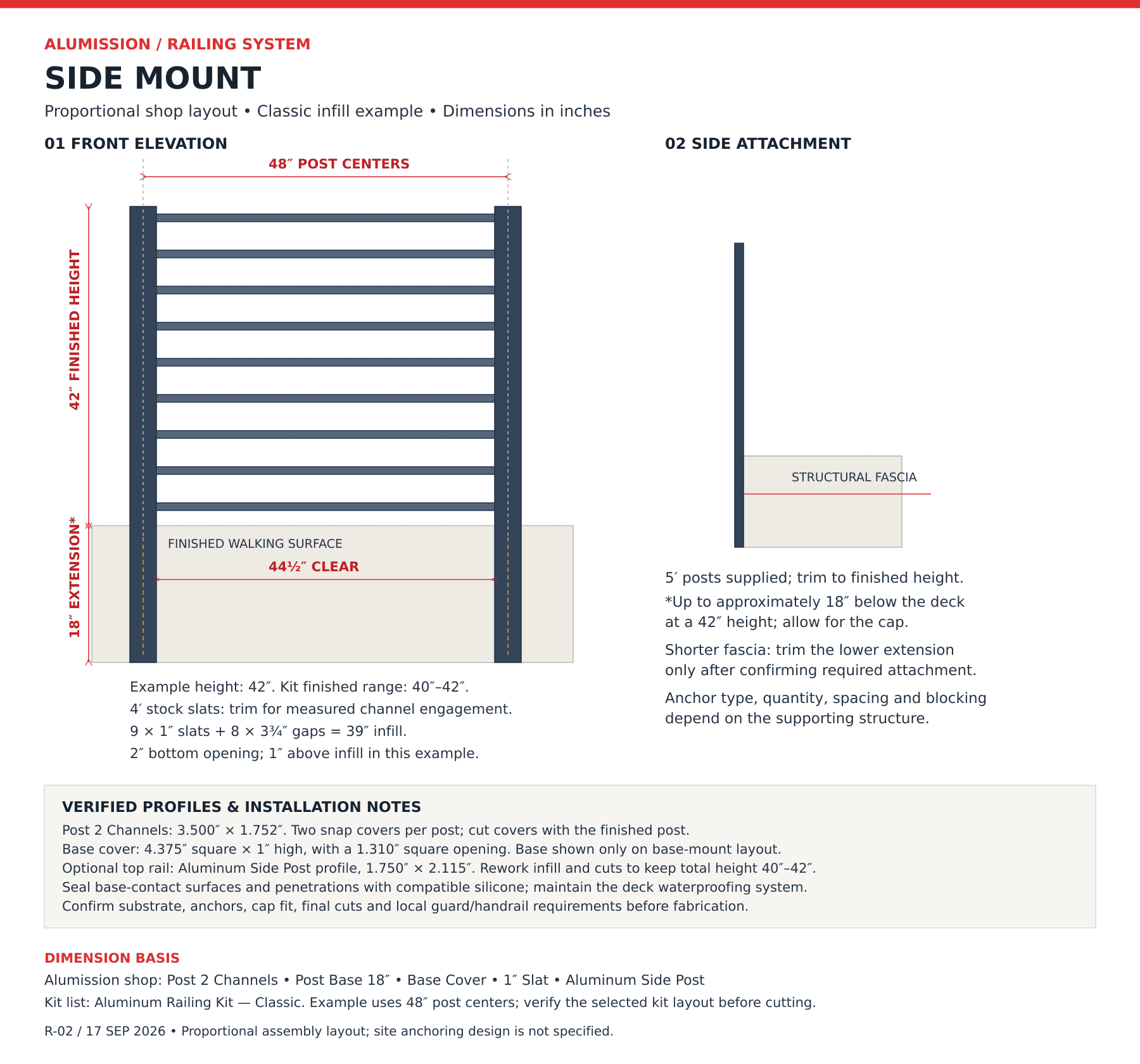

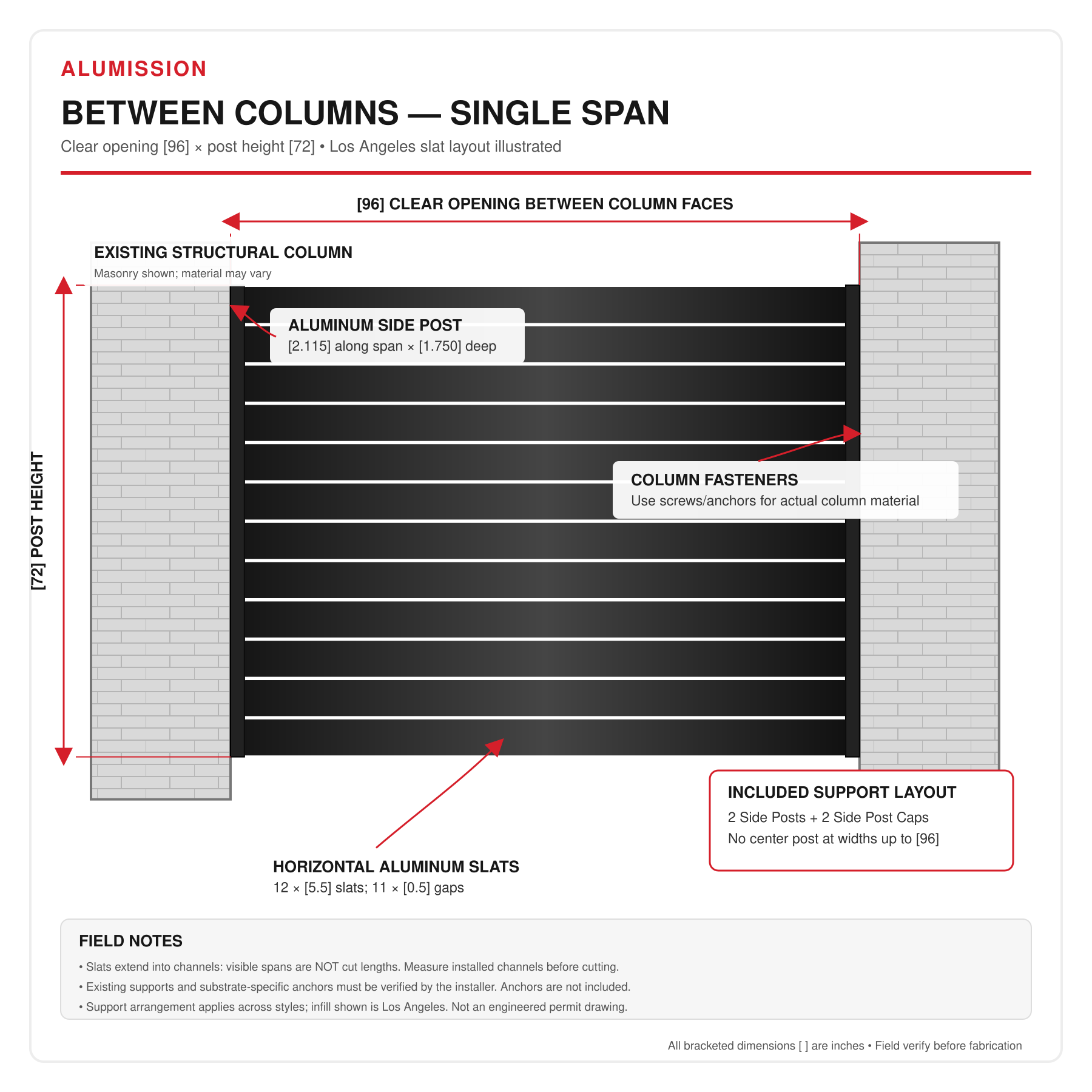

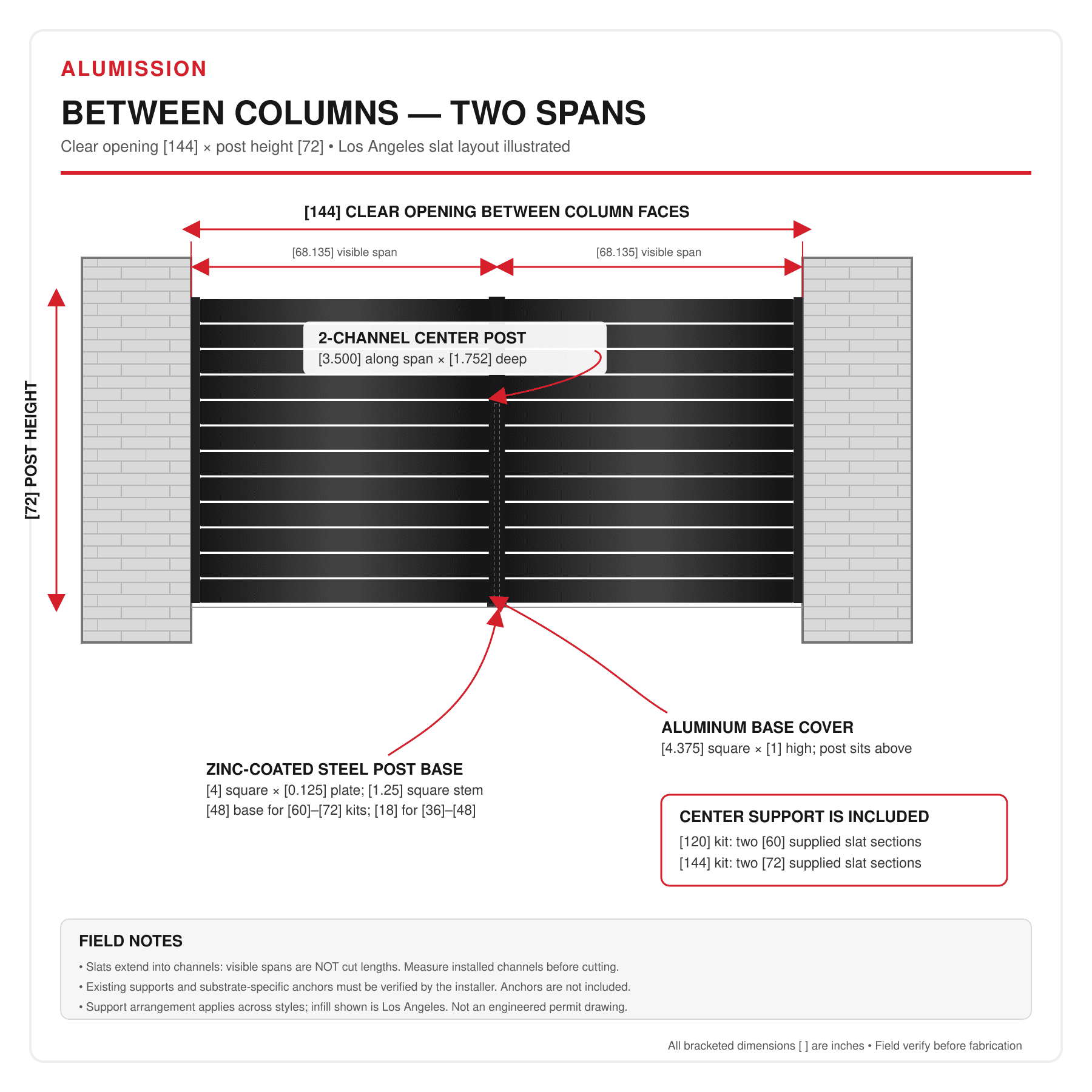

Shop drawings: compare the support layouts

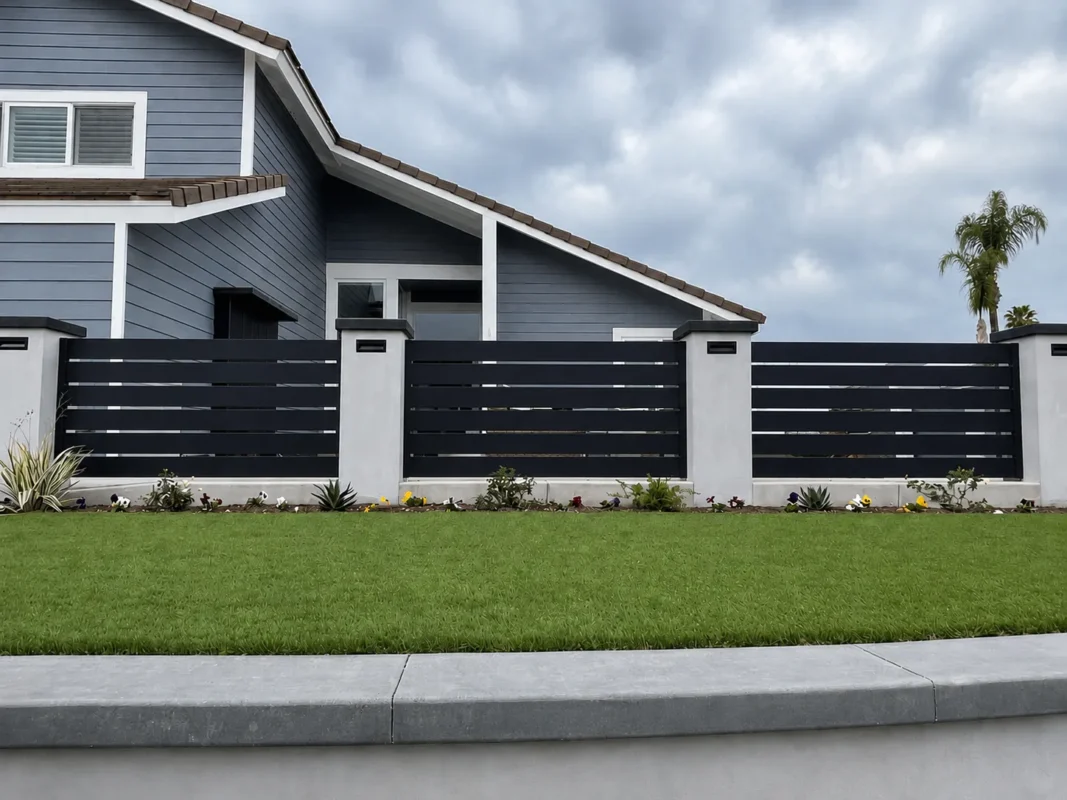

Proportional examples using the actual Side Post, two-channel post, steel base, and base cover dimensions. The Los Angeles slat pattern is illustrated; support arrangements apply across the five designs. Click either drawing to view full size.
One span or a center-supported panel?
| Kit width | Support arrangement | Center support |
|---|
| 3′, 4′, 5′, 6′, or 8′ | Two Side Posts attached to the existing columns | No center post in the standard kit |
| 10′ | Two Side Posts plus one two-channel center post | Two nominal 5′ slat sections, cut to fit |
| 12′ | Two Side Posts plus one two-channel center post | Two nominal 6′ slat sections, cut to fit |
Important: Supplied slat lengths and nominal kit dimensions are not final cut dimensions. Confirm the installed post positions and actual channel-to-channel measurements before cutting. Supporting surfaces, anchors, panel height, and site conditions must be suitable for the installation.
The actual Alumission support components

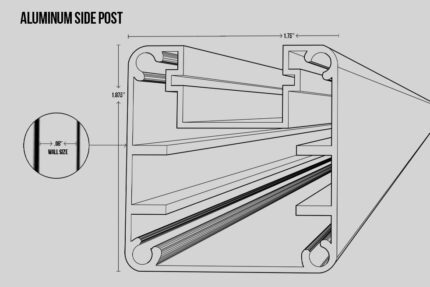

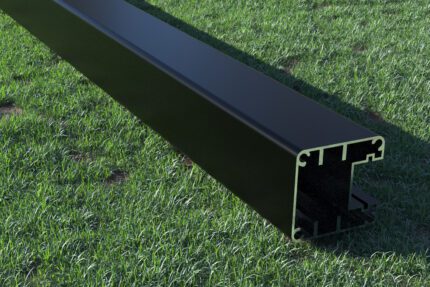

- Aluminum Side Post: single-channel end support for attachment to existing columns. Profile dimensions: 1.750″ × 2.115″; channel opening: 0.826″.

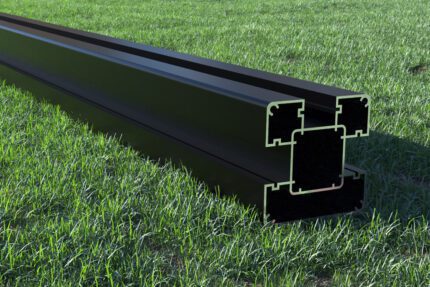

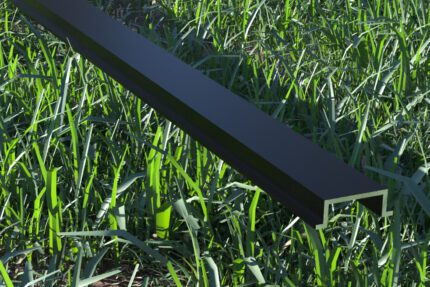

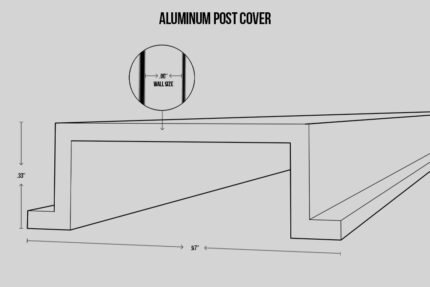

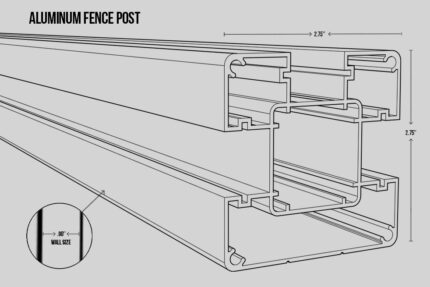

- Aluminum Post 2 Channels: center support with a slat channel on each side. The wide kits include its cap and two snap covers.
- Zinc-Coated Steel Post Base: 4″ × 4″ × 1/8″ plate with a 1-1/4″ square steel stem. The wide-kit schedule specifies an 18″ base for 3′–4′ heights and a 4′ base for 5′–6′ heights.
- Aluminum Base Cover: 4.375″ square × 1.000″ high. It conceals base-plate fasteners. Fit it over the steel stem before installing the aluminum post.
What is included in your kit?
Each style’s Product Details tab lists the exact slat quantities, spacer packs, caps, and bracket hardware for every size. Standard single-span kits include two Side Posts and two caps. The 10′ and 12′ kits add the complete center-support assembly. Slat counts and spacing depend on the selected design and height.
Plan separately: column anchors or mounting screws appropriate for the actual material, cutting and drilling tools, drill bits, and silicone. Do not substitute aluminum-assembly screws for structural column anchors.
Between Columns questions, answered
How do the panels attach to my columns?
A Side Post is attached to each column. The horizontal slats fit into the facing channels. Choose fasteners for the actual column construction and installation loads.
When do I need a center post?
Use a two-channel center post when the opening is wider than 8′. Standard 10′ and 12′ kits include the center post, snap covers, cap, steel post base, and aluminum base cover.
Can I cut the kit to fit?
Yes. Measure the actual opening and installed support positions, then cut the aluminum posts and slats to fit. Use a saw and blade suitable for aluminum.
Are column-mounting screws included?
No. The correct screws or anchors depend on the supporting material. The installer must select suitable mounting hardware for the columns and center-post foundation.
Where can I see the exact parts for my size?
Open the selected style and review the Product Details tables. They list components by height and width, including the additional support parts for wide kits.
Need help confirming your opening?
Send Alumission your clear opening width, desired height, column material, preferred style, and site photos before ordering.
Get help with my Between Columns kit →
