Home » Shop » Aluminum Post Cap For 3 Channel Post

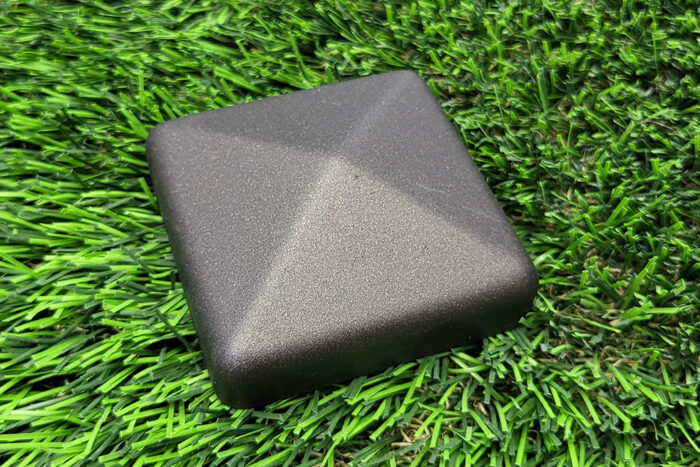

Aluminum Post Cap For 3 Channel Post in deep matte black powder-coated finish

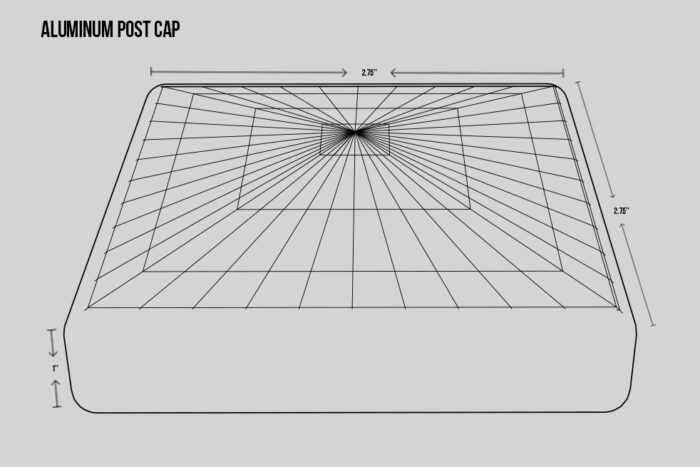

Aluminum Main Post Cap technical drawing showing the dimensions of the pointed cap for the Alumission Post 3 Channel

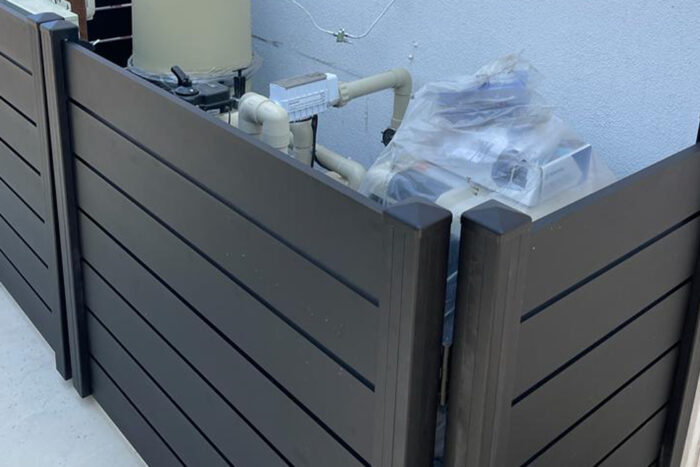

Black cap fitted to an aluminum fence post
Aluminum Post Cap For 3 Channel Post in deep matte black powder-coated finish
Aluminum Main Post Cap technical drawing showing the dimensions of the pointed cap for the Alumission Post 3 Channel
Black cap fitted to an aluminum fence post

Aluminum Post Cap For 3 Channel Post

0 (0) Reviews

Pointed 6063-T6 aluminum cap made only for the Alumission Post 3 Channel. Measures 2-3/4″ × 2-3/4″ × 1″, with a 1/2″ sleeve and 1/2″ pointed section. Installs with silicone or adhesive—no screws required.

STARTING AT $19.10

WHAT’S INCLUDED:

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

The Aluminum Main Post Cap is a pointed 6063-T6 aluminum cap designed only for the Alumission Aluminum Post 3 Channel. It measures 2-3/4″ × 2-3/4″ with a 1″ total height.

The lower 1/2″ forms the sleeve that fits over the post, and the upper 1/2″ forms the pointed section. Install the cap after the post installation is complete using silicone or a suitable adhesive. Screws are not required.

Download Installation Guide

Questions about this product?

For help confirming compatibility, sizes or required components, contact Alumission technical support with the product name and your project details.
