2.5″ Aluminum Slat

It is a hollow 6063-T6 aluminum extrusion with a nominal 2.500″ face and 0.803″ depth. It is used as horizontal or vertical infill in compatible Alumission fence, gate, screen, wall-topper, and custom panel systems.

The 2.5″ face offers a useful balance between coverage and pattern flexibility. It creates more visual presence than a 1″ accent slat but allows more detailed spacing and repetition than a wider 5.5″ privacy slat.

Yes. Repeating only the 2.5″ profile creates a uniform design. Use smaller gaps for greater privacy or larger gaps for a lighter, more open appearance.

Yes. It can be used as infill in properly designed fence panels, pedestrian gates, driveway gates, sliding gates, privacy screens, and wall toppers.

It is a hollow rectangular extrusion. The hollow construction provides clean architectural lines with less weight than a solid bar.

Yes. The displayed variation price is for one slat in the selected length and finish unless the product page specifically states otherwise.

Smaller gaps reduce sightlines and create a more private appearance. Larger gaps allow more light, airflow, and visibility through the panel.

Yes, when the complete assembly and fastening method allow it. Plan a consistent reveal and leave any clearance required for fabrication, drainage, expansion, and installation.

Yes, a gap near 4″ can create an open, see-through architectural design. Confirm that the opening complies with local rules for the specific fence, gate, pool barrier, guard, or property application.

A true full-privacy result generally requires an overlap, interlocking system, or a layout that eliminates direct sightlines. Small open gaps improve privacy but can still allow angled visibility.

Yes. Horizontal slats emphasize width and long modern lines, while vertical slats emphasize height and repetition. The same gap can feel different depending on orientation and viewing angle.

Use accurately sized temporary spacers or a repeatable layout jig, verify the first several slats with a tape measure, and recheck the total pattern before fastening the complete panel.

Usually a centered, balanced layout looks best, but the end condition depends on the post channel, frame, cover, and fastening method. Plan the complete opening before cutting or installing profiles.

Yes. Use 1″ slats as narrow accents between 2.5″ profiles, create repeating bands, or alternate the widths to produce a more detailed custom pattern.

Yes. A 5.5″ slat can provide broad coverage while 2.5″ profiles introduce smaller sections, breaks, and visual rhythm.

Yes. All three widths can be combined in a planned horizontal or vertical pattern. Draw the sequence first so the total width or height, gaps, quantities, and end spacing fit the finished opening.

No. Gaps may be uniform or intentionally varied, but a deliberate repeating rule usually produces the cleanest result. Verify that every opening remains suitable for the application.

Add the face widths of every slat in one repeating sequence, add the planned gaps, and compare that total with the clear panel dimension. Repeat the module as needed, then divide any remaining space deliberately at the ends or within the pattern.

Yes. Horizontal installation is a popular choice for modern fences, gates, and privacy screens because it creates long, clean architectural lines.

Yes. Vertical installation creates height and a contemporary picket-style rhythm. Use suitable top and bottom frame support and a fastening method designed for the complete panel.

The 2.5″ slat is designed for use with Alumission post systems. Select the post style, channel arrangement, covers, and hardware that match the fence or gate layout.

The slat profile can be used in either direction, but the surrounding frame, support, cut lengths, attachment points, and installation sequence must be planned for the selected orientation.

It may be incorporated into a properly designed custom assembly, but connections, isolation between dissimilar materials, moisture control, structural support, and local requirements must be reviewed for that project.

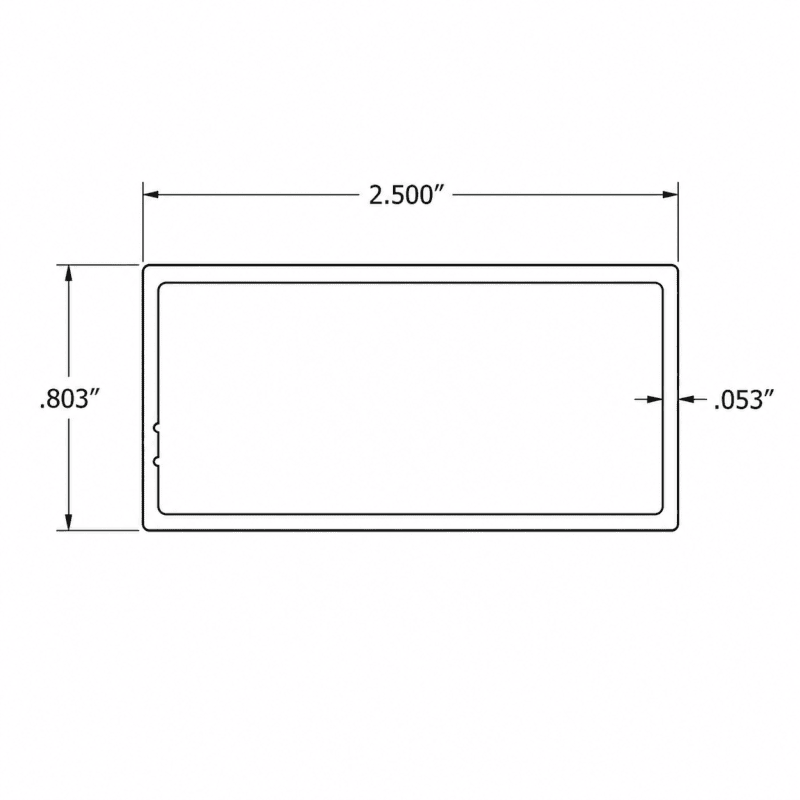

The nominal overall size is 2.500″ wide × 0.803″ deep.

The nominal wall thickness shown on the technical drawing is 0.053″. Normal extrusion tolerances apply.

It is extruded from 6063-T6 aluminum, an architectural alloy commonly selected for clean extrusion quality, corrosion resistance, finishing, and outdoor aluminum systems.

The profile weighs approximately 0.408 lb per linear foot. Actual shipping weight can vary with length, finish, packaging, and normal manufacturing tolerances.

Yes. Use suitable aluminum-cutting equipment with a fine-tooth blade, support the extrusion securely, wear appropriate protection, measure carefully, and deburr every cut edge.

Quantity depends on the clear panel dimension and selected gap. For a single-width layout, estimate by dividing the clear stacking dimension plus one gap by 2.5″ plus one gap, then confirm the end spacing and actual installation details before ordering.

No. The selected product variation includes one 2.5″ slat. Posts, frames, screws, spacers, covers, caps, brackets, and installation accessories are sold separately.

Available finishes are Black, Bronze, White, Dark Gray, and Light Gray.

Yes. The exterior aluminum surface is powder coated for a durable, coordinated finish with compatible Alumission components.

Yes. Mass-production powder coating is very accurate. For the best visual result, compare all components together before final assembly.

Yes. The 6063-T6 aluminum construction and powder-coated finish are suitable for outdoor use when the complete system is properly designed, drained, installed, and maintained.

No. Aluminum does not rust like steel.

Wash with mild soap and clean water using a soft cloth or sponge. Rinse thoroughly and avoid abrasive pads, harsh solvents, and aggressive chemicals.

6′ and 8′ lengths are available for online purchase in the listed finishes, subject to current stock.

Yes. The 10′ length is available by phone order with an Alumission representative. It cannot be purchased online, and shipping charges may apply.

It is displayed so customers know the longer length is available. Long-profile packaging and shipping must be reviewed by an Alumission representative before the order is placed.

Select an online length and color. The general price range will be replaced by the exact price for that specific variation.

Yes. Carrier limits, oversize packaging, destination, and order quantity can affect shipping charges, especially for phone-order lengths.

Cut, drilled, installed, damaged, or otherwise modified material may not be eligible for return. Review the current return policy and confirm quantities and measurements before fabrication.

Yes. The aluminum profile is noncombustible. Fire performance of the complete fence or gate also depends on posts, coatings, fasteners, adjoining materials, and the installed assembly.

No. It is an infill profile, not a complete structural system by itself. Posts, frames, foundations, spans, connections, wind exposure, loads, and local requirements must be considered together.

Do not assume a 4″ gap is automatically permitted. Pool barriers, guards, stairs, balconies, and other safety applications may have strict opening, climbability, height, and load rules. Confirm every applicable local requirement before construction.

A qualified installer familiar with aluminum fence and gate systems is recommended for large panels, gates, elevated guards, pool barriers, or any code-regulated project.
