How long is each V-track section?

Each stainless steel V-track section is 96″, or 8′, long.

What grade of stainless steel is used?

Both the V-track and its attached concrete anchor rods are made from 304 stainless steel.

Which wheels should be used with this track?

Use compatible V-groove sliding-gate wheels that are properly sized for the gate weight, frame design, and operating conditions.

Can multiple V-track sections be connected?

Yes. Install as many 8′ sections as needed for the complete gate travel length. Keep all sections straight, level, and aligned at the same V-peak height.

Will this work with an Alumission sliding gate?

Yes. It is suitable for compatible Alumission sliding-gate systems using correctly sized V-groove wheels and properly designed guide and stop hardware.

How is the V-track installed?

Position and align the track, mark every anchor-rod location, drill the concrete, clean the holes, apply structural anchoring epoxy, insert the rods, recheck alignment, and allow the epoxy to cure completely.

What drill-bit size should I use?

Use a 3/8″ concrete drill bit as specified. Also follow the anchoring-epoxy manufacturer’s instructions for the required hole diameter, depth, and cleaning procedure.

Are the stainless steel anchor rods included?

Yes. The 3/8″ stainless steel rods are attached to the track and positioned at 24″ intervals.

Is the anchoring epoxy included?

No. Structural anchoring epoxy, the concrete drill bit, and installation tools are sold separately.

How should two track sections meet?

The V peaks must be on the same centerline and height, with a smooth joint and no offset or raised edge that could interfere with the wheel.

How much track do I need?

Measure the gate’s complete travel path, not only the opening. Order enough 8′ sections to support the gate wheels through the fully closed and fully open positions.

When can I operate the gate after installation?

Do not place the gate on the track or operate it until the anchoring epoxy has reached the full cure time specified by its manufacturer.

Can the track be installed outdoors?

Yes. 304 stainless steel offers good outdoor corrosion resistance. Regular cleaning is recommended, especially in coastal areas or locations exposed to salts and chlorides.

What should be checked before drilling?

Confirm the slab condition and thickness, underground utilities, complete gate travel, track centerline, wheel position, section joints, and every rod location.

What maintenance is required?

Keep the track free of rocks and debris, periodically clean the stainless steel, and inspect the track alignment, joints, anchor condition, wheels, guide rollers, and gate stops.

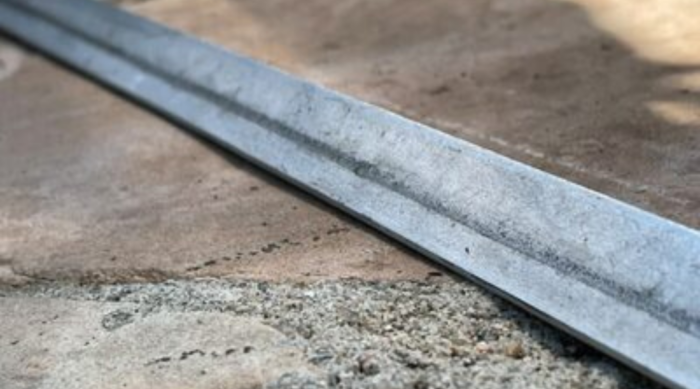

8-foot 304 stainless steel V-track with concrete anchor rods

8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods

0 (0) Reviews

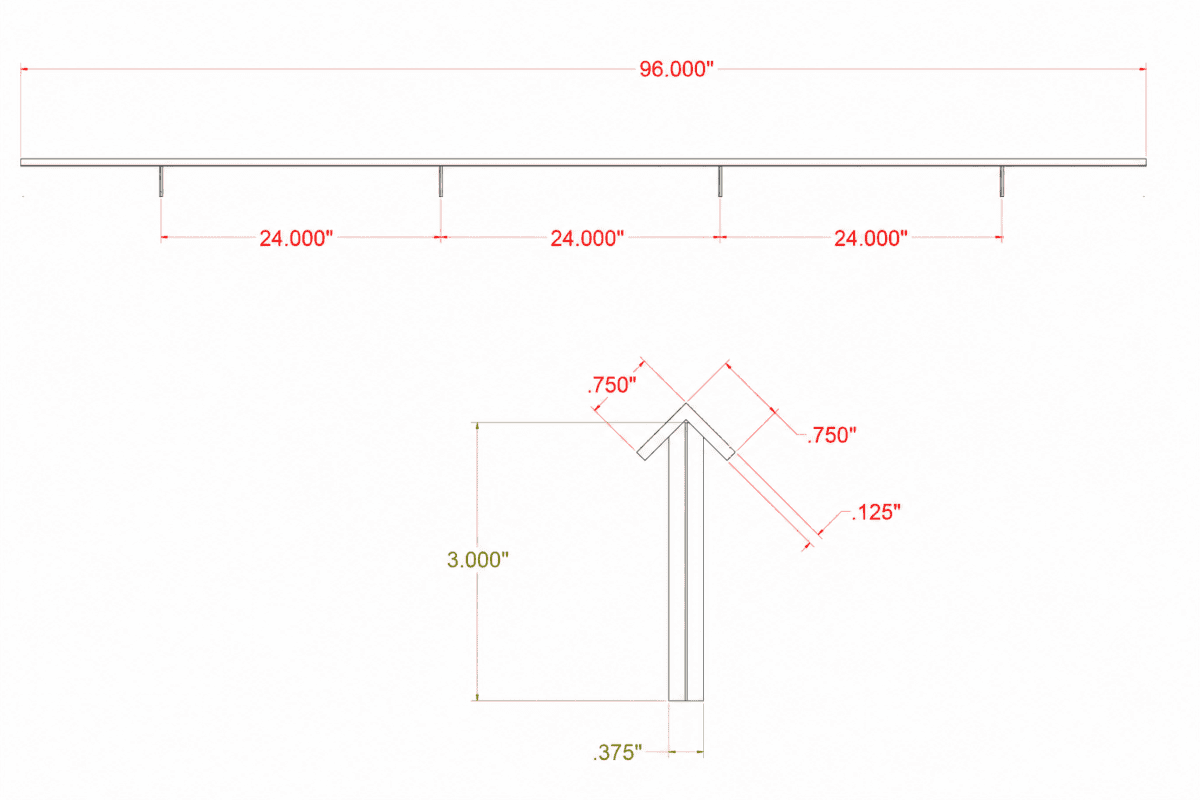

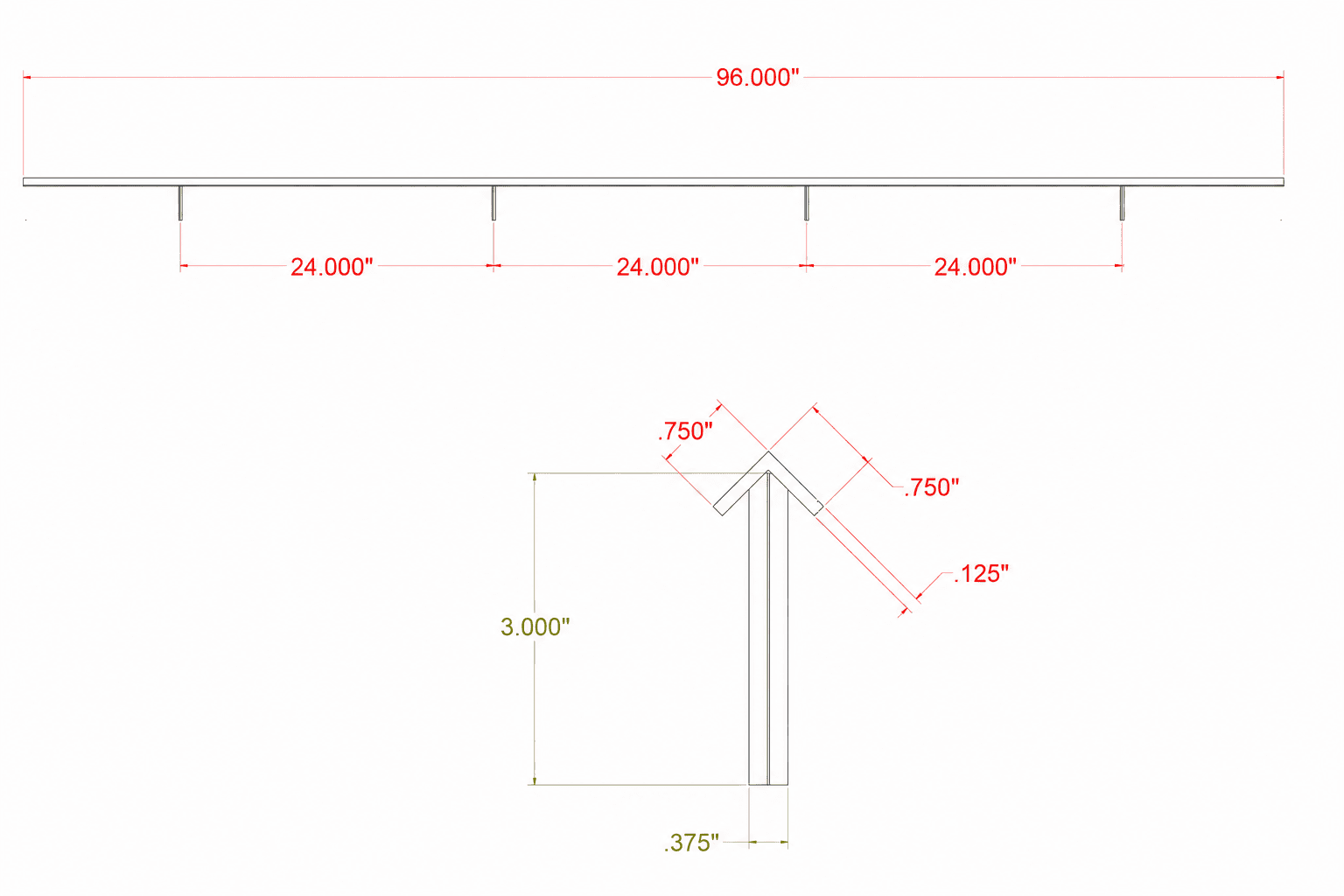

8′ (96″) 304 stainless steel V-track with attached 3/8″ stainless anchor rods for concrete installation. Designed for V-groove sliding-gate wheels; align multiple sections end to end for longer gate runs.

$101.87

WHAT’S INCLUDED:

One 8′ (96″) 304 stainless steel V-track section with attached 304 stainless steel 3/8″ concrete anchor rods. V-groove wheels, anchoring epoxy, drill bit, and installation tools are sold separately.

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

Build a durable and accurately aligned running surface for your sliding gate with this 8′ 304 stainless steel V-track. The raised V profile guides compatible V-groove wheels, while the attached 3/8″ stainless steel rods anchor the track permanently into a suitable concrete slab with structural epoxy.

Each 96″ section can be used alone or aligned end to end with additional sections for the gate’s complete travel distance. The 304 stainless steel construction provides dependable outdoor durability for Alumission sliding gates, residential driveway gates, commercial rolling gates, and other properly designed V-wheel systems.

For installation, dry-fit the complete track, establish a straight centerline, mark every rod location, drill the concrete with a 3/8″ bit, clean the holes, apply structural anchoring epoxy, insert and align the track, and allow the epoxy to cure fully before operating the gate.
