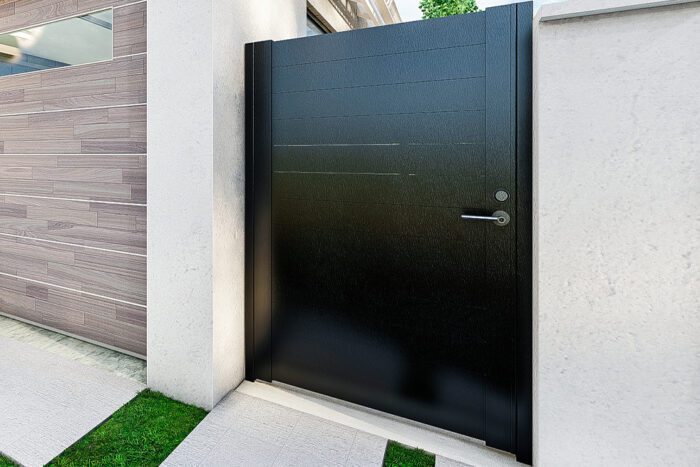

Aluminum Single Swing Gate Kit – New York Style

The gate’s frame thickness is 1-3/4″ and any standard lock, lever or deadbolt can be installed on it. The gate can be built to fit a maximum opening of 47.5″ width (including the side posts) and maximum height of 72″.

What’s in the gate kit?

* x2 Gate Frame 6′ (5″x1.75″x72″) including top and bottom caps for each post (5″x1.75″x.07″)
* x4 Gate frame cover 6′ (.7″x.2″x72″)
* x2 Side post 6′ (1.75″x1.875×72″) including top and bottom caps for each post (1.875″x1.75″x.07″)
* x1 Post Cover 6′ (.24″x1″x72″)
* x1 Gate Stopper 6′ x2 Black Stainless Steel Hinges (can be used as regular or self closing), including x20 #10 1.5″ self-drilling flat head stainless steel screws
* x100 #8 .5″ self-drilling flat head stainless steel screws
* x1 Kwikset Daylon Keyed Lever

For The Different Styles:

• Los Angeles Style: x6 1×6 aluminum slats (5.5″x.8″x72″) and x25 1/2″ aluminum spacers
• Las Vegas Style: x3 1×6 aluminum slats (5.5″x.8″x72″), x10 1×1 aluminum slats (1″x.8″x72″) and x55 1/2″ aluminum spacers
• New York Style: x7 1×6 aluminum slats (5.5″x.8″x72″)
• San Francisco Style: x24 1×1 aluminum slats (1″x.8″x72″) and x100 1/2″ aluminum spacers
• Miami or Dallas Style: x5 1×6 aluminum slats (5.5″x.8″x72″), x6 1×1 aluminum slats (1″x.8″x72″) and x50 1/2″ aluminum spacers

Box Size:

13″W x 7″H x 79″L
Weight 78lb-83lb

Shipping Details:

3-8 Business Days delivery in all US states.

Gate Kit Assembly & Installation Guide

Follow the four illustrated pages in order before cutting or assembling the gate. Important: In Part B, Stage 4, cut the slats 8″ shorter than the opening between the installed side posts. Click any page to view it at full size.
