Home » Shop » Aluminum Gate Frame Cap

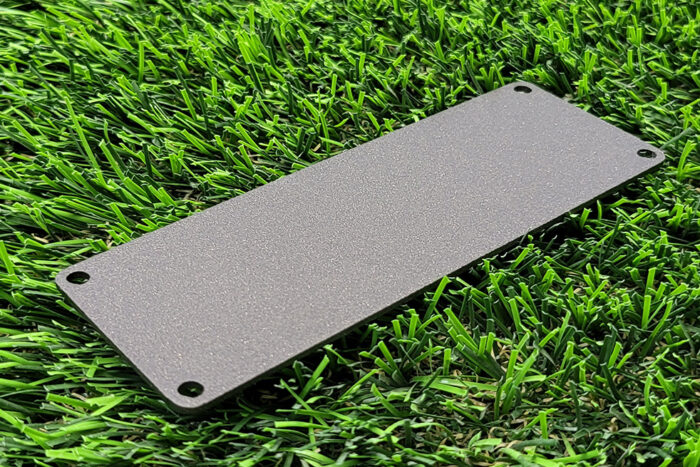

Gate Frame Cap Black

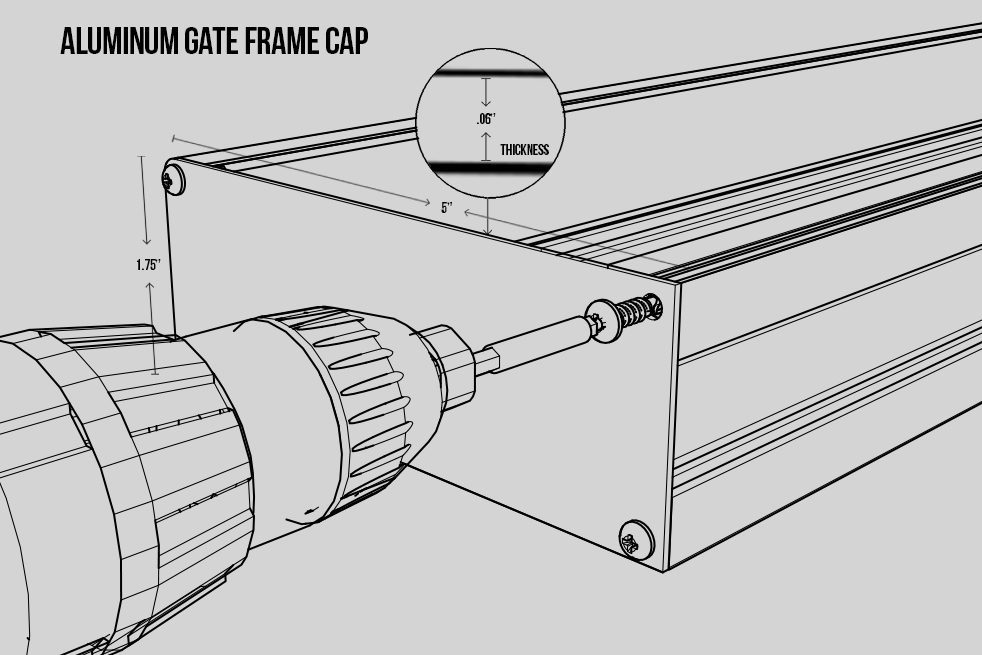

Aluminum Gate Frame Cap technical drawing for a 5 inch by 1.75 inch flat cap with 1/16 inch thickness
Gate Frame Cap Black
Aluminum Gate Frame Cap technical drawing for a 5 inch by 1.75 inch flat cap with 1/16 inch thickness

Aluminum Gate Frame Cap

0 (0) Reviews

A flat 6061-T6 aluminum cap for the Alumission Gate Frame, sized 5″ × 1.75″ × 1/16″. Use two per Gate Frame—one top and one bottom—and fasten with #8 screws or 1/8″ aluminum rivets.

STARTING AT $21.65

WHAT’S INCLUDED:

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

The Aluminum Gate Frame Cap is a flat 6061-T6 aluminum plate designed only for the Alumission Gate Frame. Install one cap at the top and one at the bottom, so every Gate Frame requires two caps.

Each cap measures 5″ × 1.75″ × 1/16″ and attaches directly to the Gate Frame with #8 screws or 1/8″ aluminum rivets.

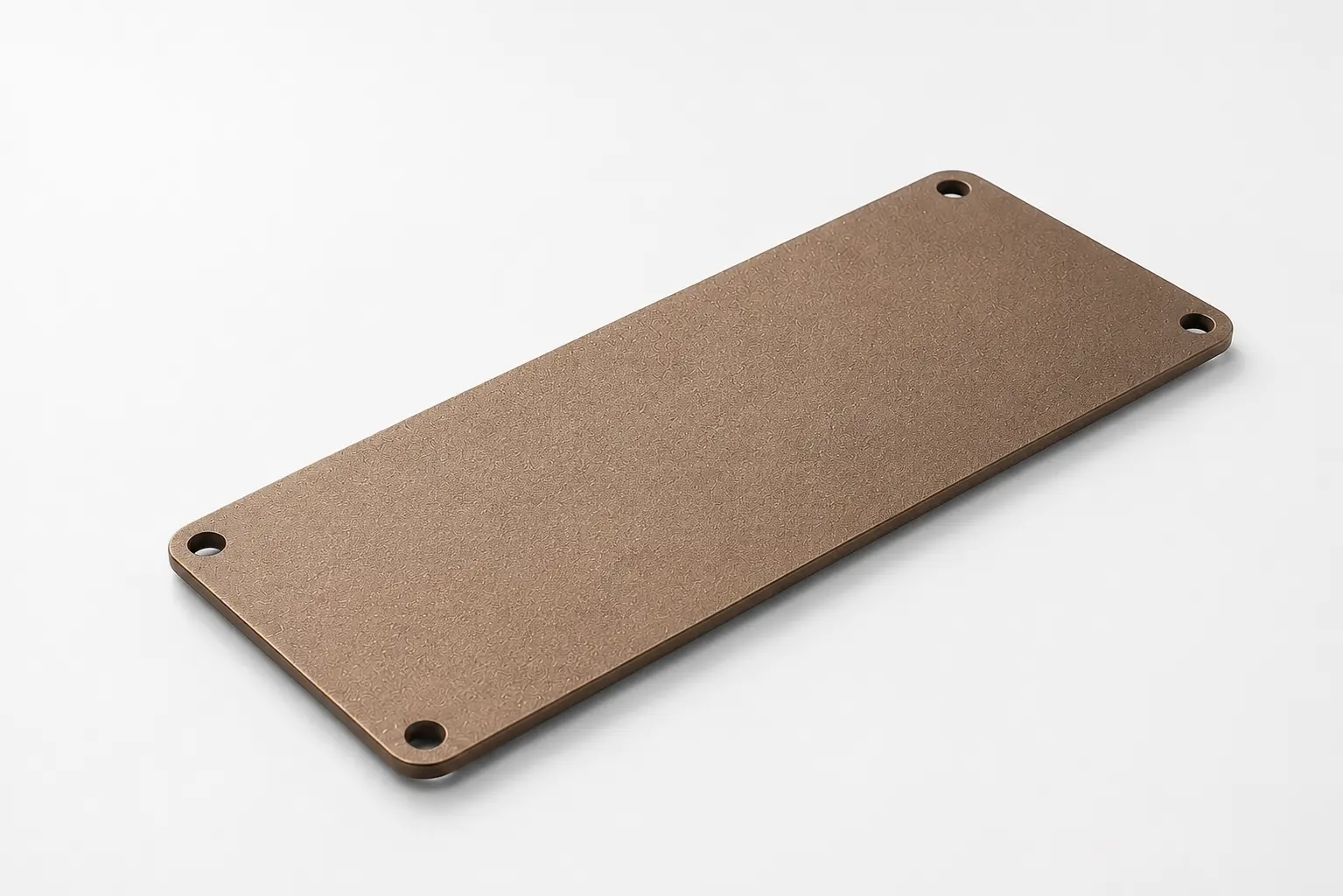

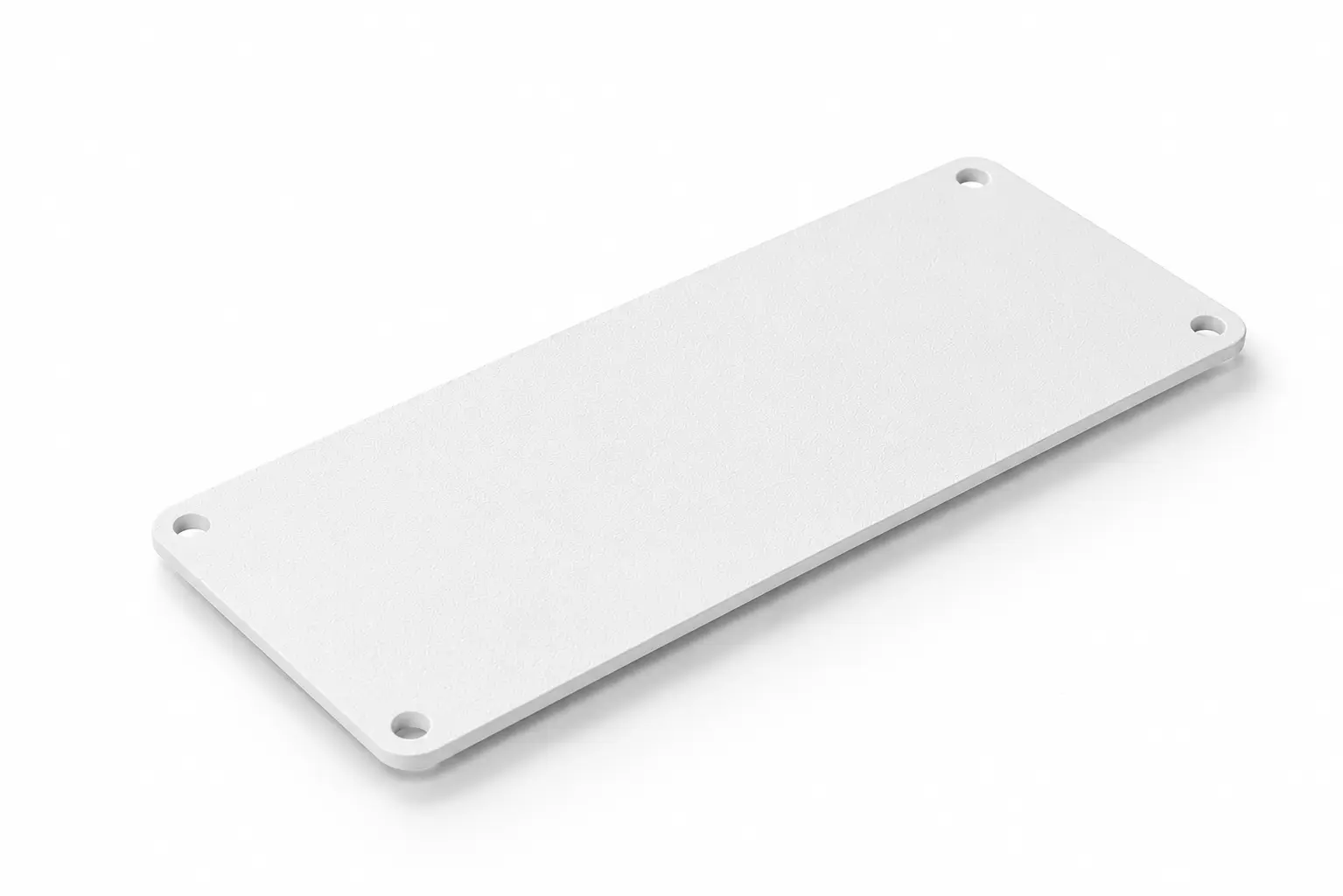

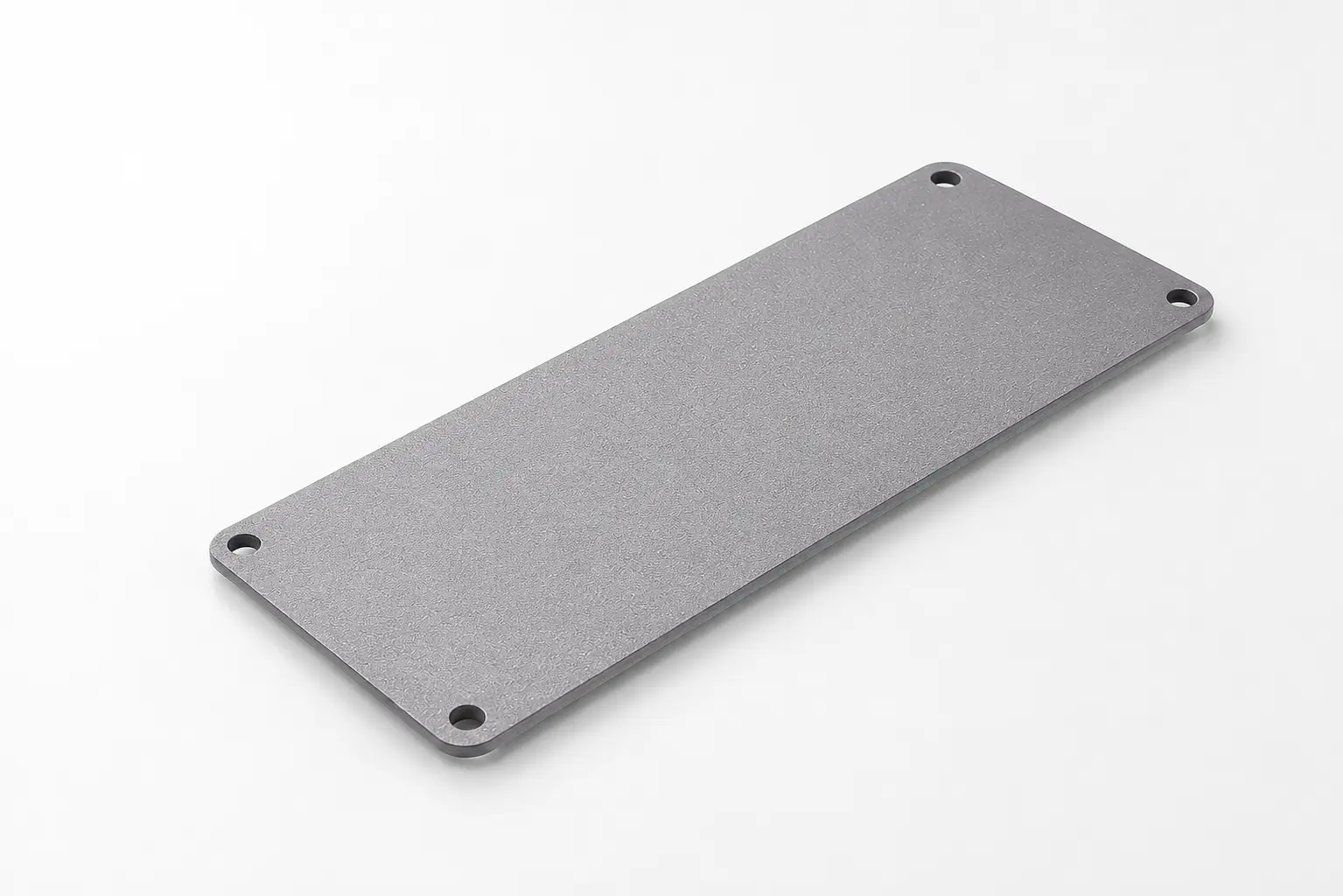

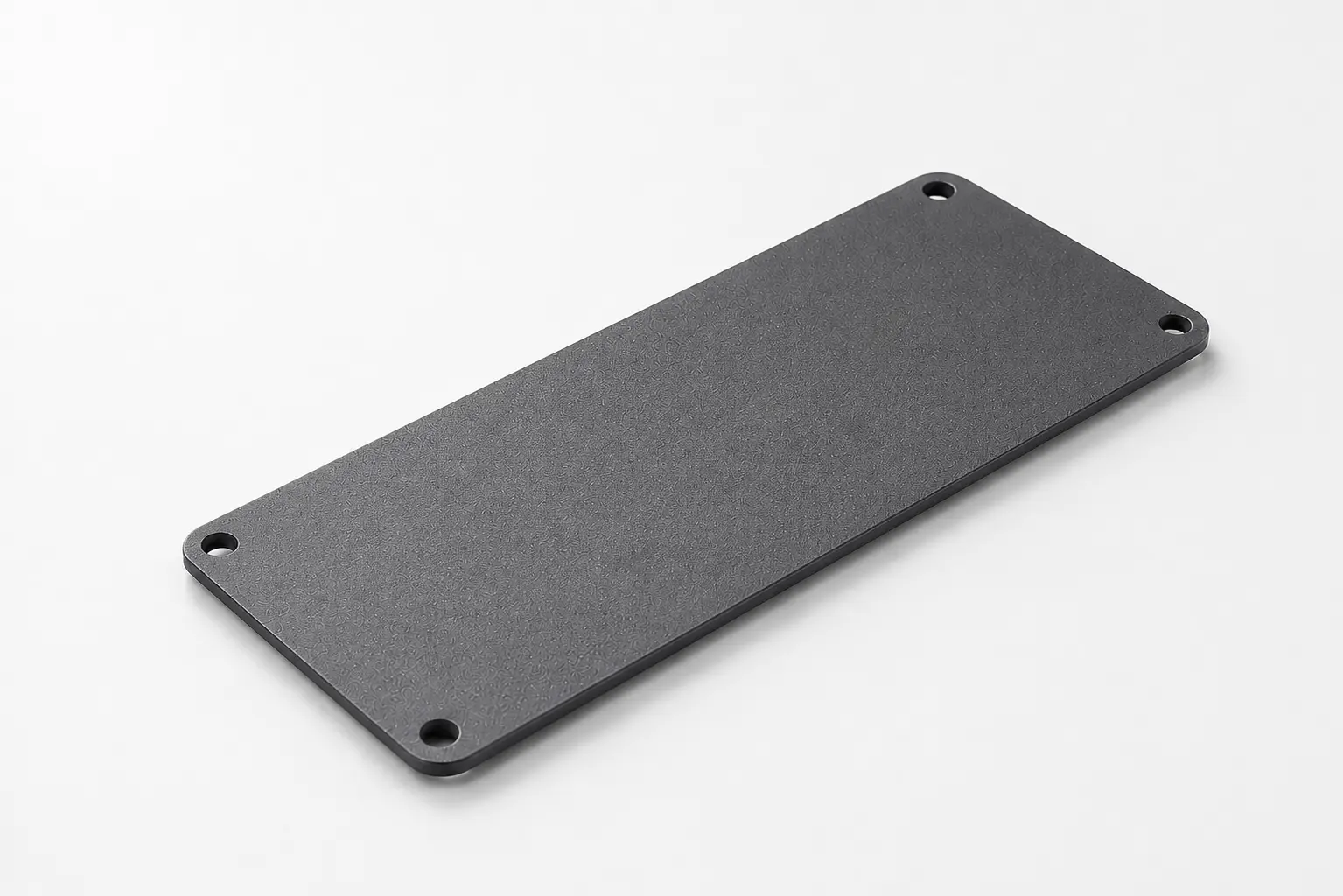

The selected product quantity includes one cap in the chosen powder-coated finish. Order a quantity of two for each Gate Frame.

Download Installation Guide

Questions about this product?

For help confirming compatibility, sizes or required components, contact Alumission technical support with the product name and your project details.
