500′ Cable Supply

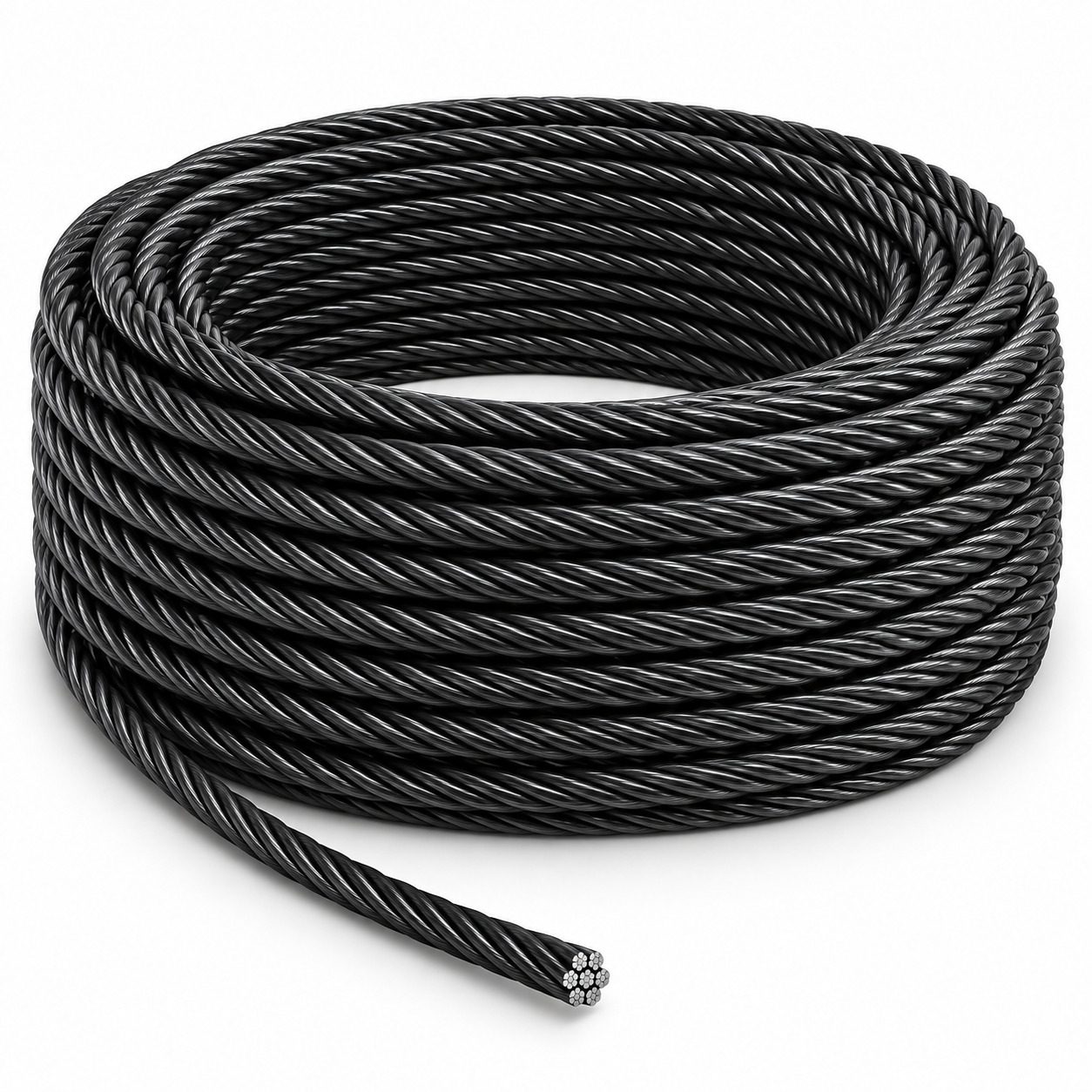

Includes 500′ of 1/8″ stainless steel cable for the eleven planned horizontal runs.
Build a clean, low-maintenance cable railing system with one coordinated stainless steel cable and hardware kit. The package is planned for up to 45′ of straight, level railing at 42″ high using 11 horizontal cable rows, 3-3/4″ planned spacing, and posts placed every 4′.
Choose Silver for a natural stainless steel appearance or Black for a coordinated dark finish. The kit can be used through properly prepared aluminum, steel, wood, or vinyl posts that are structurally suitable for cable tension.
This kit includes cable and hardware only. Railing posts, top rail, post mounting hardware, and a compatible cable crimping or swaging tool are not included.
The included quantities are organized around an 11-row, 42″-high level railing layout.
Includes 500′ of 1/8″ stainless steel cable for the eleven planned horizontal runs.

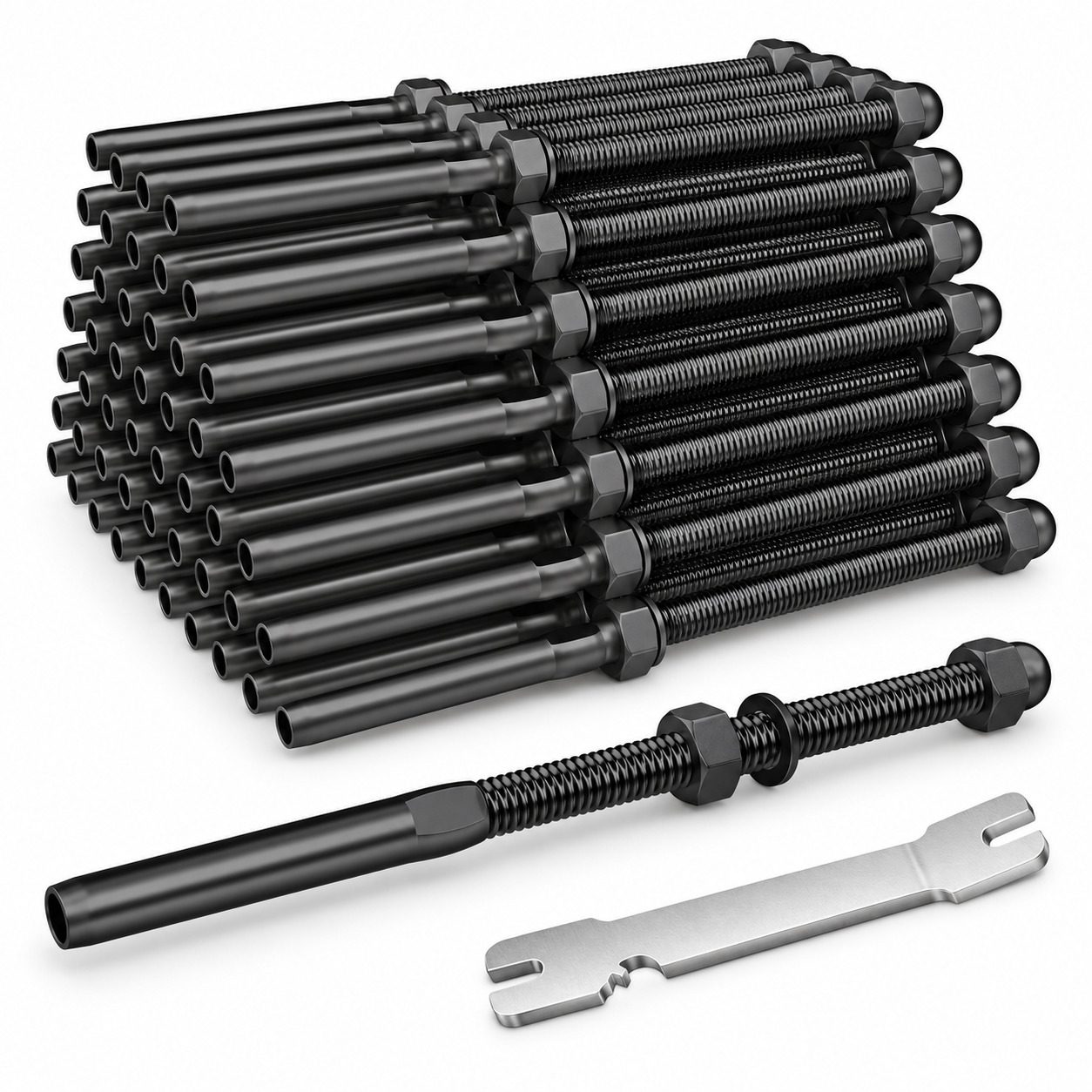

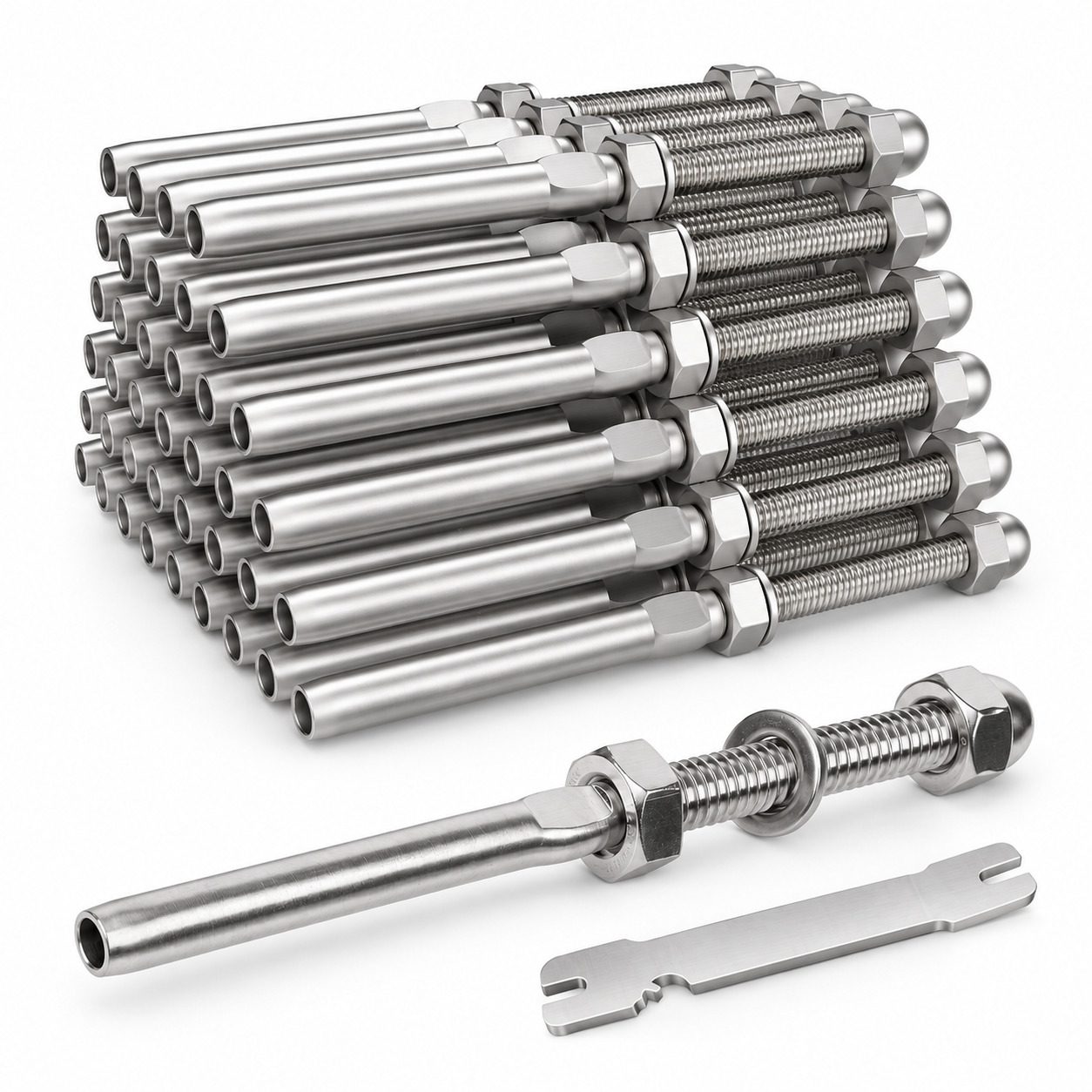

Swage threaded stud cable railing tensioners provide adjustable threaded terminations at cable ends.

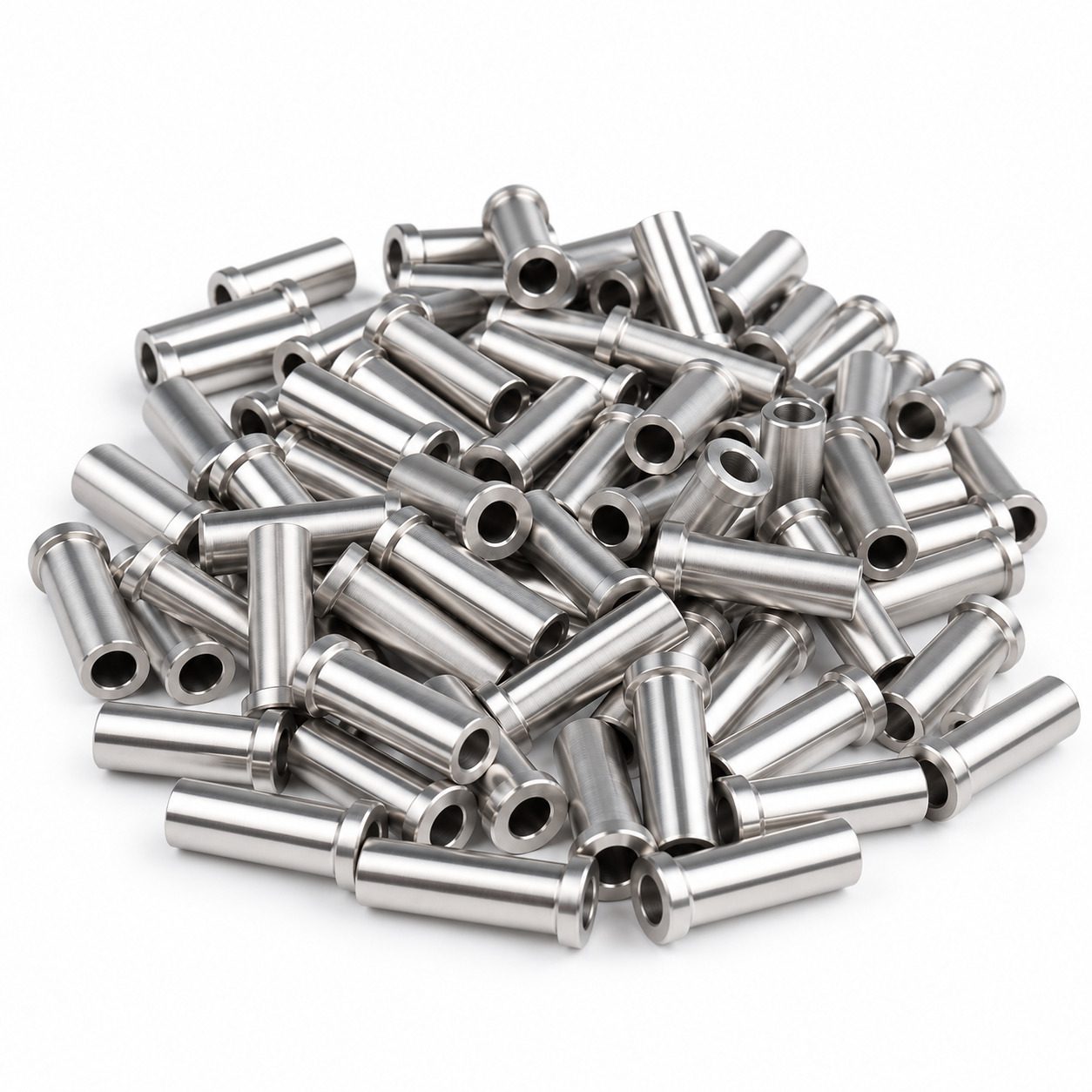

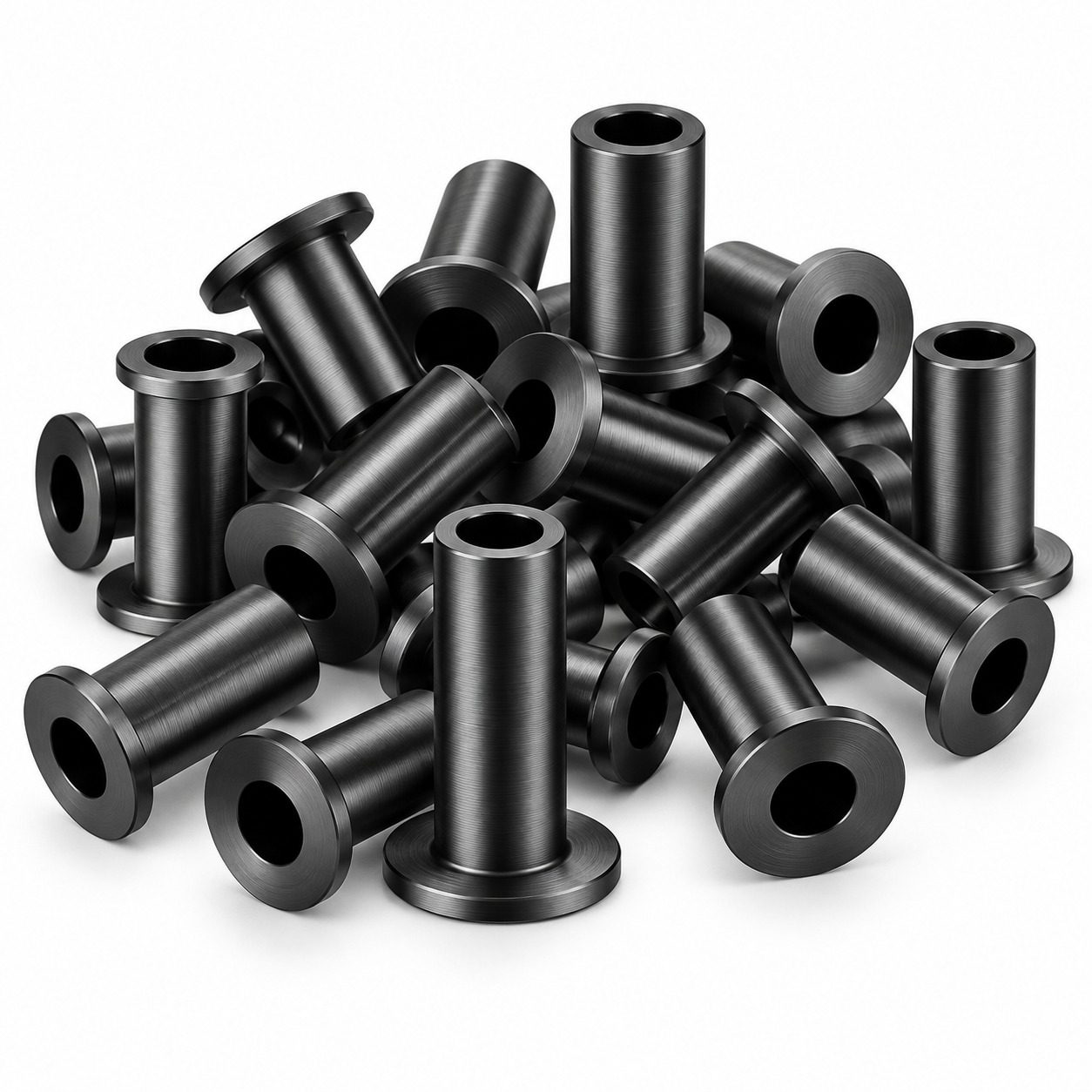

Flanged post protector sleeves help protect the cable and finish the drilled pass-through openings.
Includes the small installation wrench and drill bit shown with the kit.
Coverage is based on the user-specified layout; the final field layout determines actual cable use.
The planning layout uses 11 horizontal rows of cable.
Cable rows are planned at 3-3/4″ spacing within a 42″-high railing system.
Nominal coverage assumes intermediate posts are spaced every 4′.
Corners, multiple separate runs, end details, trimming, and installation waste may reduce maximum coverage.
Post material alone does not determine suitability; the complete post and top-rail system must resist cable tension.
Compatible aluminum or steel posts must have suitable wall thickness, hole preparation, spacing, and anchorage.
Wood posts must be sound, correctly sized, anchored, and drilled for the selected tensioning arrangement.
Vinyl posts require a structurally suitable reinforced system designed to accept cable tension.
Select the posts, top rail, post mounting hardware, and reinforcement separately for the project.
Railing rules and structural requirements vary by location and application.
Confirm railing height, opening limits, loads, cable deflection, and anchorage with the applicable code and local authority.
A compatible cable crimping or swaging tool is required and is sold separately.
The stated coverage does not assume stair runs, corners, or multiple disconnected railing sections.
Installation should be completed by a person familiar with structural cable railing layout and tensioning.

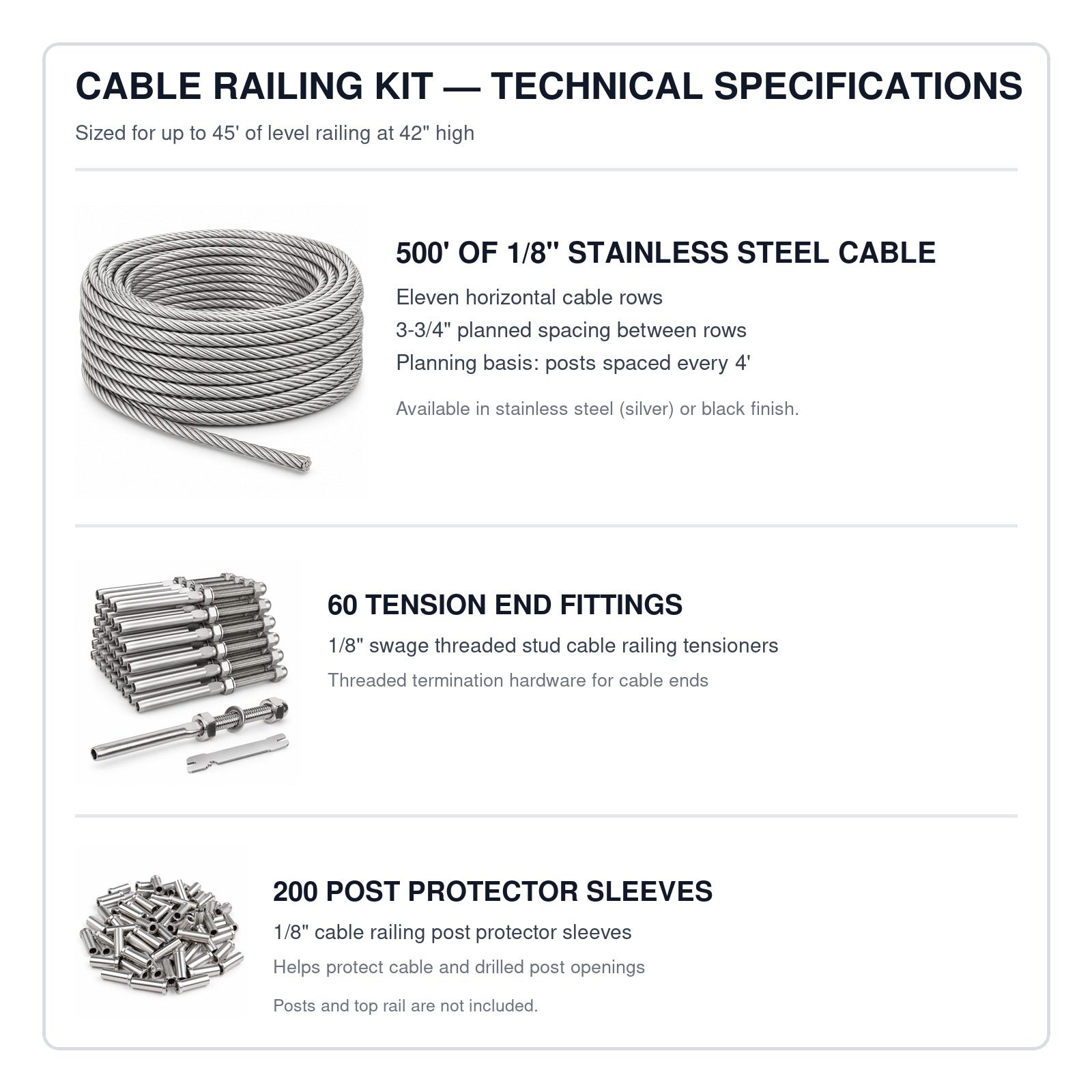

Included: 500′ of 1/8″ stainless steel cable, 60 swage threaded stud cable railing tension end fittings, 200 cable railing post protector sleeves, and the installation wrench and drill bit shown.
Sold separately: Railing posts, top rail or handrail, post mounting hardware, post reinforcement, cable crimping or swaging tool, and other project-specific installation materials.
Review the kit quantities and planning basis before laying out the posts, cable rows, terminations, and top rail.
Nominal coverage assumes a straight, level run. Corners, disconnected runs, stair sections, end conditions, and trimming waste may reduce coverage. The installer is responsible for verifying the final structural design and local railing requirements.
Answers about coverage, included components, post compatibility, finish choices, and installation planning.
The nominal planning basis is up to 45′ of straight, level railing at 42″ high, using 11 cable rows and posts every 4′. Corners, multiple runs, trimming, and field conditions can reduce coverage.
The stated layout uses 11 horizontal rows with 3-3/4″ planned spacing.
The listed coverage is based on a straight, level run. Stair sections, corners, and disconnected runs require a project-specific cable and hardware calculation.
The kit includes 500′ of 1/8″ stainless steel cable, 60 swage threaded stud tension end fittings, 200 post protector sleeves, and the installation wrench and drill bit shown.
Choose Silver for the natural stainless steel appearance or Black for a coordinated black finish.
No. A compatible cable crimping or swaging tool is required and is sold separately.
No. Posts, top rail, mounting hardware, and reinforcement are sold separately.
The hardware can be installed through properly prepared aluminum, steel, wood, or structurally suitable reinforced vinyl posts.
No single kit layout can guarantee compliance in every jurisdiction. Verify railing height, openings, cable deflection, loads, post strength, and anchorage with the applicable code and local authority.
