Are both color options made from stainless steel?

Yes. Both Black and natural Stainless Steel variations use stainless steel base material. The difference is the visible finish.

Which finish should I choose?

Choose Black when you want the fastener to coordinate with black powder-coated Alumission profiles. Choose Stainless Steel when you prefer the natural silver appearance.

Do both finishes cost the same?

Yes. The Black and Stainless Steel variations are both $40.52 per pack of 100.

What are these screws used for?

They are used to fasten compatible Alumission aluminum fence and gate components where a #8 × 1/2″ pan-head self-drilling screw is specified.

Are these the screws used to attach an aluminum post to the 1-1/4″ steel inner tube?

No. That heavier aluminum-post-to-steel-tube connection normally uses the separate #12 × 1″ self-drilling screws. Use these #8 × 1/2″ screws only where the smaller fastener is specified.

Do I need to drill a pilot hole?

The integrated self-drilling point is designed to drill compatible material thicknesses and may eliminate a separate pilot hole. Pre-drilling may still be appropriate depending on thickness, coatings, tool speed, and job conditions.

What are the screw dimensions?

The screw is #8 × 1/2″ with a 0.164″ thread diameter, 0.322″ head diameter, 0.115″ head height, and 0.175″ self-drilling point length.

How many screws are included?

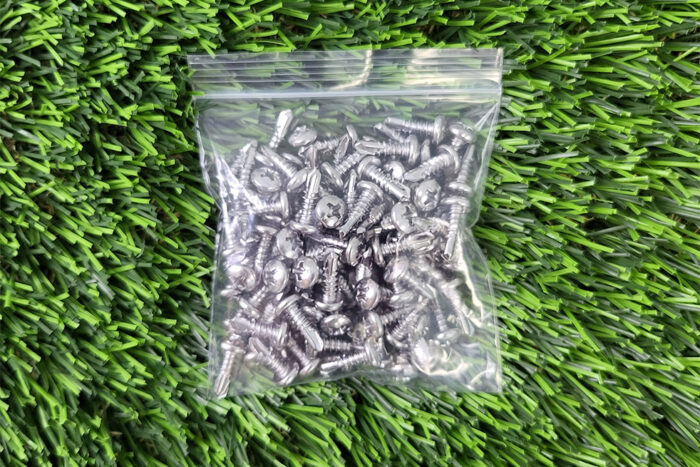

Each package contains 100 screws in the selected finish.

How tight should the screws be installed?

Tighten until the pan head is seated and the connection is secure. Avoid overtightening, which can strip the aluminum or damage the connection.

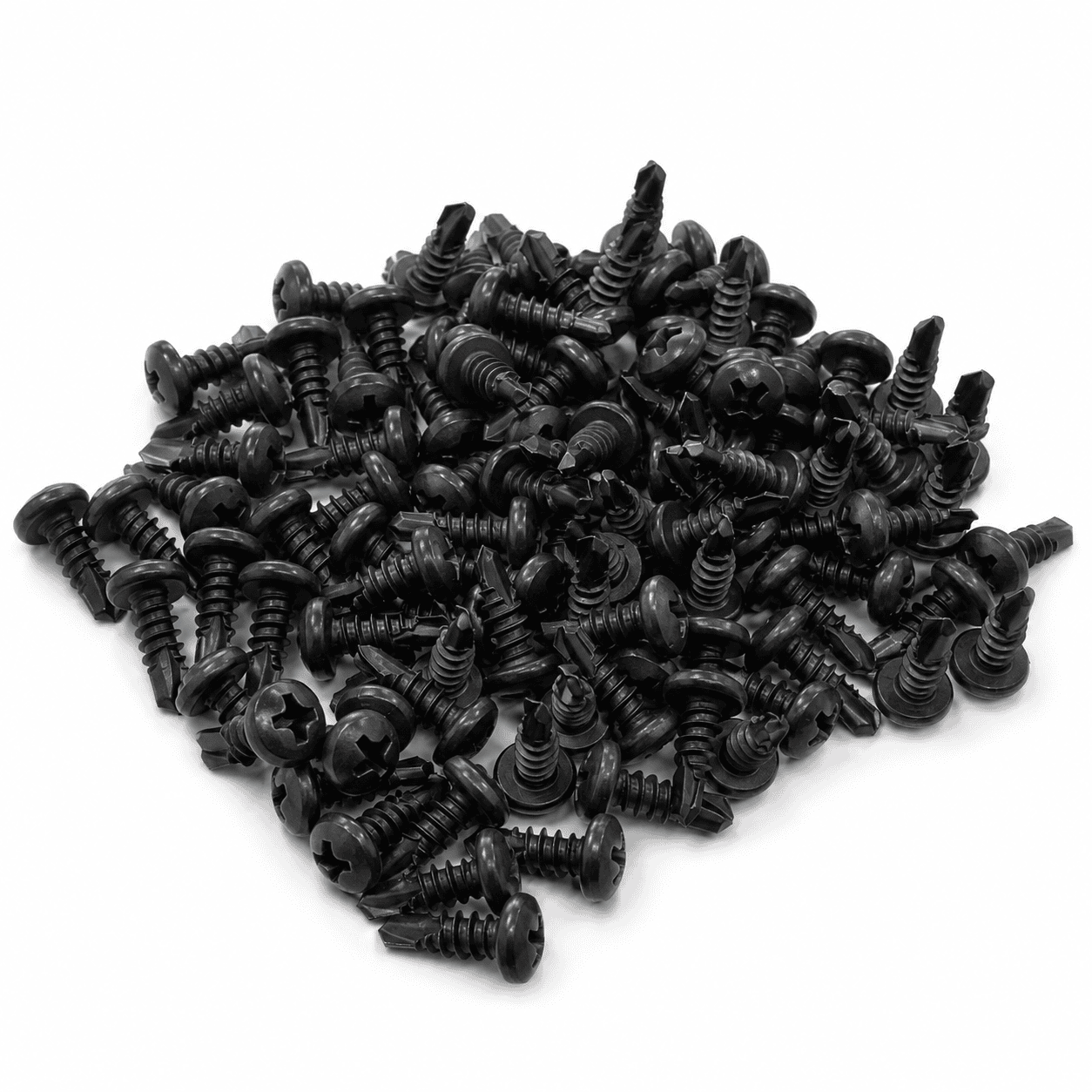

Black #8 × 1/2-inch stainless steel pan-head self-drilling screws, pack of 100

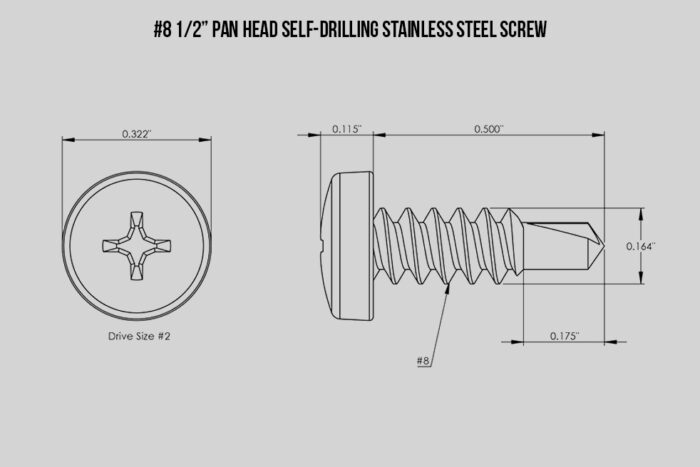

#8 × 1/2-inch stainless steel self-drilling screw dimensional drawing

#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100

0 (0) Reviews

#8 × 1/2″ stainless steel pan-head self-drilling screws with a #2 Phillips drive. Available in Black or natural Stainless Steel finish. Both variations are stainless steel and include 100 screws.

STARTING AT $40.52

Color

Clear

WHAT’S INCLUDED:

#8 1/2″ Pan Head Stainless steel self drilling screws

Pack of 100 Screws

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

#8 × 1/2″ stainless steel pan-head self-drilling screws for compatible Alumission fence and gate assembly. The compact full-thread fastener combines a #2 Phillips drive with a self-drilling point for controlled fastening in compatible aluminum components.

Choose Black to coordinate with black powder-coated profiles or Stainless Steel for a natural silver finish. Both options are stainless steel, include 100 screws, and cost the same.

Questions & Answers

Find clear answers about Wall Topper sizing, 6-foot spans, included components, base-plate installation, concealed fasteners, style differences, finishes, maintenance and field fitting.

Sizing & Planning

What span is the aluminum Wall Topper designed for?

Each Wall Topper section is designed around a nominal 6-foot span between posts. The supplied horizontal slats are 6 feet long. Verify the actual field measurement before cutting, and plan one post per span plus one terminal post at the end of the run.

Which Wall Topper heights are available?

All five Wall Topper styles are offered in seven nominal heights: 1 foot, 1 foot 6 inches, 2 feet, 2 feet 6 inches, 3 feet, 3 feet 6 inches, and 4 feet. Select the height that fits the project, then review the exact style-specific material schedule shown on the product page.

How do I plan a multi-span Wall Topper run?

Divide the finished run into nominal 6-foot sections. Use one post for each span and add one terminal post at the end of the run. Confirm corners, end conditions, wall steps, field cuts, post locations, and local requirements before ordering.

How do I measure an existing wall for a Wall Topper?

Measure the total finished run, each individual wall section, corners, steps, end conditions, and the usable mounting surface. Mark proposed post locations and check for caps, slopes, drains, utilities, or other obstructions. Use actual field measurements—not only nominal wall dimensions—before ordering or cutting.

Can the 6-foot Wall Topper slats be cut for a shorter span?

Yes. The aluminum slats are supplied in 6-foot lengths and may be field cut to fit a shorter verified opening. Use suitable cutting equipment, keep cuts square, remove burrs, protect the finish, and confirm the finished post-to-post dimension before cutting.

Kit Contents & Style Options

What is included with an Alumission Wall Topper kit?

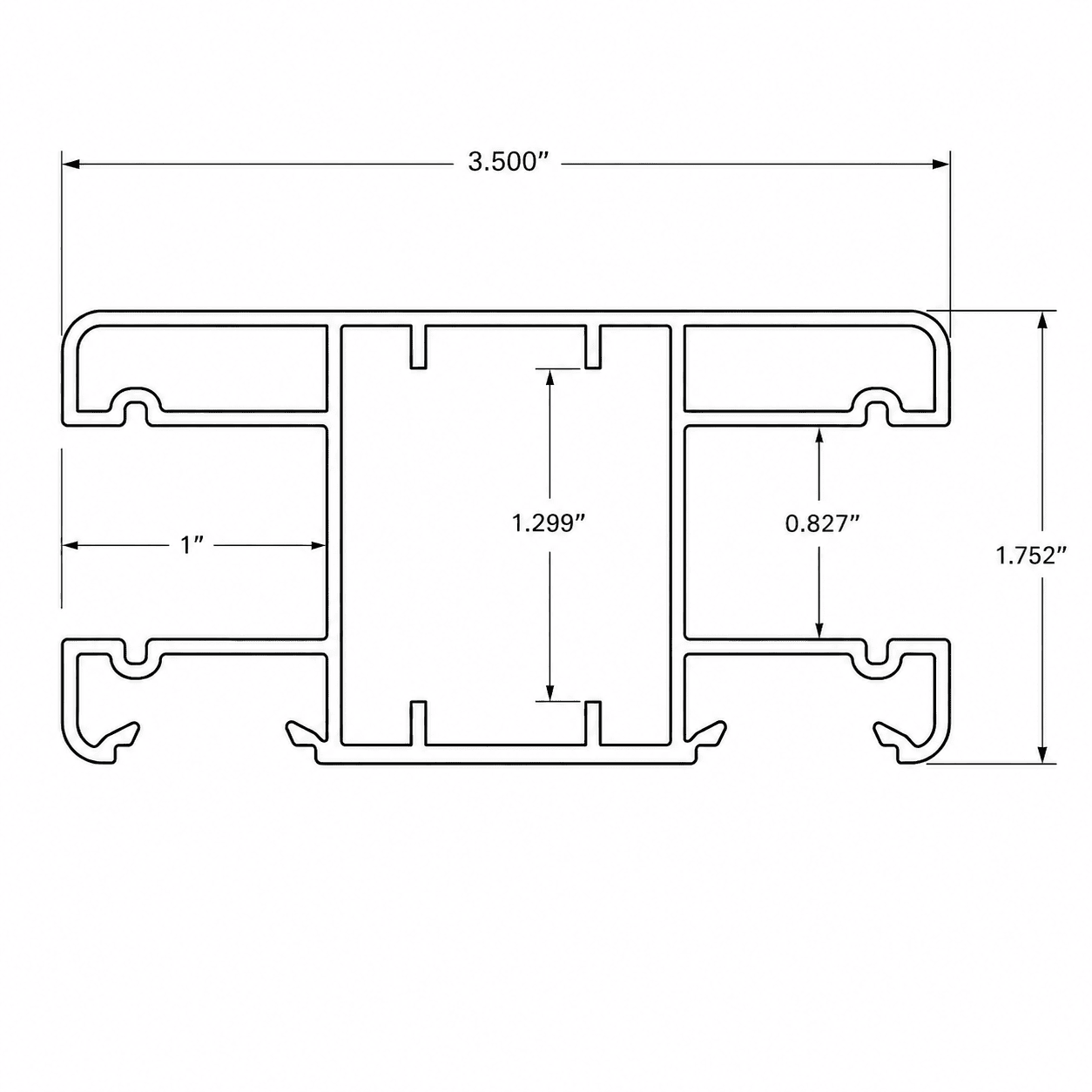

The selected kit includes Aluminum Post 2 Channels, two channel covers and one cap per post, an 18-inch zinc-coated steel post base and matching aluminum base cover per post, 6-foot aluminum slats in the selected style and height, the required pattern spacers where applicable, and stainless steel self-drilling assembly screws. Wall anchors are not included because the correct fastener depends on the wall material and project conditions.

How do Dallas, Los Angeles, Miami, New York, and San Francisco styles differ?

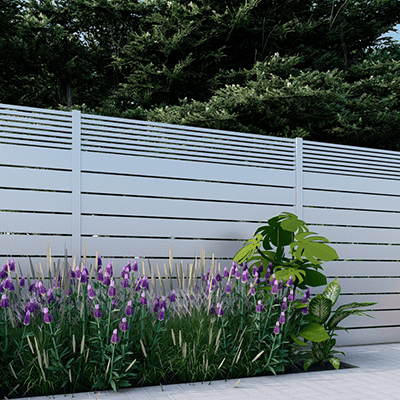

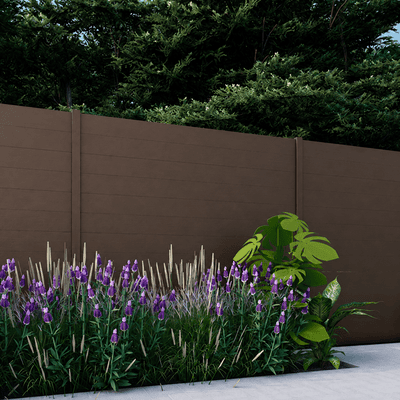

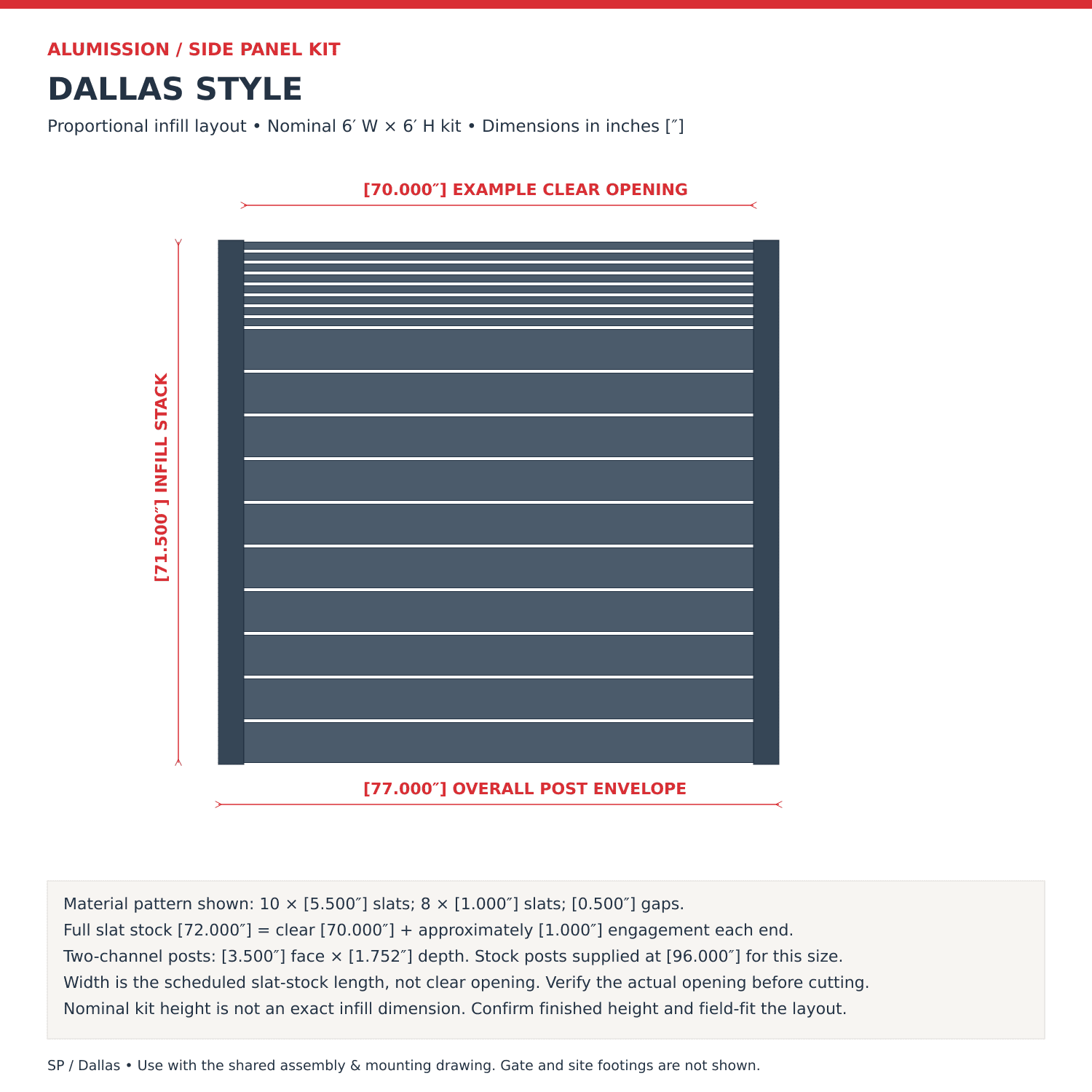

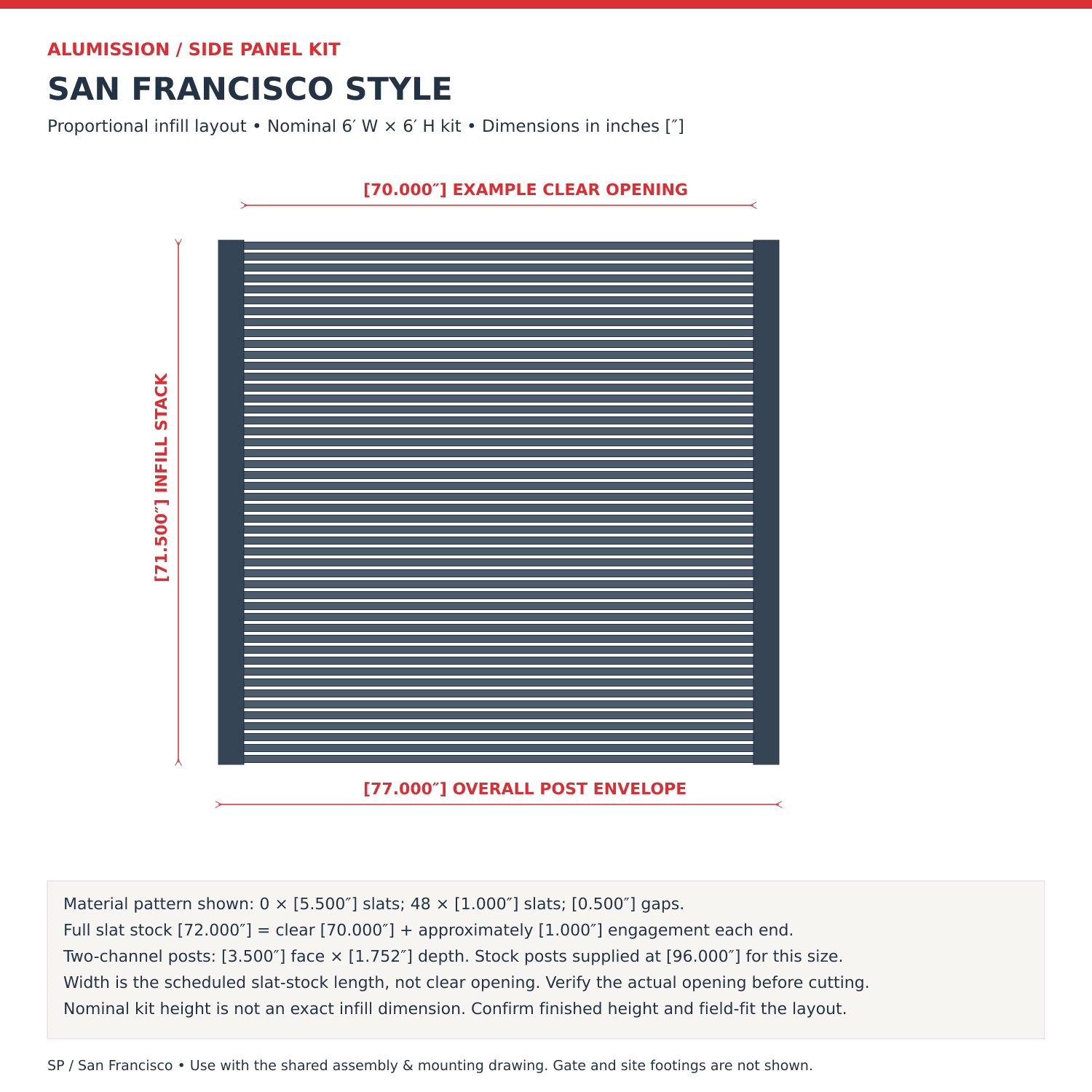

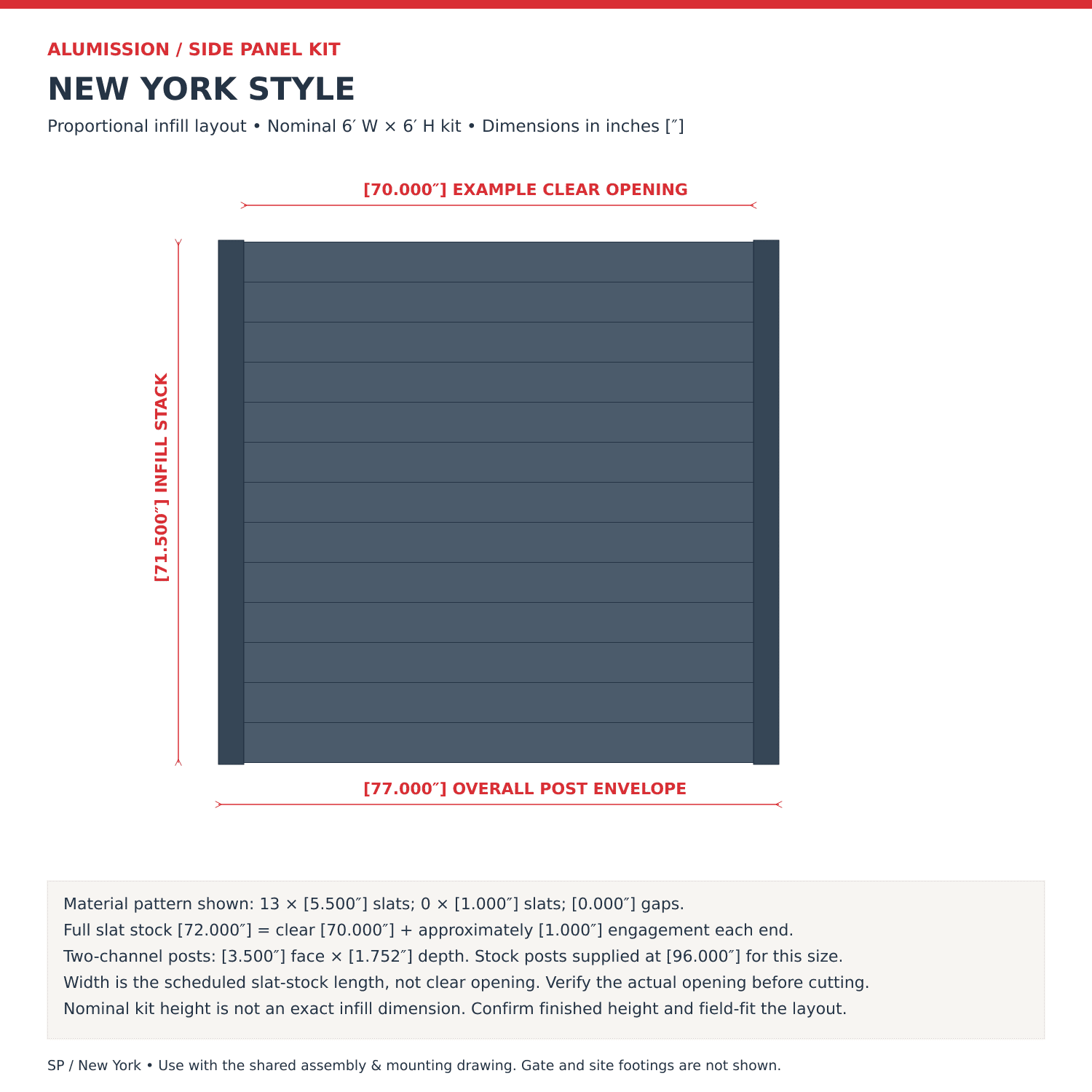

Dallas combines wide 5.5-inch slats with a four-slat 1-inch accent band. Los Angeles uses evenly spaced 5.5-inch slats. Miami centers a four-slat 1-inch accent band between wide slats. New York is a tight-stacked full-privacy design with size-specific finishing slats. San Francisco uses closely spaced 1-inch slats for a linear look. See the exact material schedule and proportional drawings on each style page.
