What are the Aluminum Spacers made from?

They are cut from the Alumission Aluminum Post Cover For Channels extrusion, which is made from 6063-T6 aluminum.

How many spacers are included?

Each purchased pack contains 50 spacers in the selected size and powder-coated finish.

Are all 50 spacers the same size?

Yes. A pack contains 50 spacers cut to the same ordered nominal length.

How are the spacers cut?

They are cut from the full-length profile using a CNC saw for consistent repeatable nominal dimensions.

What determines the gap between the slats?

The ordered spacer length establishes the planned gap between adjacent slats in the compatible channel.

What standard spacer sizes are available online?

The current standard selections are 1/4″, 1/2″, 1″, 1-1/2″, 2″, 2-1/2″, and 3-3/4″.

Can I order a custom spacer size?

Yes. Custom nominal spacer lengths can be produced for projects that need a dimension not listed among the standard selections.

Does a custom size need to be a round fraction?

No. The size does not need to be 1/2″, 1″, or another common fraction.

Can I order a size such as 1.154″?

Yes. A decimal dimension such as 1.154″ can be specified as the required nominal spacer length.

What should I verify before ordering a custom size?

Confirm the slat count, complete panel dimensions, post or frame channels, finished gap pattern, and required pack quantity before the pieces are cut.

Which Alumission posts accept these spacers?

The spacer profile fits compatible channels on the Post 2 Channels, Post 3 Channel, and Side Post profiles.

Can the spacers be used with a Gate Frame?

Yes. They fit compatible Gate Frame channels and can be used to create repeatable slat gaps.

Can they be used with horizontal slats?

Yes. They are suitable for horizontal designs when installed in the compatible post or frame channels.

Can they be used with vertical slats?

Yes. They can also be used for vertical layouts when the complete gate or fence assembly uses compatible channels.

Do they snap or slide into the channel?

The spacer cross-section matches the Post Cover For Channels interface and can be fitted into the compatible channel as required by the assembly sequence.

Are these spacers used for full-privacy projects?

No. Spacers intentionally create a gap and are intended for open or semi-privacy layouts.

Should they be used for New York Style?

No. Do not use these spacers for a full-privacy New York Style layout, where the slats close the space between them.

What colors are available?

Available finishes are Black, Bronze, White, Dark Gray, and Light Gray.

What is sold separately?

Posts, Side Posts, Gate Frames, slats, full-length cover profiles, screws, caps, bases, reinforcement, and installation hardware are sold separately.

How should the powder-coated spacers be cleaned?

Use mild soap and water with a soft cloth or sponge. Avoid abrasive pads, harsh chemicals, and strong solvents.

Aluminum Spacers – Pack of 50

0 (0) Reviews

A pack of 50 CNC-cut aluminum channel spacers made from the Post Cover For Channels profile, available in standard or custom nominal lengths for horizontal and vertical open or semi-privacy designs.

Price range: $28.94 through $97.06

Spacer Size

1/4"

1/2"

1-1/2"

2-1/2"

3-3/4"

Color

Clear

WHAT’S INCLUDED:

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

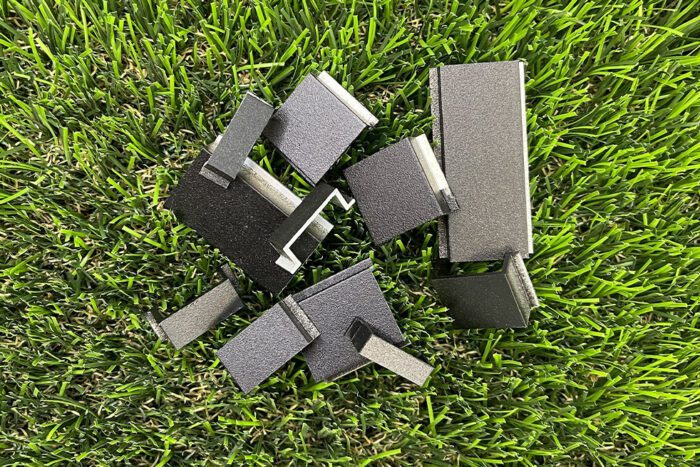

Aluminum Spacers are CNC-saw-cut pieces made from the Alumission Post Cover For Channels profile. Each pack contains 50 matching spacers in the selected size and finish.

Choose a standard size or request a custom nominal dimension such as 1.154″. Use these spacers with compatible Alumission posts, Side Posts, and Gate Frames in horizontal or vertical open and semi-privacy designs. Do not use them for full-privacy New York Style layouts.
