What is this post connector used for?

It creates a concealed 90° connection between Alumission aluminum posts. It can form a T-shaped joint or a corner in a fully framed assembly.

Does it fit every Alumission aluminum post?

It is designed to fit the compatible 1-1/4″ internal post cavity used across Alumission aluminum post profiles. Confirm the receiving cavity is clear before installation.

Can it be used for a sliding gate?

Yes. It can connect post profiles at 90° when building or extending a fully framed sliding-gate assembly.

Can it be used for swing gates and fences?

Yes. It can form concealed corners in fully framed swing gates and aluminum fence-frame assemblies.

Is this connector made from aluminum?

No. The connector body is steel and is powder coated black. It is designed to fit inside Alumission aluminum posts.

Will the connector show after installation?

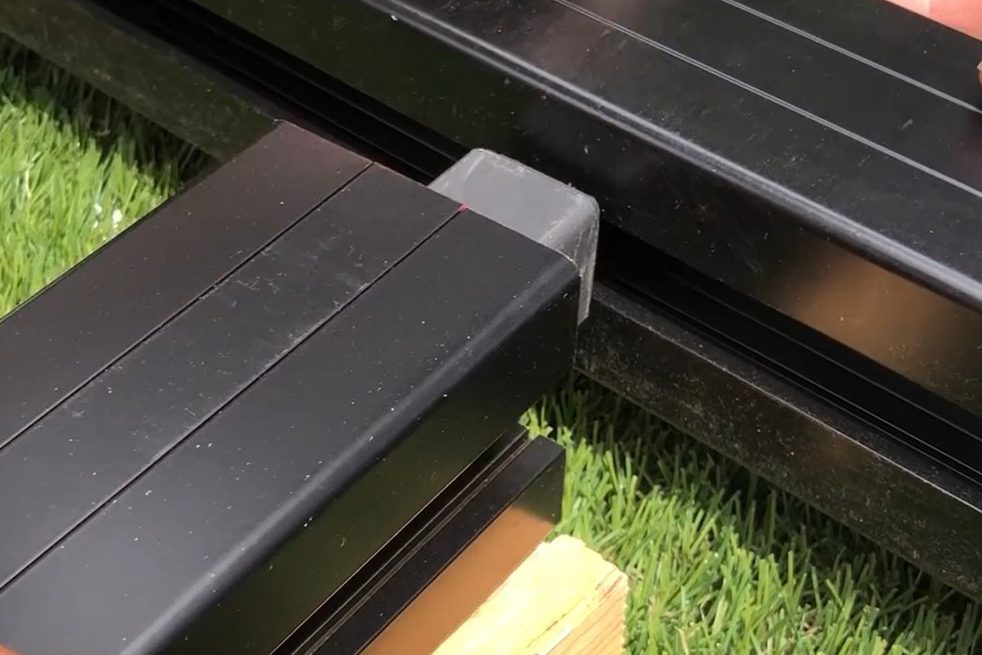

The main connector and bolt are concealed inside the joined profiles, producing a cleaner finished frame.

What size is the connector?

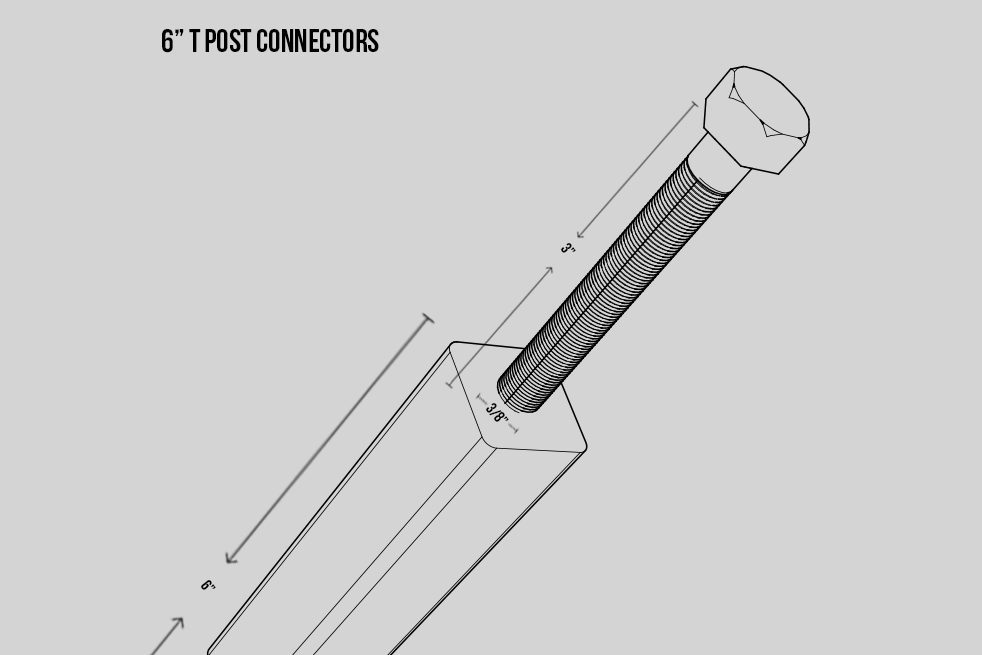

The connector is 1.250″ square with a 6.130″ drawing length, 0.125″ wall thickness, and a 0.375″ internal steel block.

No. The connector is intended for a bolted internal connection, so welding the aluminum profiles is not required.

How is the connector installed?

Slide the connector into the receiving post cavity, align the intersecting aluminum post at 90°, install the included bolt through the prepared connection, square the assembly, and tighten it securely.

Can I use it to connect posts in a T shape?

Yes. A T-shaped connection between a vertical and horizontal Alumission post is one of its primary uses.

Are additional screws included?

The connector includes the stainless steel bolt and washer. Any project-specific retaining screws or other hardware must be ordered separately unless specifically shown as included.

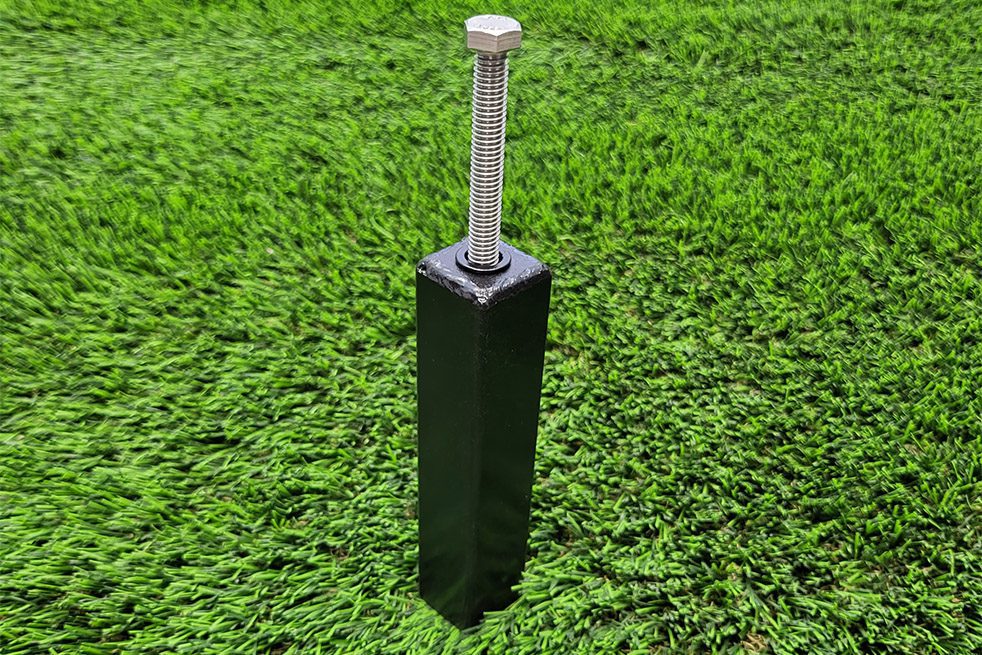

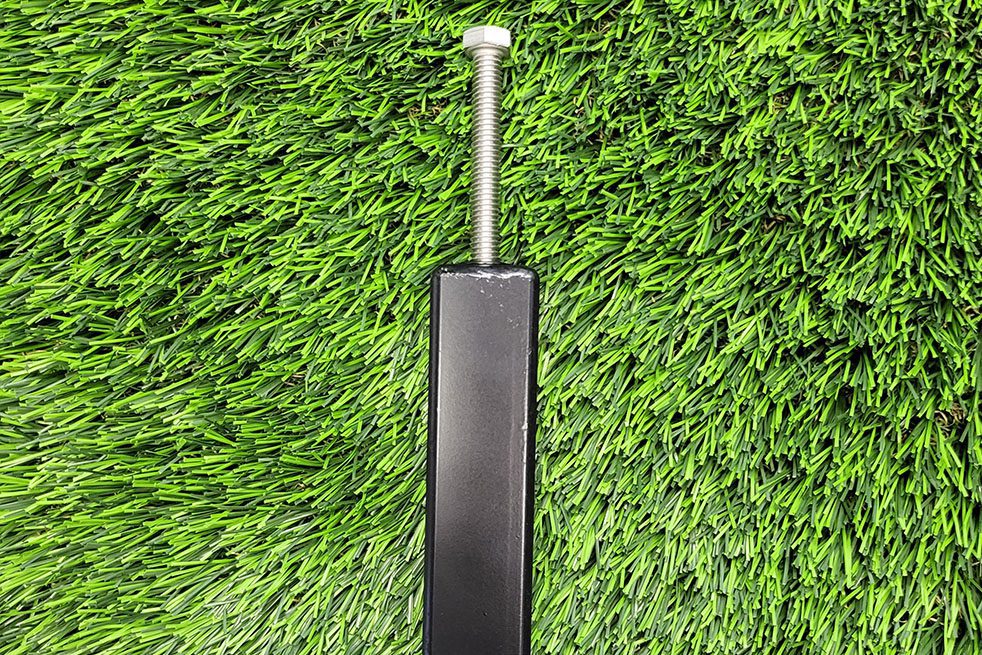

Black powder-coated steel T-connector for Alumission aluminum posts with stainless steel bolt and washer

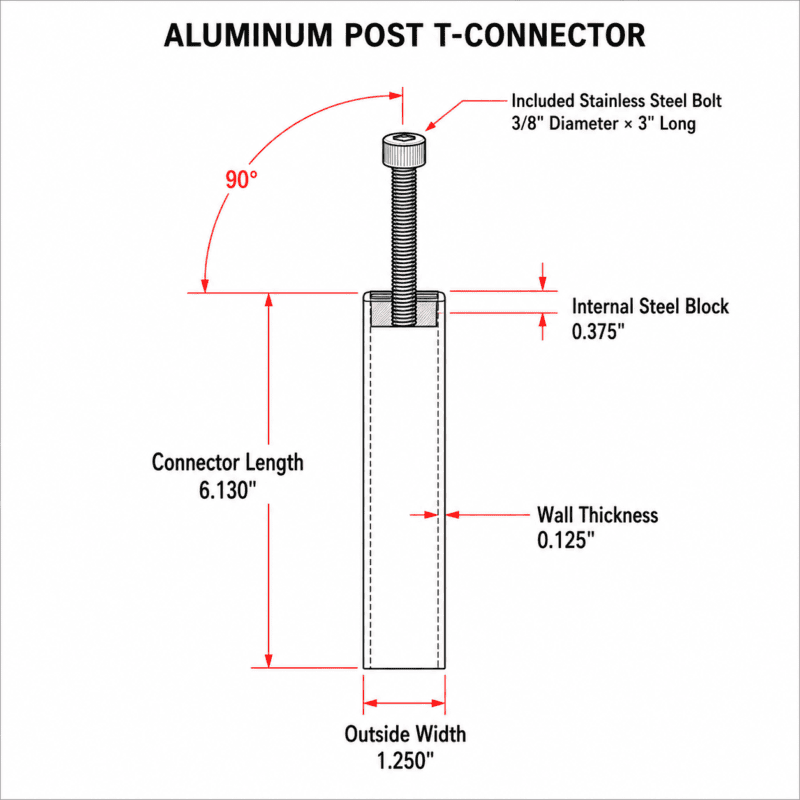

Technical drawing of steel T-connector for aluminum posts with dimensions in inches

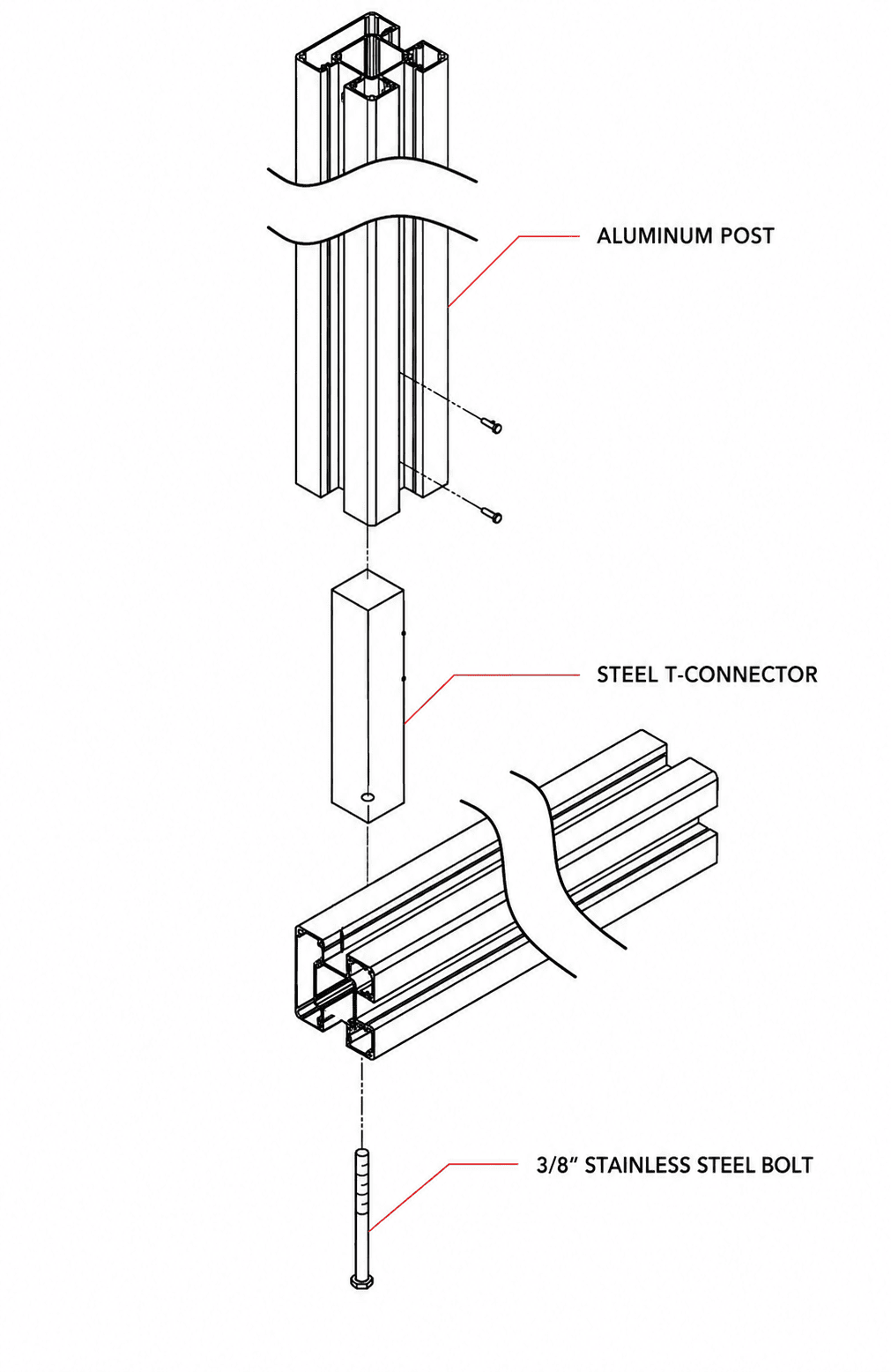

Exploded installation drawing showing steel T-connector joining Alumission aluminum posts with stainless steel bolt

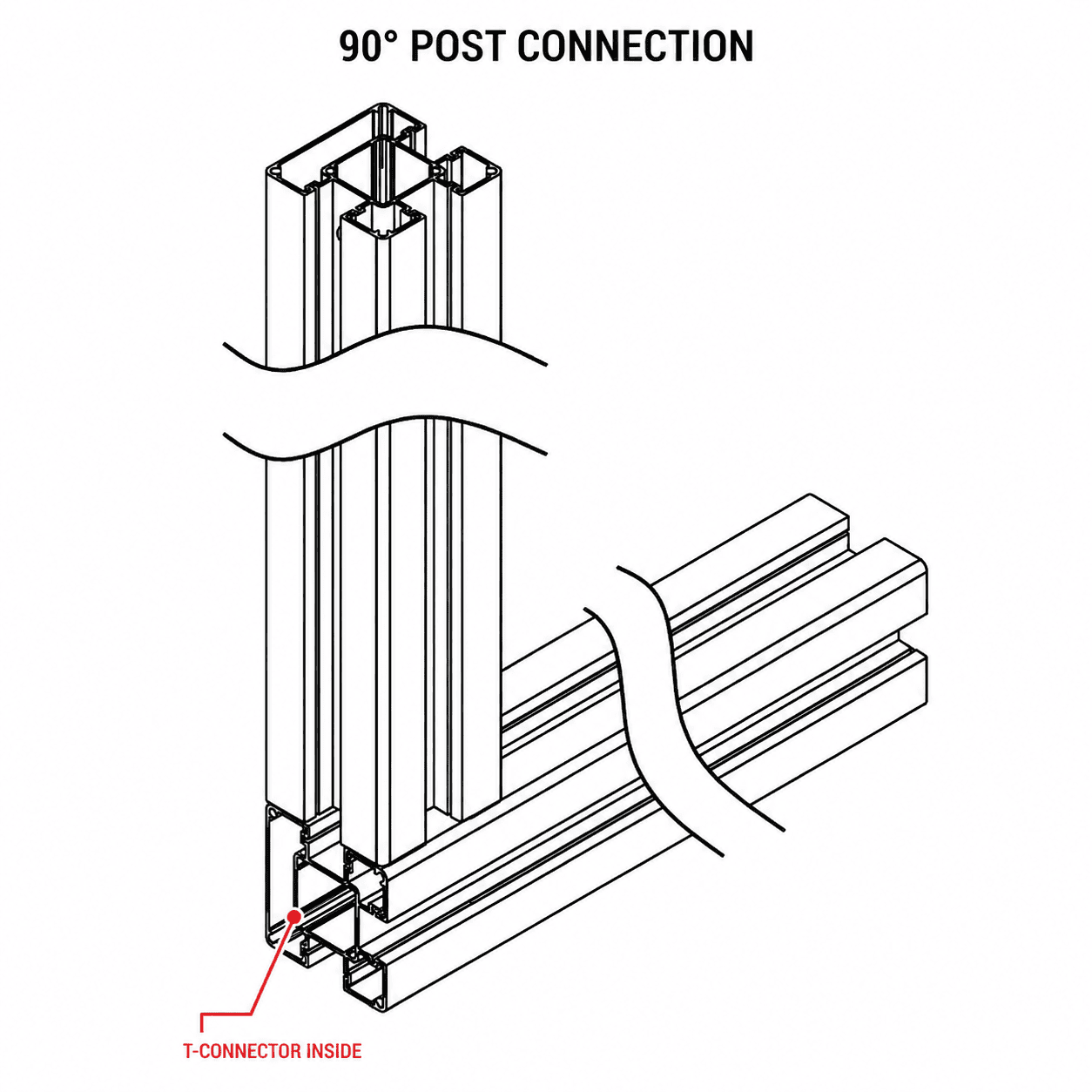

Technical illustration showing a concealed T-connector joining Alumission aluminum posts at 90 degrees

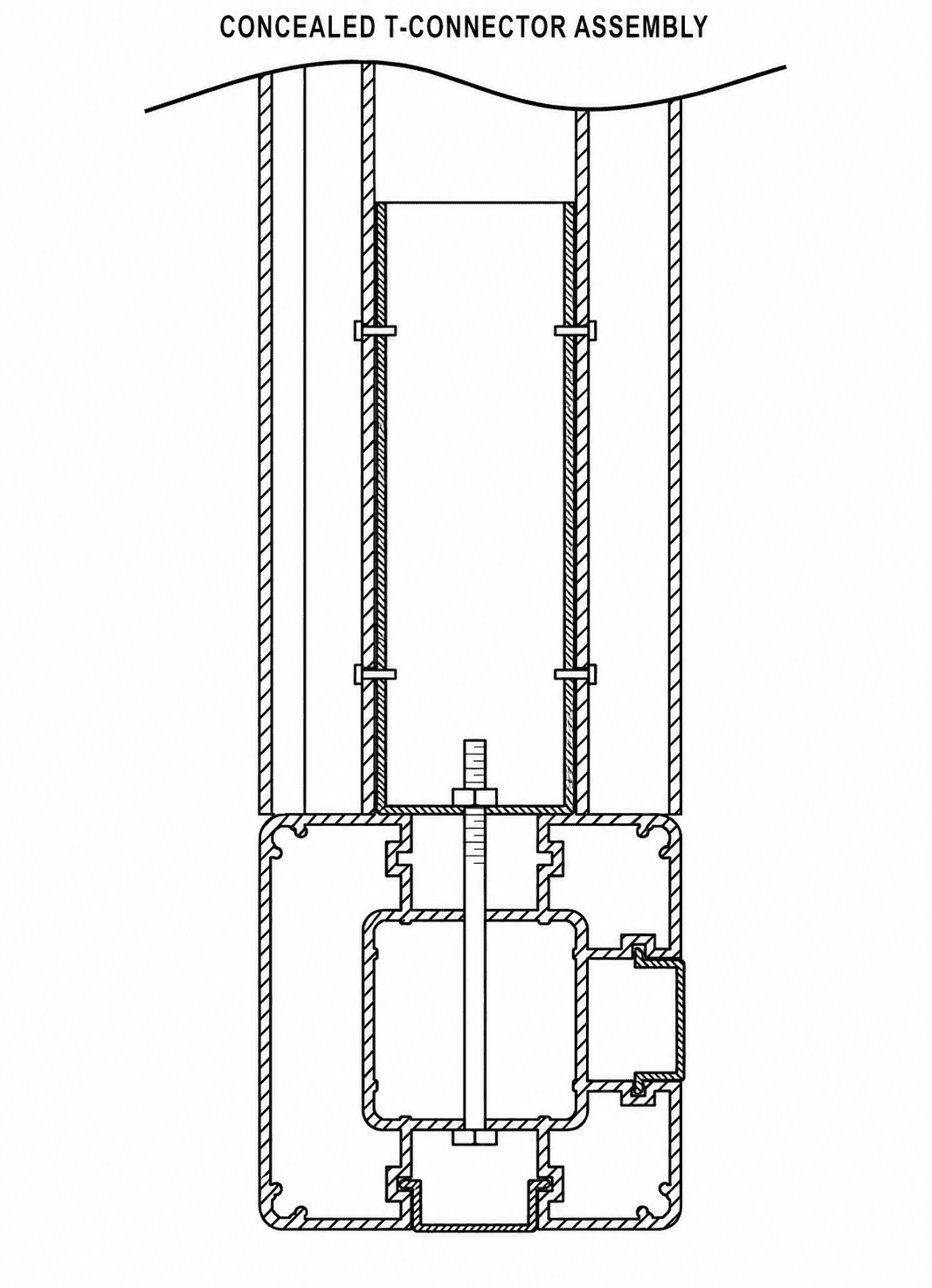

Section drawing of concealed steel T-connector inside Alumission aluminum post profiles without numbered callouts

Steel T-Connector for Aluminum Posts

Q: What hardware is included?

One 3/8″ diameter × 3″ stainless steel socket-head bolt and washer are included.

0 (0) Reviews

Concealed steel T-connector for Alumission aluminum posts. Creates 90° T or corner connections for framed gates and fences. Black powder-coated steel with an included 3/8″ × 3″ stainless steel bolt and washer.

$28.94

WHAT’S INCLUDED:

One black powder-coated steel T-connector with one 3/8″ diameter × 3″ stainless steel socket-head bolt and washer.

Box Weight

Box Dimension

TECHNICAL SPECIFICATIONS & INSTALLATION

The Steel T-Connector for Aluminum Posts creates a clean, concealed 90° connection between Alumission post profiles. Use it for T-shaped connections or corners in sliding gates, fully framed swing gates, and aluminum fence frames.

The 1.250″ square steel connector is powder coated black and installs inside the post cavity. One 3/8″ diameter × 3″ stainless steel socket-head bolt and washer are included. No welding is required for the intended bolted installation.
