How do I choose the right sliding gate kit size?

Measure the clear vehicle opening and choose a kit width that covers it: up to 12′, 16′, or 20′, with a 4′, 5′, or 6′ height. The profiles are cut to fit. Confirm the full gate layout, tail and available runback space before cutting.

Is the listed width the opening or the overall gate length?

The size selector describes the opening-width group. In Alumission’s assembly video, the top and bottom frame members are cut to the measured opening plus a 24″ tail. For example, a 12′ opening uses a 14′ horizontal frame in that demonstrated layout.

How much space does a sliding gate need beside the driveway?

Provide an unobstructed runback area that can accommodate the complete gate as it opens, including its tail, guide and stopping arrangement. Measure the actual assembled gate and full travel; opening width alone is not enough to plan the installation.

Can I cut the gate to a smaller size?

Yes. The frame and slats are cut during assembly. Choose the suitable width group and height, then follow the measured cut plan. Cutting the kit smaller does not reduce its listed price.

Can this gate be installed on a sloping driveway?

A wheel-and-track gate needs a properly planned rolling path. A slope across the gate’s travel can affect alignment, ground clearance and safe operation. Have your installer evaluate the site rather than assuming the gate can follow the driveway slope.

Is this a cantilever gate?

This kit uses V-groove wheels and ground V-track. It is not sold as a trackless cantilever system; the 24″ tail shown in the assembly video does not turn it into one.

What is the sliding gate frame made from?

Alumission Aluminum Post 2 Channels forms the top, bottom, front, rear and center frame members. One or more center members divide the opening into slat bays. Slats are captured within the frame channels.

What screws connect the gate frame?

Use #8 screws for the aluminum frame and slat assembly connections shown in the video. The galvanized steel extension tubes use #12 screws. These fasteners have different jobs and should not be interchanged.

Does the gate require welding?

The demonstrated gate assembly uses cut aluminum profiles, screws, corner braces and steel extension inserts, without welding the aluminum gate frame. Site work for the track, supports or automation is separate.

How do I calculate the slat cut length?

For the equal-width bays demonstrated in the video: slat length = (opening width − 5″ − 1.5″ × number of center posts) ÷ (number of center posts + 1). Use inches throughout and confirm your frame layout before cutting the full batch.

How many center posts does my gate need?

Center members reinforce the slats and divide the gate into bays. The number depends on the selected width and assembly layout. Follow the size-specific parts list and cut plan; do not apply a single center-post count to every width.

How is a long frame extended?

The video joins frame sections with a 1¼″ square, 4′ galvanized steel tube, inserting approximately 2′ into each profile. It shows three #12 screws on each side of the joint. Keep the channels aligned and the joint flush.

Why is the front frame cut shorter than the finished gate height?

The video subtracts 3½″ from the intended overall height for its 3″ V-groove wheel and track arrangement. Confirm the actual wheel, track and finished-ground clearances before using that allowance.

What happens if the last slat does not fit the height?

The video trims the final slat lengthwise as needed, leaving approximately ⅞″ above the vertical members to engage the top frame channel. Check the fit before securing the top frame.

When should the post covers and snap covers be installed?

Slide the front outer-channel cover into place before closing the top frame, as shown in the video. Finish the remaining channel covers, screw-track snap covers and tail caps after the frame is secured.

Does the video cover the complete site installation?

The video covers measuring, cutting and assembling the gate leaf. Ground-track anchoring, final guides and stops, and motor installation require their own site-specific installation steps.

Which colors can I order?

Choose Black, Bronze, Dark Gray, Light Gray, White or Wood. The Wood option uses wood-look aluminum slats with a black frame; it is not a timber gate.

Are the wheels included when I choose No Hardware?

Yes. The gate kit’s wheels remain included. No Hardware means the optional track, catcher, guide assembly and motor-chain bracket package is not added.

What does Add Hardware include?

The package adds stainless-steel V-track sections, a gate catcher, a dual-roller guide assembly and a pair of motor-chain attachment brackets. The Product Details tab lists the exact quantities for the selected width group.

How much does the hardware option add?

Select Add Hardware to see the price including the V-track, catcher, guide assembly and chain-bracket package. No Hardware excludes that package but still includes the wheels and corner braces.

Is a gate motor included?

No. The optional hardware includes chain attachment brackets, not a motor, chain, controls, power supply or safety sensors. Select an operator for the finished gate’s weight, length, use and site conditions.

Can the gate be automated?

Automation must be designed around the finished gate and installed with the operator manufacturer’s required guides, stops and entrapment protection. Use a qualified gate-automation installer and provide a separate pedestrian entrance.

How is the kit price calculated?

The listed price is based on the components included for your selected style, size, finish and hardware option. Select the exact variation above to see its price and packing list.

What is the starting price?

This style starts at $2848.03 for Up to 12' Wide x 4' High, Black, No Hardware, before applicable checkout charges. Select your configuration above for its price.

How do I maintain an aluminum sliding gate?

Clean the coated aluminum gently with water and mild soap, rinse and dry. Keep the V-track free of stones and debris, and inspect screws, wheels, guides and stops periodically. Follow the operator manufacturer’s maintenance instructions if automated.

Aluminum does not develop iron rust. The complete installation also contains steel and stainless-steel components, which still need appropriate care. Avoid abrasive cleaners and repair coating damage using suitable manufacturer guidance.

Which style offers the privacy I want?

Compare the style photos and its slat-and-spacer layout. Wider gaps allow more visibility; closer slats provide more screening. Privacy and wind exposure depend on the actual configuration, not the style name alone.

Is the kit supplied as a finished, assembled gate?

No. It is a cut-to-fit assembly kit. Plan for measuring, cutting, squaring and fastening the frame and slats, followed by installation of the gate’s rolling and guide system.

Can I match the sliding gate to a fence or side panel?

Alumission offers matching named styles and finishes across its gate, fence and side-panel ranges. Compare the selected style’s slat pattern, spacing and finish before ordering adjoining sections.

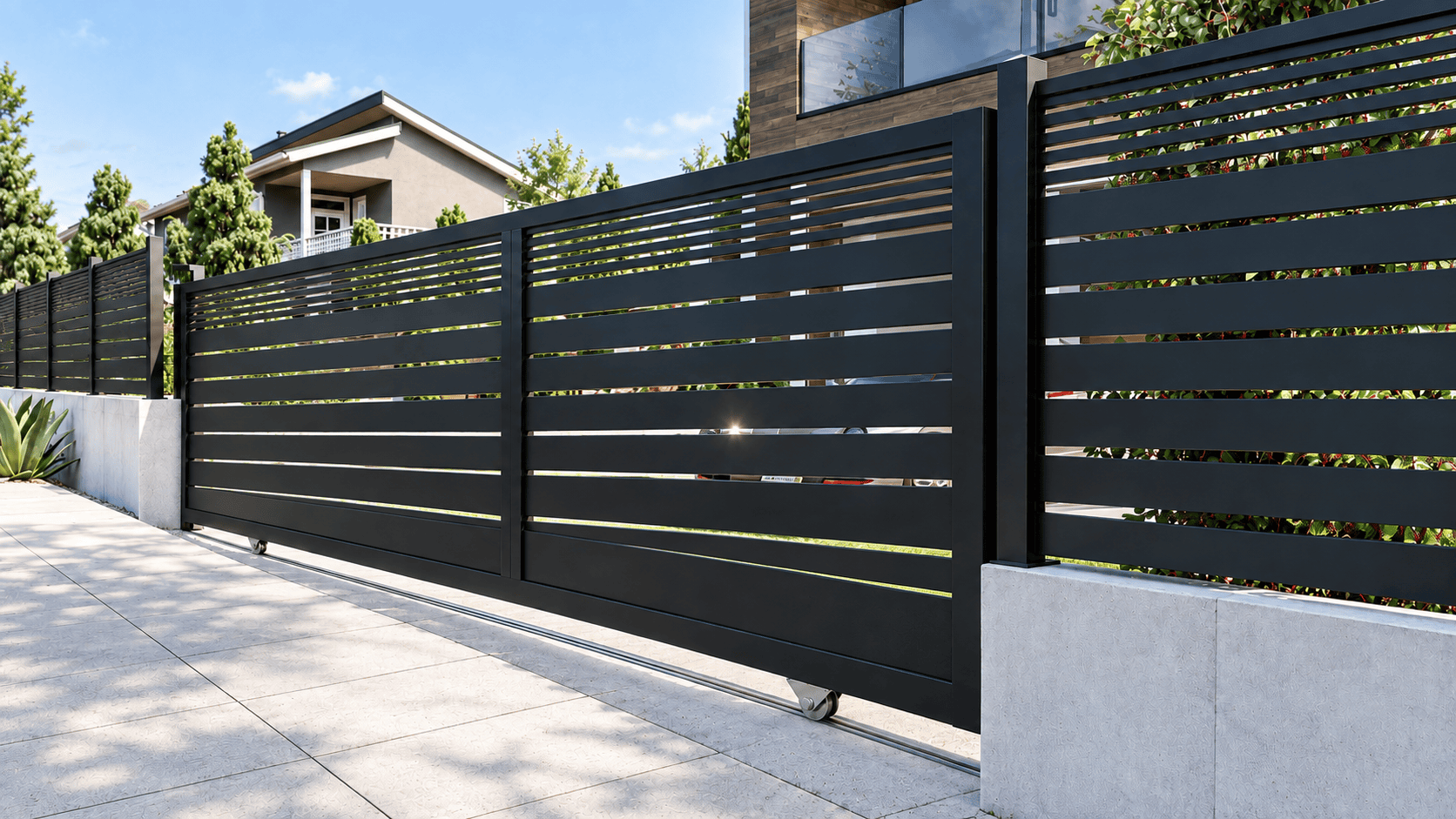

Aluminum Sliding Gate Kit – Dallas Style in Black – illustrative sliding gate design

Watch Alumission’s complete DIY aluminum sliding gate assembly video

Semi-Private Aluminum Sliding Gate – Dallas Style

0 (0) Reviews

Choose Dallas Style for a semi-private aluminum sliding gate with broad lower slats and narrow accents above.

Build a cut-to-fit Dallas style aluminum sliding driveway gate. Choose an opening width up to 12′, 16′ or 20′ and a 4′, 5′ or 6′ height in six finishes. V-groove wheels are included; track and guide hardware are optional. For manual operation or compatible motorized automation. Motor and automation equipment are not included. Cutting, assembly and installation are required.

STARTING AT $2,600.78

Color

Size

Hardware

Clear

Semi-Private Aluminum Sliding Gate – Dallas Style

Build a coordinated vehicle entrance with this cut-to-fit Alumission sliding gate kit. Compare the Dallas design with our five aluminum sliding driveway gate styles, then choose your opening width, height, finish and optional hardware package.

Manual operation or motorized automation

This is a gate assembly kit for a wheeled, track-guided installation. It can be planned for manual use or a compatible automatic sliding gate operator. The motor, drive chain, controls, power supply and safety sensors are not included. Have a qualified gate-automation installer match the operator to the completed gate, expected usage and site conditions.

Plan your driveway or vehicle entrance

For a residential driveway, confirm the opening and the clear space beside it for the gate to slide. Planning a commercial or industrial entrance? Contact Alumission with your measurements and project requirements to confirm suitability before ordering. Choose the finished gate configuration for the site rather than assuming every size suits every installation.

A frame built to capture and support the slats

The top, bottom and vertical frame members are made from Alumission Aluminum Post 2 Channels. One or more center members reinforce the slats and divide the gate into bays. The slats fit into the horizontal and vertical frame channels; #8 screws secure the aluminum assembly connections. Galvanized steel inserts and #12 screws join frame extensions where required.

The system uses Alumission’s aluminum slats and spacers, with the profile widths and pattern specified for your selected style. It is a screw-assembled kit that you cut and assemble to fit your opening.

Choose your size, finish and hardware

Available for openings up to 12′, 16′ or 20′ wide, each at 4′, 5′ or 6′ high. The assembly video adds a 24″ tail to the measured opening when cutting the horizontal frame. Allow for that complete gate length and its runback space.

Choose Black, Bronze, Dark Gray, Light Gray, White or Wood. Wood uses wood-look aluminum slats with a black frame. The price depends on the components, finish and hardware option included in your selected kit. Cutting the kit smaller does not change its price.

Wheels remain included with No Hardware. Add Hardware adds the track, catcher, guide and chain-bracket package: included in the displayed price when you select Add Hardware. Motor and automation equipment are not included.

Watch the complete Alumission sliding gate assembly guide →

What’s included

WHAT’S INCLUDED:

Find Your Exact Kit Contents

Open the link for your size, color and hardware option, then expand “View all included items and packing list” beside the price. The list gives every included item, quantity, supplied stock length and finish. Share that exact variation link with the order when packing.

Hardware options: Both options include the V-groove wheels, four corner L braces and assembly fasteners. Add Hardware also includes the listed V-track sections, catcher, guide-roller assembly and one set of two motor-chain attachment brackets. No Hardware excludes that optional package. The motor and automation equipment are not included.

Finish guide: Black, Bronze, White, Dark Grey and Light Gray kits use matching aluminum posts, covers, caps, spacers and slats. Wood kits use wood-look aluminum slats with Black aluminum posts, covers, caps and spacers. Catchers and chain brackets match the kit color, or are Black for Wood kits. The #8 and #12 assembly screws are Black for Black, Bronze, Dark Grey and Wood kits, and Silver for White and Light Gray kits. Steel inserts are galvanized; corner braces, wheels and V-track retain their stainless-steel finish. The guide assembly has a Black bracket with nylon rollers.

Dallas sliding gate variation links
Size	Hardware option	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 4′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 4′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 5′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 5′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 6′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12′ Wide x 6′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 4′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 4′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 5′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 5′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 6′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16′ Wide x 6′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 4′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 4′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 5′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 5′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 6′ High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20′ Wide x 6′ High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood

Open the matching size below to see exactly what is supplied. Quantities for items labeled “Pack” or “Set” refer to packs or sets.

Up to 12′ Wide x 4′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	2
Aluminum Post 2 Channel	6′	5
Aluminum Snap Cover For Post 2 Channels	8′	4
Aluminum Snap Cover For Post 2 Channels	6′	10
Aluminum Post Cover For Channels	6′	5
Aluminum Post Cover For Channels	8′	2
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	2
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	6′	12
Aluminum Spacers 1/2″ – Pack of 25	—	2
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	6′	8

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 16′ Wide x 4′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	6
Aluminum Snap Cover For Post 2 Channels	8′	12
Aluminum Post Cover For Channels	8′	6
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	8′	12
Aluminum Spacers 1/2″ – Pack of 25	—	2
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	8′	8

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 20′ Wide x 4′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	4
Aluminum Post 2 Channel	6′	7
Aluminum Snap Cover For Post 2 Channels	8′	8
Aluminum Snap Cover For Post 2 Channels	6′	14
Aluminum Post Cover For Channels	6′	3
Aluminum Post Cover For Channels	8′	5
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	5′	24
Aluminum Spacers 1/2″ – Pack of 25	—	4
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	2
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	5′	16

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	4
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 12′ Wide x 5′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	2
Aluminum Post 2 Channel	6′	5
Aluminum Snap Cover For Post 2 Channels	8′	4
Aluminum Snap Cover For Post 2 Channels	6′	10
Aluminum Post Cover For Channels	6′	5
Aluminum Post Cover For Channels	8′	2
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	2
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	6′	16
Aluminum Spacers 1/2″ – Pack of 25	—	2
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	6′	8

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 16′ Wide x 5′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	4
Aluminum Post 2 Channel	6′	4
Aluminum Snap Cover For Post 2 Channels	8′	8
Aluminum Snap Cover For Post 2 Channels	6′	8
Aluminum Post Cover For Channels	6′	4
Aluminum Post Cover For Channels	8′	4
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	8′	16
Aluminum Spacers 1/2″ – Pack of 25	—	2
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	8′	8

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 20′ Wide x 5′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	4
Aluminum Post 2 Channel	6′	7
Aluminum Snap Cover For Post 2 Channels	8′	8
Aluminum Snap Cover For Post 2 Channels	6′	14
Aluminum Post Cover For Channels	6′	3
Aluminum Post Cover For Channels	8′	5
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	5′	32
Aluminum Spacers 1/2″ – Pack of 25	—	4
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	2
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	5′	16

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	4
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 12′ Wide x 6′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	2
Aluminum Post 2 Channel	6′	5
Aluminum Snap Cover For Post 2 Channels	8′	4
Aluminum Snap Cover For Post 2 Channels	6′	10
Aluminum Post Cover For Channels	6′	5
Aluminum Post Cover For Channels	8′	2
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	2
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	6′	18
Aluminum Spacers 1/2″ – Pack of 25	—	2
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	6′	16

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 16′ Wide x 6′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	4
Aluminum Post 2 Channel	6′	4
Aluminum Snap Cover For Post 2 Channels	8′	8
Aluminum Snap Cover For Post 2 Channels	6′	8
Aluminum Post Cover For Channels	6′	4
Aluminum Post Cover For Channels	8′	4
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	8′	18
Aluminum Spacers 1/2″ – Pack of 25	—	3
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	1
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	8′	16

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	2
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Up to 20′ Wide x 6′ High

Included in the kit

Component	Supplied length	Quantity
Aluminum Post 2 Channel	8′	4
Aluminum Post 2 Channel	6′	7
Aluminum Snap Cover For Post 2 Channels	8′	8
Aluminum Snap Cover For Post 2 Channels	6′	14
Aluminum Post Cover For Channels	6′	3
Aluminum Post Cover For Channels	8′	5
1-1/4″ × 1-1/4″ Galvanized Square Steel Tube – 1/8″ Wall	4′	4
Aluminum Cap For Post 2 Channel	—	4
5.5″ Aluminum Slat	5′	36
Aluminum Spacers 1/2″ – Pack of 25	—	6
#8 × 1/2″ Stainless Steel Pan-Head Self-Drilling Screws – Pack of 100	—	2
#12 × 1″ Stainless Steel Self-Drilling Screws – Pack of 50	—	1
Stainless Steel L Brace For Corners	—	4
3″ Stainless Steel V-Groove Sliding Gate Wheel	—	2
1″ Aluminum Slat	5′	32

Hardware package — included only with Add Hardware

Component	Supplied length	Quantity
8′ 304 Stainless Steel Sliding Gate V-Track with Anchor Rods	8′	4
Aluminum Sliding Gate Catcher with Protective Foam	—	1
6″ Adjustable Sliding Gate Guide Roller Assembly – Dual Nylon Rollers	—	1
Sliding Gate Motor Chain Attachment L-Brackets – Set of 2	—	1

Box Weight

Varies by selected size.

Box Dimension

Varies by supplied profile lengths and selected size.

TECHNICAL SPECIFICATIONS & INSTALLATION

Questions about this product?

For help confirming compatibility, sizes or required components, contact Alumission technical support with the product name and your project details.

Discussions

There are no questions yet.

Ask a question Cancel reply

Reviews

There are no reviews yet.

Be the first to review “Semi-Private Aluminum Sliding Gate – Dallas Style”

Kit opening-width groups	Up to 12′, 16′ or 20′; each available at 4′, 5′ or 6′ high
Frame profile	Aluminum Post 2 Channels, used horizontally and vertically, including center reinforcement members
Post section	3.500″ × 1.752″; approximately 0.827″ channel clearance; 1.299″ square center cavity
Slat system	Alumission 1″, 2.5″ or 5.5″ aluminum slat profiles and matching spacers, as specified by the selected style. Slats seat within the frame channels.
Assembly joints	#8 screws at aluminum assembly connections; stainless-steel corner braces at the corners shown in the video
Frame extension joints	1¼″ square galvanized steel inserts joined with #12 screws; the video demonstrates 4′ inserts with approximately 2′ engagement into each adjoining profile
Rolling system	3″ V-groove wheels on compatible V-track; ground-supported sliding configuration
Finish options	Black, Bronze, Dark Gray, Light Gray, White or Wood. Wood-look slats use a black frame.

Top and bottom horizontal frame	Measured opening width + 24″ tail
Front vertical frame	Desired overall height from the ground − 3½″, for the wheel-and-track arrangement demonstrated
Center and rear vertical frame	Front vertical length − 7″, fitting between the 3½″ top and bottom frame members
Equal-bay slat length	(W − 5″ − 1.5″ × N) ÷ (N + 1), where W is the measured opening in inches and N is the number of center posts
Worked slat example	123½″ opening with one center post: (123½ − 5 − 1½) ÷ 2 = 58½″ per slat

Size	Hardware option	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 4' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 4' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 5' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 5' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 6' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 12' Wide x 6' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 4' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 4' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 5' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 5' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 6' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 16' Wide x 6' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 4' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 4' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 5' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 5' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 6' High	No Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood
Up to 20' Wide x 6' High	Add Hardware	Black	Bronze	White	Dark Grey	Light Gray	Wood

Semi-Private Aluminum Sliding Gate – Dallas Style

What’s Included in Your Kit
