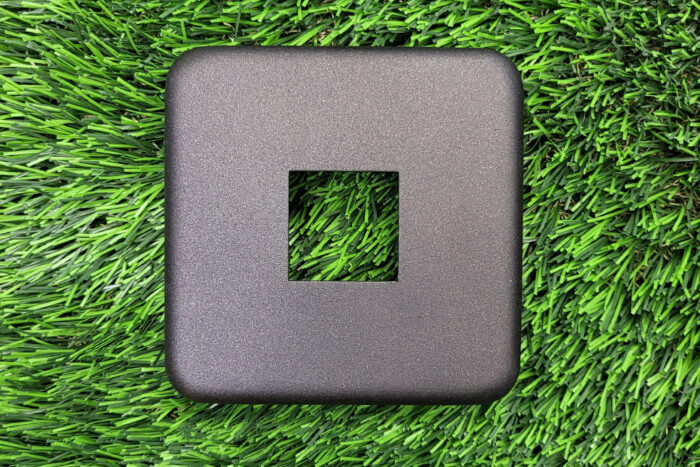

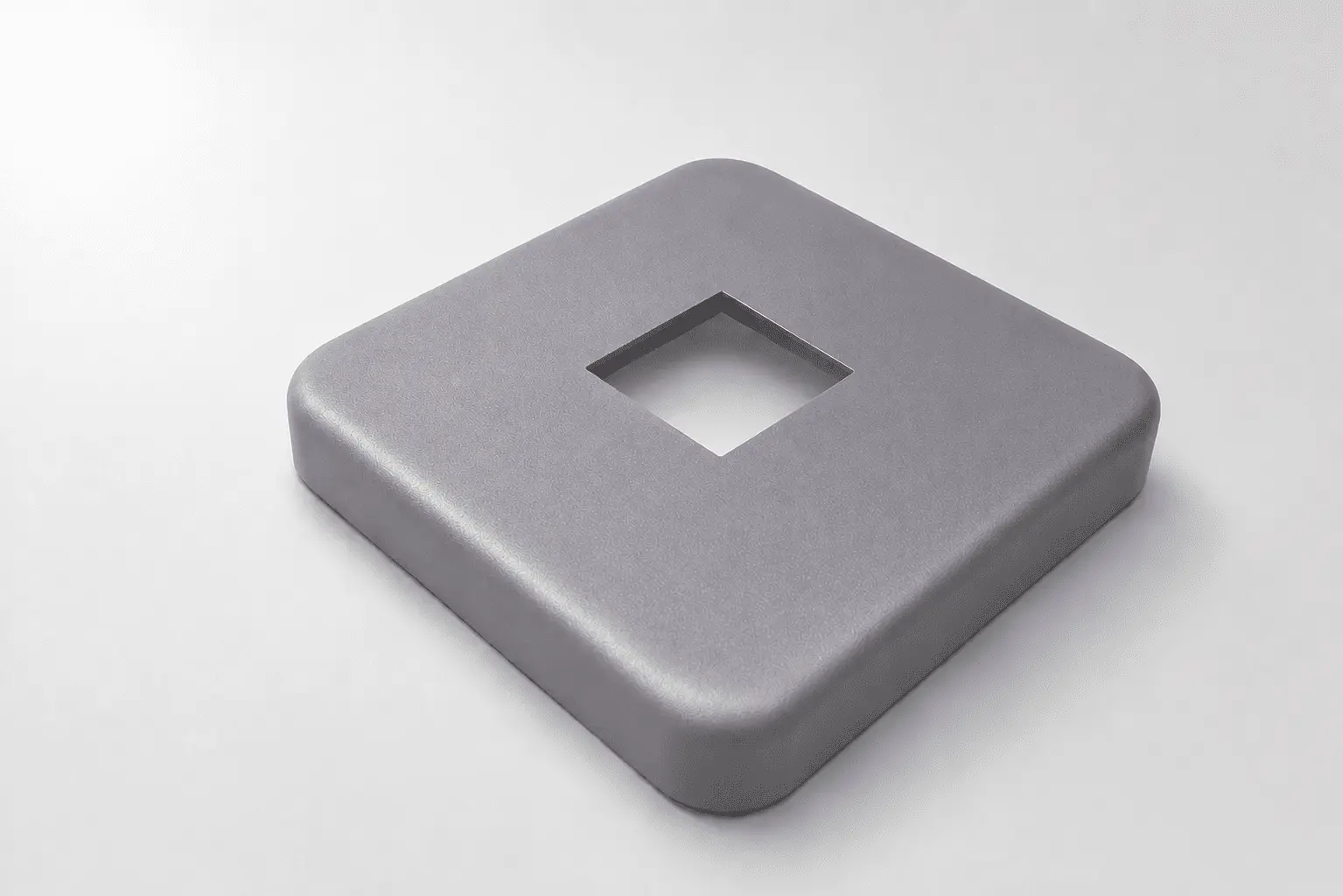

What is the Aluminum Base Cover used for?

It covers the four screws or anchor bolts that secure a compatible base plate, giving the bottom of the post a clean finished appearance.

Does the base cover replace the base plate?

No. The base cover is a finishing component. The structural base plate, steel stem, anchors, and post are separate components.

What steel stem fits through the opening?

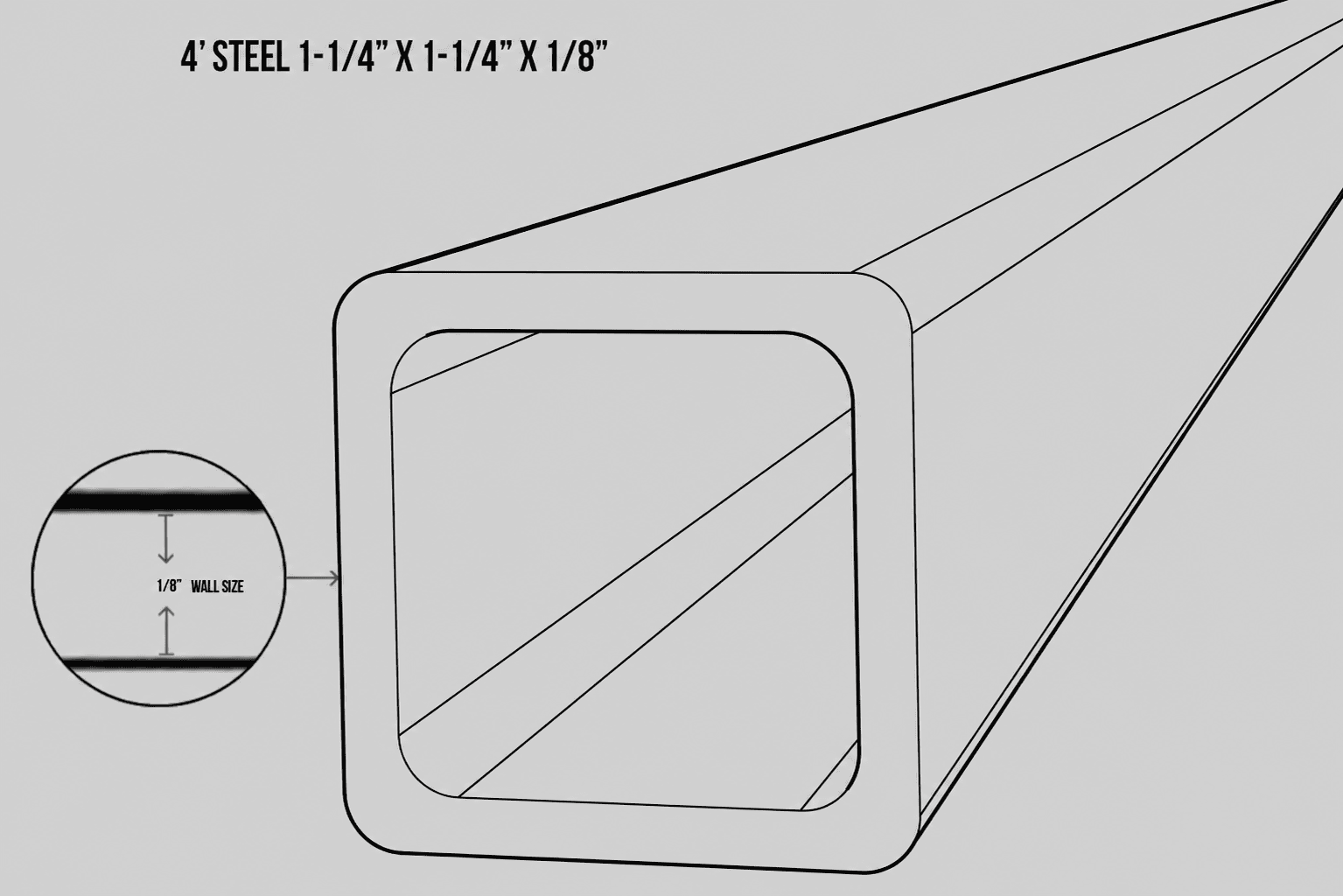

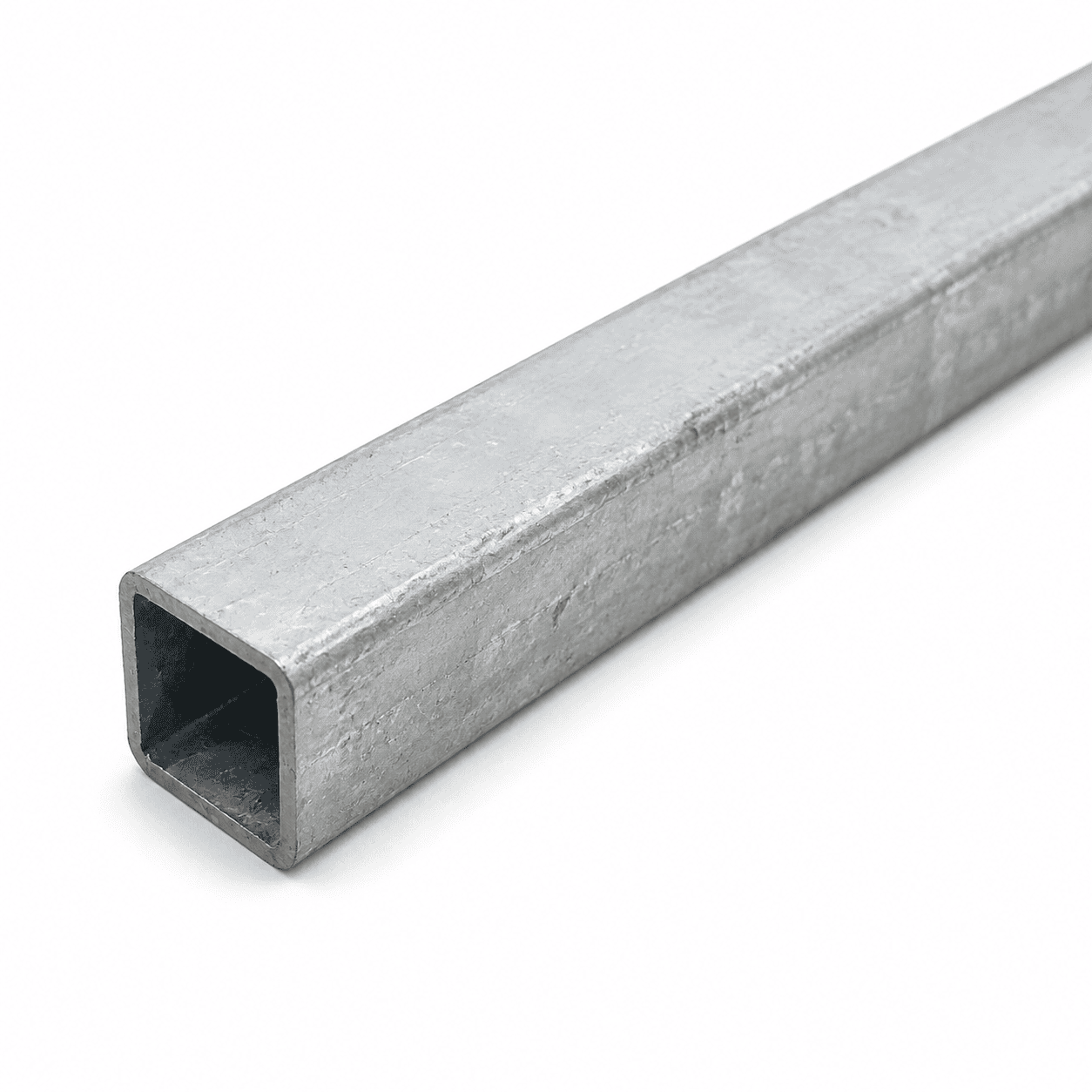

The 1.310″ square center opening fits over the 1-1/4″ × 1-1/4″ steel stem attached to the compatible base plate.

Can an Alumission post sit on top of the cover?

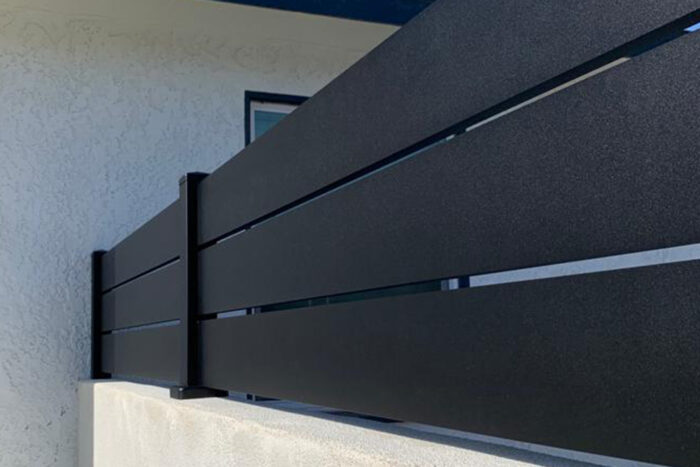

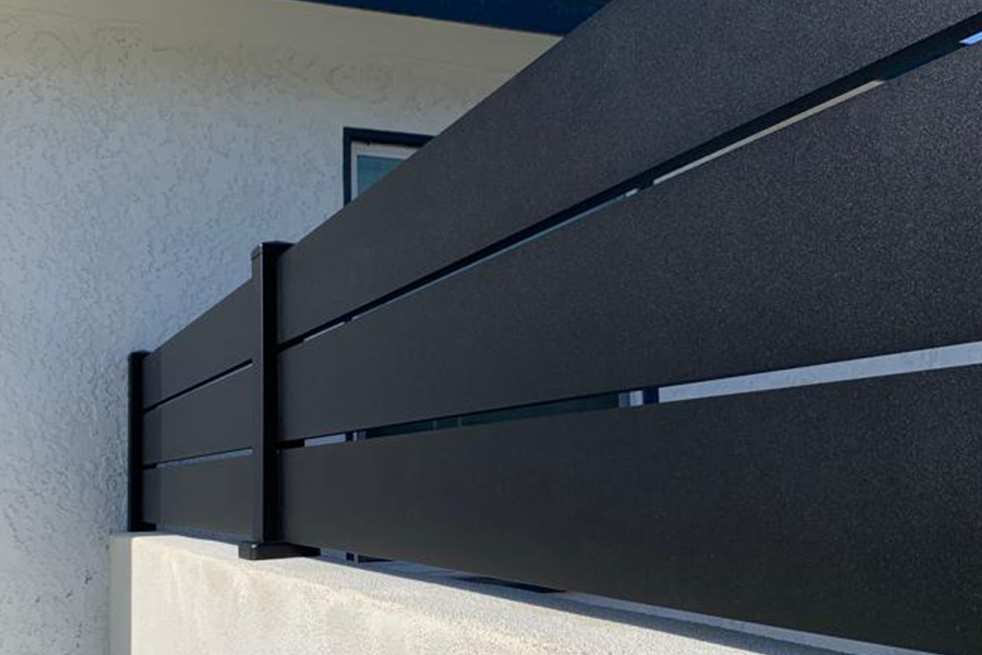

Yes. Place the cover over the base assembly first, then slide the compatible post over the steel stem so the post sits on top of the cover.

Can it be used with any Alumission post?

It can be used with Alumission posts installed on the compatible base plate and 1-1/4″ × 1-1/4″ steel stem assembly. Verify the complete assembly before installation.

What are the overall dimensions?

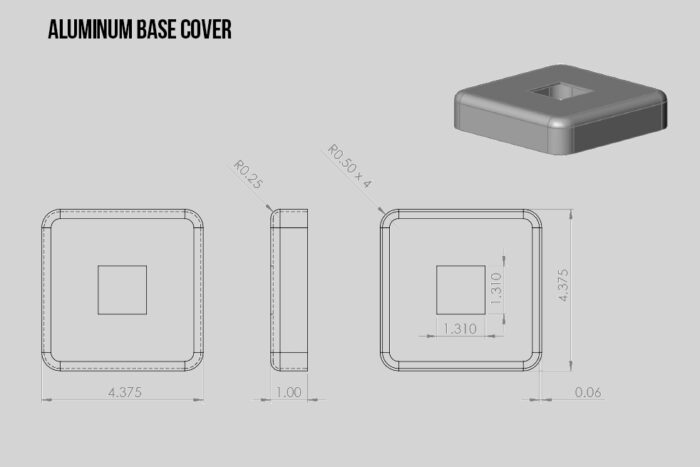

The cover measures 4.375″ wide by 4.375″ deep and 1.00″ high.

What size is the center opening?

The center opening measures 1.310″ × 1.310″.

In what order should the parts be installed?

Secure the base plate with the required anchors, place the cover over the plate and steel stem, then install the Alumission post over the stem so it sits on the cover.

Are the four screws or anchor bolts included?

No. Fasteners are sold separately because the correct type and size depend on the base plate, mounting surface, loads, and project requirements.

Should I dry-fit the assembly first?

Yes. Verify the base plate, cover opening, steel stem, post, and fastener clearances before final anchoring.

What colors are available?

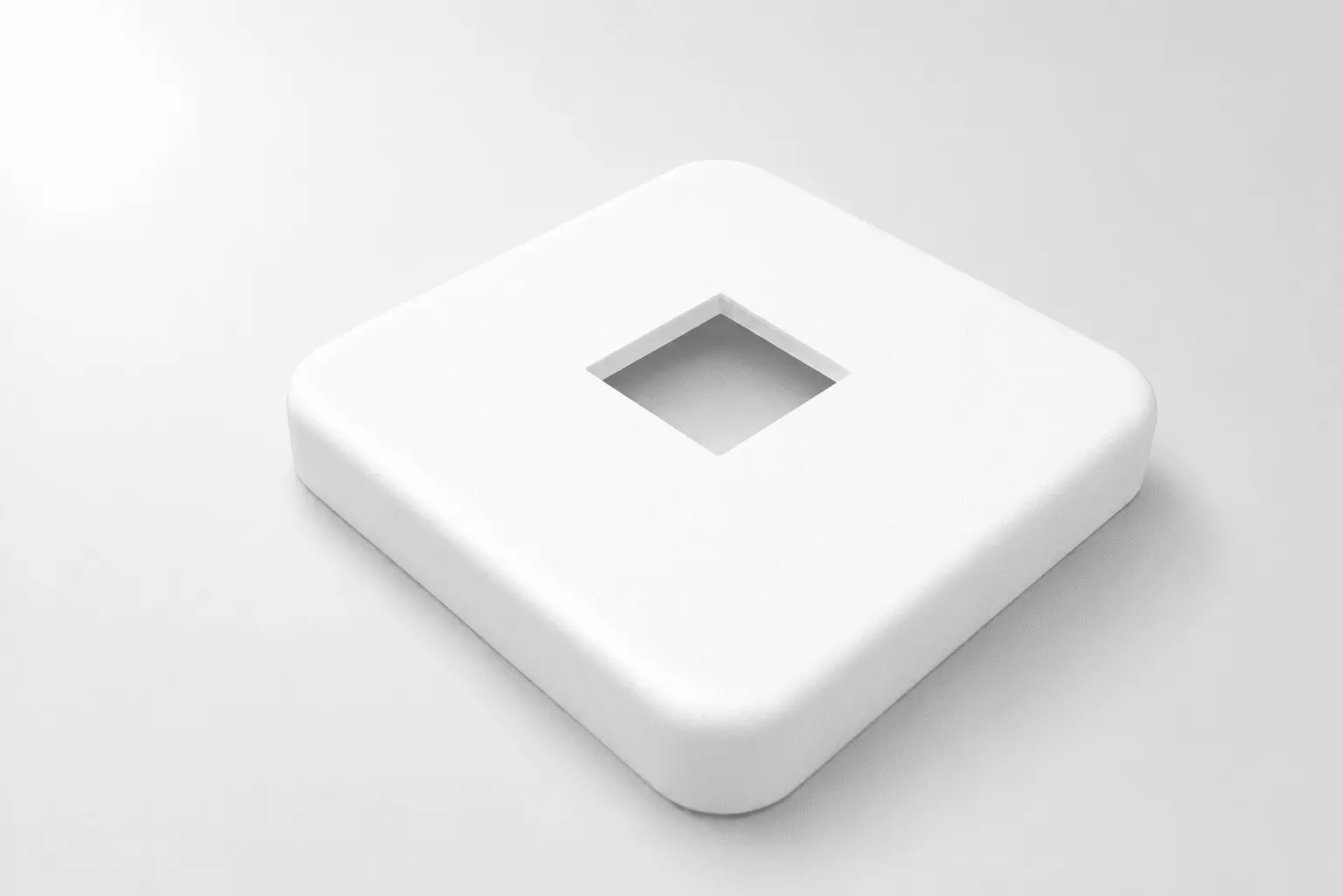

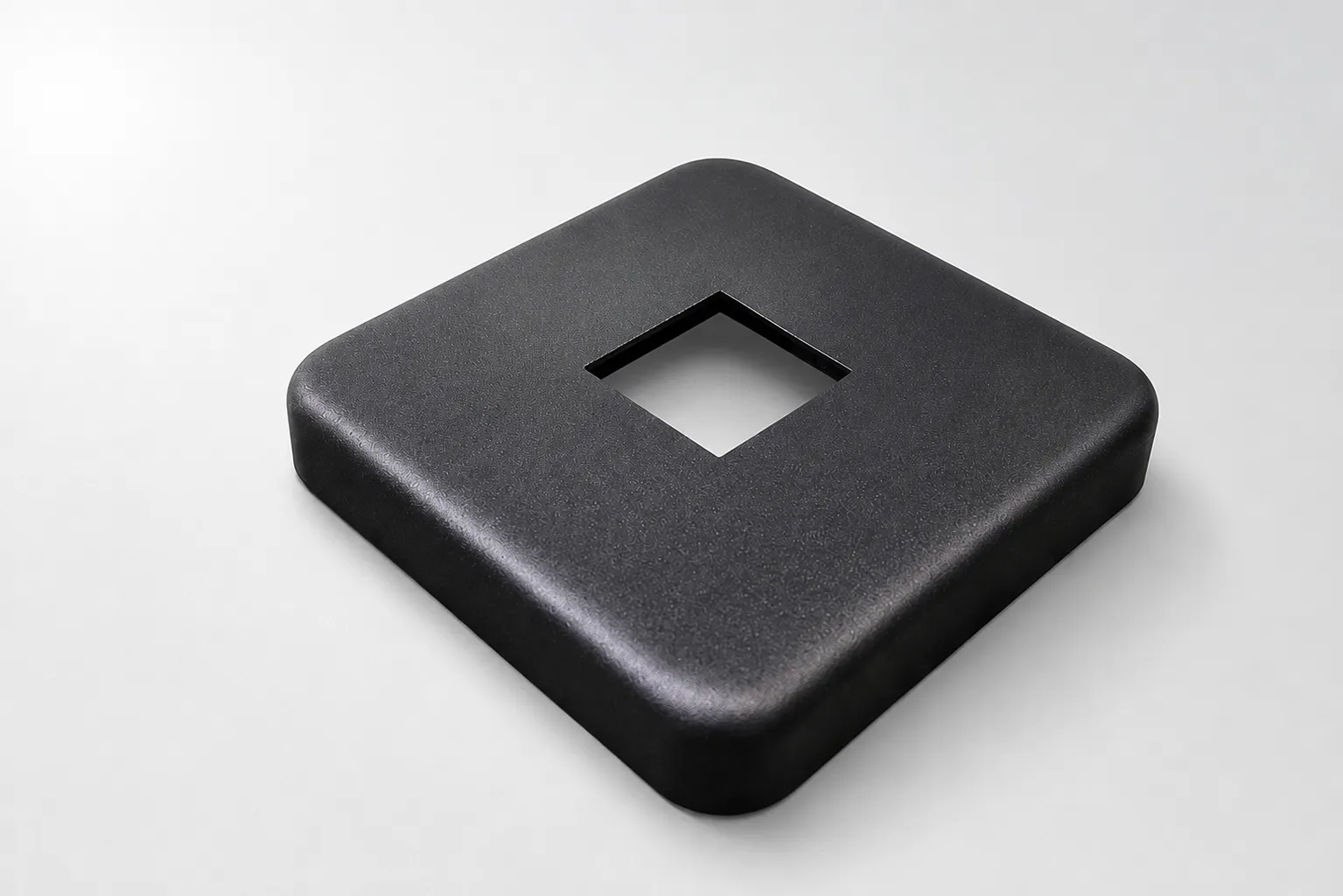

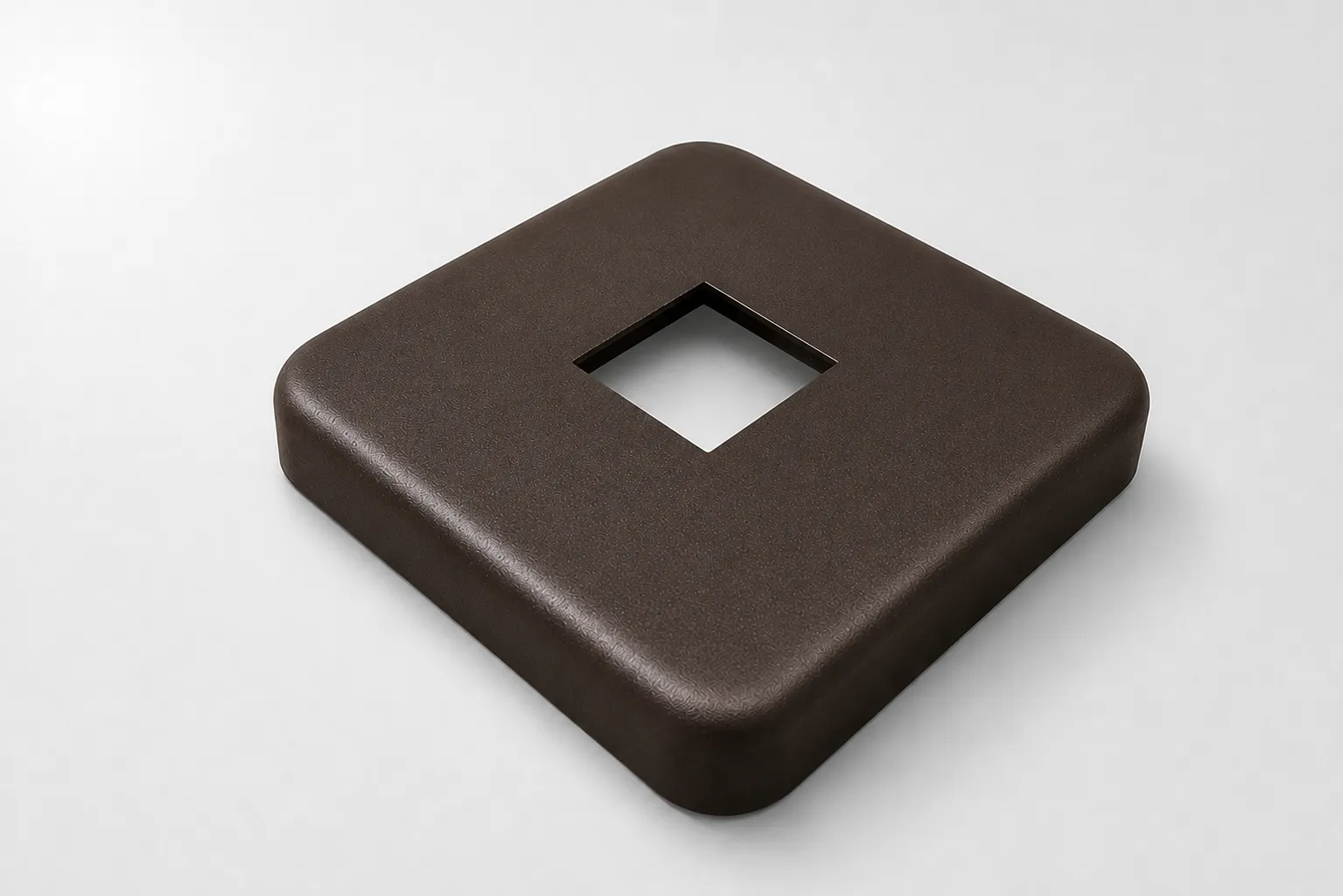

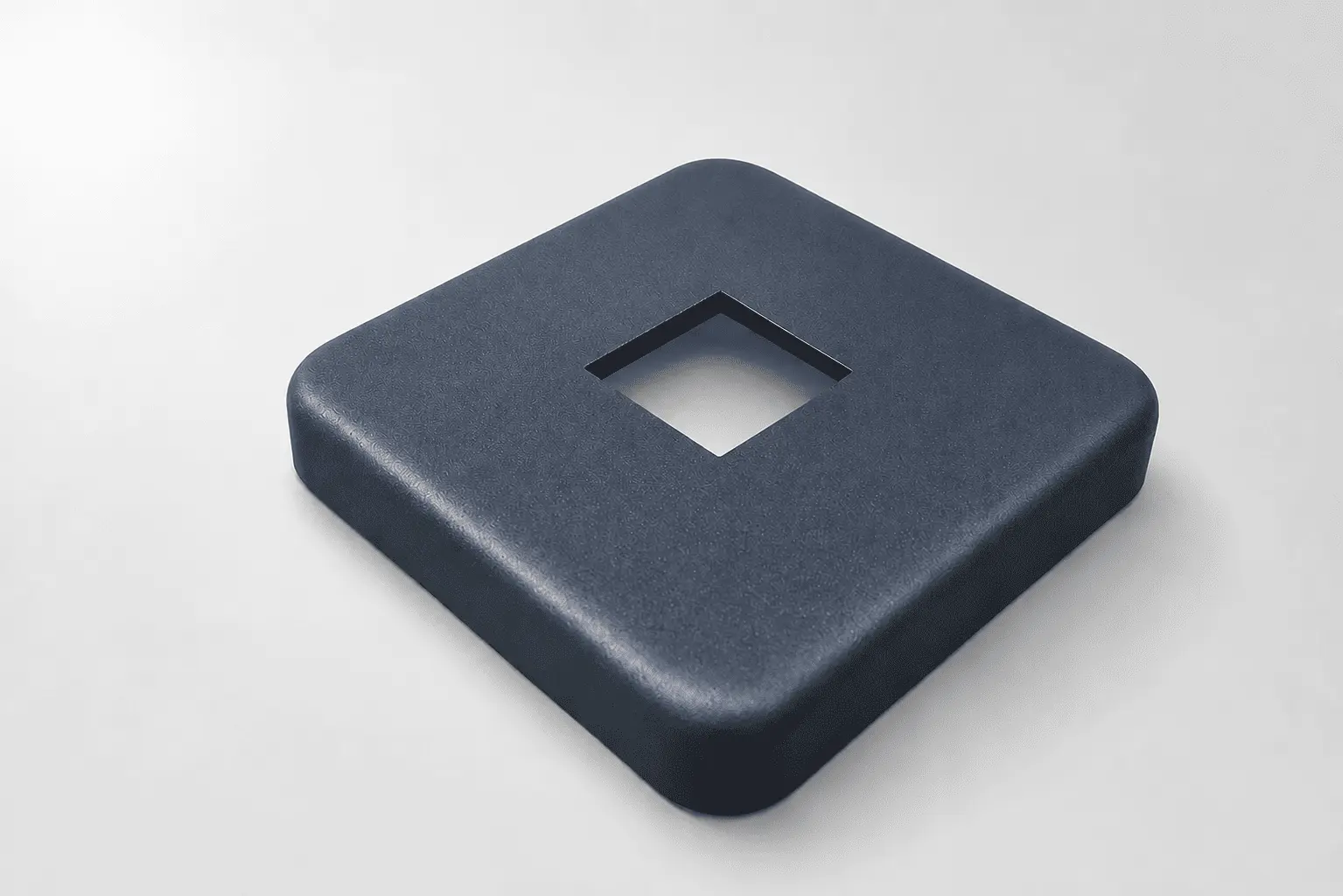

Available finishes are Black, Bronze, White, Dark Gray, and Light Gray.

Will the cover match the post color?

Select the same powder-coated finish as the post for a coordinated appearance.

What is included with this product?

The product includes one Aluminum Base Cover in the selected finish. The base plate, steel stem, post, fasteners, and installation hardware are sold separately.
